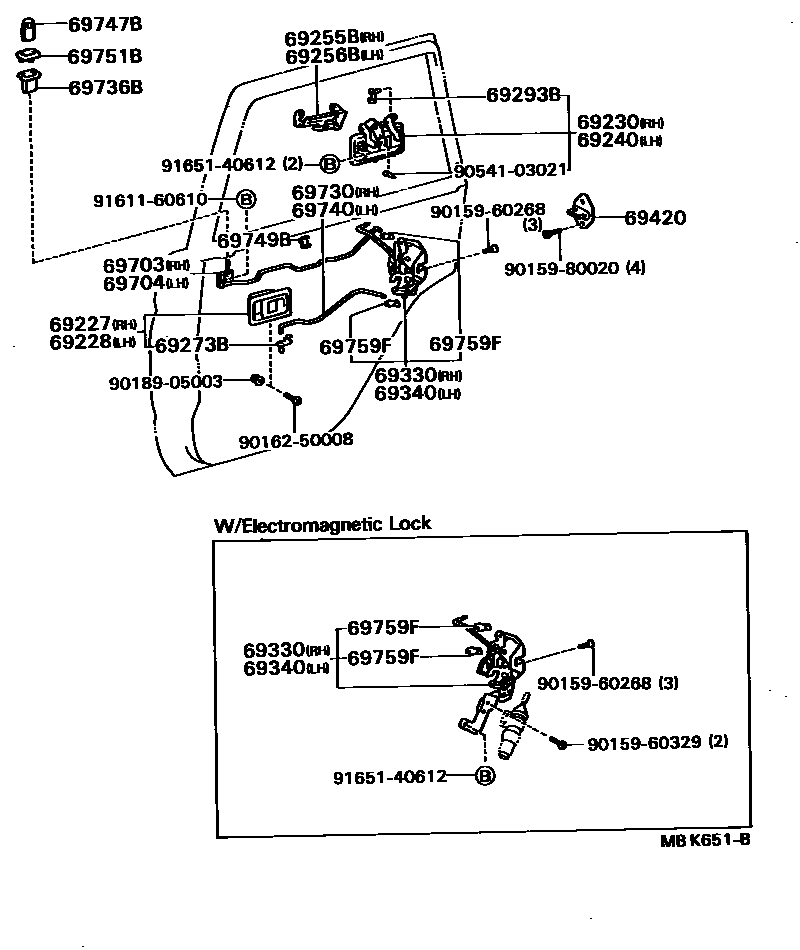

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69207-10020-01iEL3#,NL30..5DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69207-10020

main69207-10020-05iEL3#,NL30..5DS198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69207-10020

main69207-10020-14iEL3#,NL30..5DS198605-198805

BLUE,BLUE,TRIM8#

sub69207-10020

main69207-10040-01iEL3#,NL30..5DS198605-198805

COLD SPEC,BLACK,NEW BLACK,TRIM2#

sub69207-10020

main69207-10040-05iEL3#,NL30..5DS198605-198805

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

sub69207-10020

main69207-10040-14iEL3#,NL30..5DS198605-198805

COLD SPEC,BLUE,BLUE,TRIM8#

sub69207-10020

69228HANDLE, REAR DOOR INSIDE, LH

main69208-10020-01iEL3#,NL30..5DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69208-10020

main69208-10020-05iEL3#,NL30..5DS198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69208-10020

main69208-10020-14iEL3#,NL30..5DS198605-198805

BLUE,BLUE,TRIM8#

sub69208-10020

main69208-10040-01iEL3#,NL30..5DS198605-198805

COLD SPEC,BLACK,NEW BLACK,TRIM2#

sub69208-10020

main69208-10040-05iEL3#,NL30..5DS198605-198805

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

sub69208-10020

main69208-10040-14iEL3#,NL30..5DS198605-198805

COLD SPEC,BLUE,BLUE,TRIM8#

sub69208-10020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-16030iEL3#,NL30..5DS198605-198805

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-16030iEL3#,NL30..5DS198605-198805

69255BPROTECTOR, DOOR OUTSIDE HANDLE, RH

main69255-16010iEL3#,NL30..5DS198605-198805

69256BPROTECTOR, DOOR OUTSIDE HANDLE, LH

main69256-16010iEL3#,NL30..5DS198605-198805

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69759-20060iEL3#,NL30..5DS198605-198805

RH

main69759-20070iEL3#,NL30..5DS198605-198805

LH

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iEL3#,NL30..5DS198605-198805

RH

main69293-12040iEL3#,NL30..5DS198605-198805

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-16091iEL3#,NL30..5DS198605-198805

sub69330-16101

main69330-16101iEL31,NL30..5DS..ZX198605-198805

W/*EL

69340LOCK ASSY, REAR DOOR, LH

main69340-16091iEL3#,NL30..5DS198605-198805

sub69340-16101

main69340-16101iEL31,NL30..5DS..ZX198605-198805

W/*EL

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iEL3#,NL30..5DS198605-198805

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-16050iEL3#,NL30..5DS198605-198805

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-16050iEL3#,NL30..5DS198605-198805

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-16030iEL3#,NL30..5DS198605-198805

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iEL3#,NL30..5DS198605-198805

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-16030iEL3#,NL30..5DS198605-198805

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-90K00-01iEL3#,NL30..5DS198605-198805

BLACK,BLACK,TRIM2#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iEL3#,NL30..5DS198605-198805

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-12010-05iEL30,NL30..5DS..(GL,TX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69751-12010

main69751-12010-11iEL30,NL30..5DS..(GL,TX)198605-198805

BLACK,BLACK,TRIM2#

sub69751-12010

main69751-12010-14iEL30,NL30..5DS..(GL,TX)198605-198805

BLUE,BLUE,TRIM8#

sub69751-12010

main69751-20060-11iEL3#,NL30..5DS..(LIM,ZX)198605-198805

BLACK,BLACK,TRIM2#

sub69751-20060

sub69751-12030

main69751-20060-24iEL3#,NL30..5DS..(LIM,ZX)198605-198805

BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-25iEL3#,NL30..5DS..(LIM,ZX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69751-20060

sub69751-12030

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iEL3#,NL30..5DS198605-198805

LH

main69759-20050iEL3#,NL30..5DS198605-198805

RH

9015960268

main90159-60268

9015960329

main90159-60329

9015980020

main90159-80020

9016250008

main90162-50008

9018905003

main90189-05003

9054103021

main90541-03021

9161160610

main91611-60610

9165140612

main91651-40612

28 parts on this diagram · 1 diagram in section
