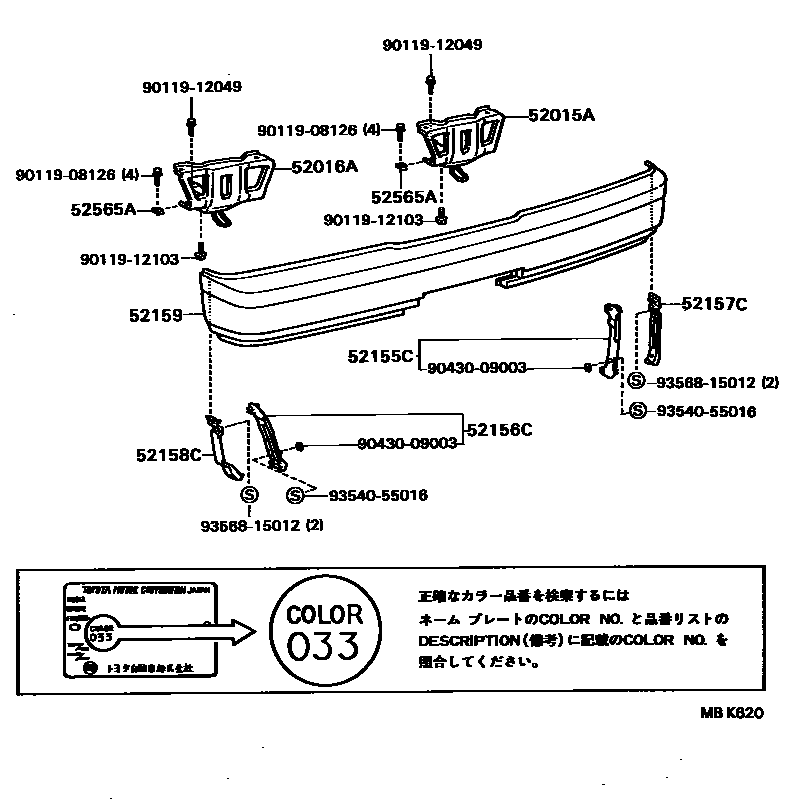

Toyota COROLLA 2 — REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52565ARETAINER, REAR BUMPER, LOWER
9011908126
9011912049
9011912103
9043009003
9354055016
9356815012
14 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota COROLLA 2
This section contains 14 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota COROLLA 2. Key components include: ARM SUB-ASSY, REAR BUMPER, RH, ARM SUB-ASSY, REAR BUMPER, LH, SUPPORT, REAR BUMPER SIDE, NO.1 RH, SUPPORT, REAR BUMPER SIDE, NO.1 LH, SUPPORT, REAR BUMPER SIDE, NO.2 RH.
