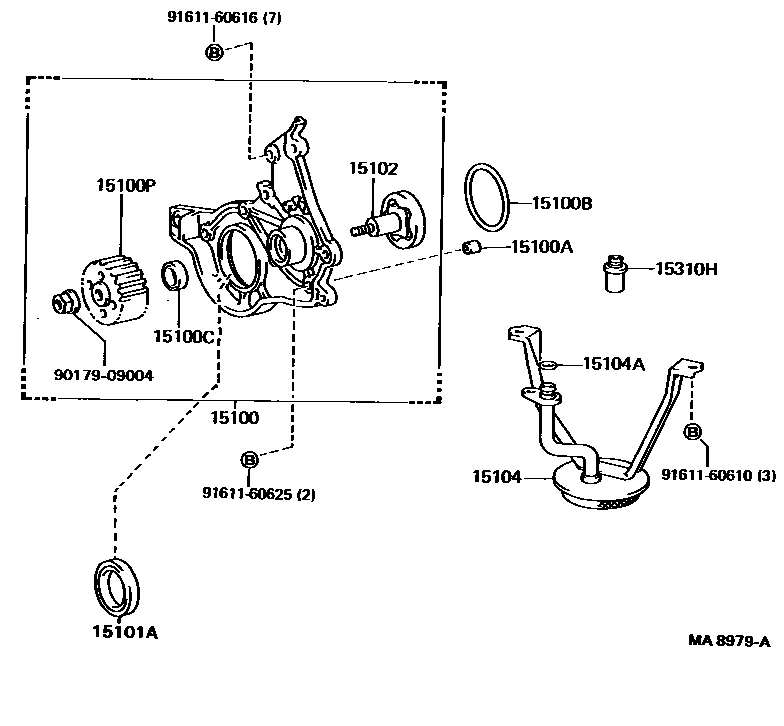

Toyota COROLLA 2 — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100PPULLEY, OIL PUMP DRIVE SHAFT
15101ASEAL(FOR CRANKSHAFT)
15104ARING, O(FOR OIL STRAINER)
15310HREGULATOR ASSY, OIL
9017909004
9161160610
9161160616
9161160625
14 parts on this diagram · 2 diagrams in section
ENGINE OIL PUMP for Toyota COROLLA 2
This section contains 21 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA 2. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), PULLEY, OIL PUMP DRIVE SHAFT.
