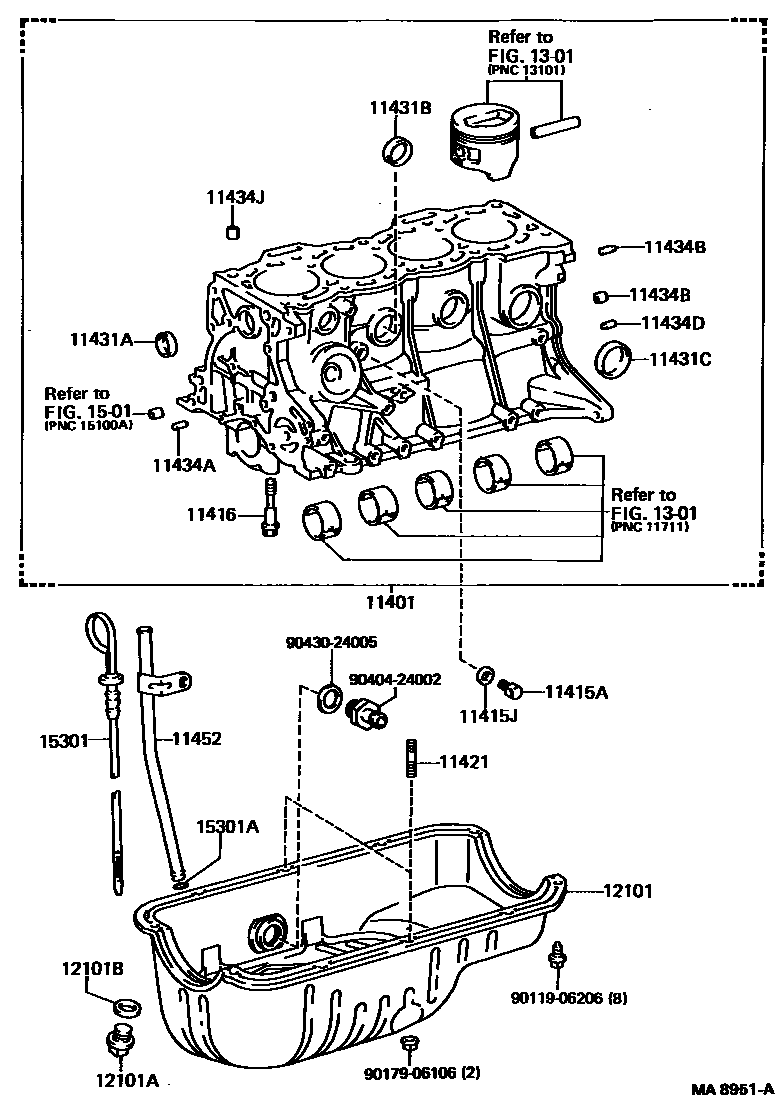

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19298i2E..EL30198605-198805

main11401-19308i2E..EL30..3DS..4F..TX198605-198805

*52

main11401-19365i3ETE..EL31198609-198805

main11401-19375i3E..EL31198605-198805

main11401-59325i1NT..NL30198605-198610

main11401-59326i1NT..NL30198610-198805

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i1NT..NL30198605-198805

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012×2i2E,3E#..EL3#198605-198805

main90910-09087i1NT..NL30198605-198805

11415JGASKET(FOR DRAIN COCK)

main90430-13002×2i2E,3E#..EL3#198605-198805

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i3E#..EL31198605-198805

main90105-10153×10i1NT..NL30198605-198805

main90910-02019×10i2E..EL30198605-198805

11421BOLT, STUD(FOR OIL PAN)

main90116-06014×2i2E,3E#..EL3#198605-198805

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42000×2i1NT..NL30198605-198805

main96411-42500×2i2E,3E#..EL3#198605-198805

OD=25

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×6i1NT..NL30; 2E,3E#..EL3#198605-198805

OD=30

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500×5i1NT..NL30; 2E,3E#..EL3#198605-198805

OD=35

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i1NT..NL30198605-198805

main90250-06068i2E,3E#..EL3#198605-198805

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i1NT..NL30; 2E,3E#..EL3#198612-198805

main90250-10052i1NT..NL30; 2E,3E#..EL3#198605-198612

main90253-15001i2E,3E#..EL3#198605-198712

main90253-15003i2E,3E#..EL3#198712-198805

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i2E,3E#..EL3#198605-198805

main90253-10005×2i1NT..NL30198605-198805

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001×2i2E,3E#..EL3#198605-198805

main90253-14001×2i1NT..NL30198605-198805

11452GUIDE, OIL LEVEL GAGE

main11452-10010i2E,3E#..EL3#198605-198805

main11452-55010i1NT..NL30198605-198805

12101PAN SUB-ASSY, OIL

main12101-10010i2E..EL30198605-198805

main12101-11030i3E..EL31198605-198805

main12101-11040i3ETE..EL31198609-198805

main12101-55010i1NT..NL30198605-198805

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NT..NL30; 2E,3E#..EL3#198605-198805

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i1NT..NL30; 2E,3E#..EL3#198605-198803

main90430-12019i1NT..NL30; 2E,3E#..EL3#198803-198805

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-10021i2E..EL30198605-198805

main15301-11010i3E#..EL31198605-198805

main15301-55010i1NT..NL30198605-198805

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i2E,3E#..EL3#198605-198805

9011906206

main90119-06206

9017906106

main90179-06106

9040424002

main90404-24002

9043024005

main90430-24005

25 parts on this diagram · 2 diagrams in section
