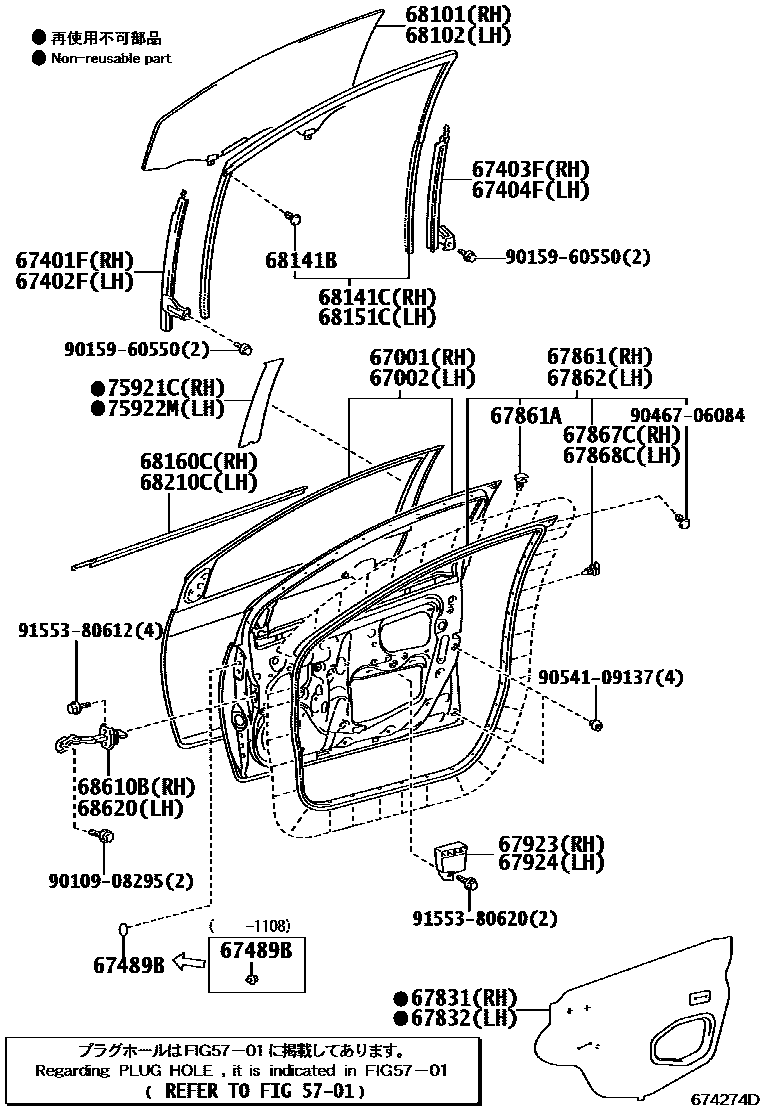

FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52400iKSP92,NCP96,SCP92200808-201206

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52400iKSP92,NCP96,SCP92200511-200808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52110iKSP92,NCP96,SCP92200511-200808

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52100iKSP92,NCP96,SCP92200511-200808

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52190iKSP92,NCP96,SCP92200511-200808

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52160iKSP92,NCP96,SCP92200511-200808

67489BPACKING, FRONT DOOR LOWER COVER

main67489-52020×2iKSP92,NCP96,SCP92200511-200808

main90950-06105×2iKSP92,NCP96,SCP92201109-201206

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52330iKSP92,NCP96,SCP92200511-200603

main67831-52331iKSP92,NCP96,SCP92200604-200808

main67831-52332iKSP92,NCP96,SCP92200809-201108

main67831-52333iKSP92,NCP96,SCP92201109-201206

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52230iKSP92,NCP96,SCP92200511-200603

main67832-52231iKSP92,NCP96,SCP92200604-200808

main67832-52232iKSP92,NCP96,SCP92200809-201108

main67832-52233iKSP92,NCP96,SCP92201109-201206

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52200iKSP92,NCP96,SCP92200511-200808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52020×12iKSP92,NCP96,SCP92200511-200808

main67867-52030×12iKSP92,NCP96,SCP92200511-200808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52190iKSP92,NCP96,SCP92200511-200808

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iKSP92,NCP96,SCP92200808-201206

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iKSP92,NCP96,SCP92200511-200808

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52160iKSP92,NCP96,SCP92200511-200808

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-52170iKSP92,NCP96,SCP92200511-200808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52270iKSP92,NCP96,SCP92200808-201206

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52270iKSP92,NCP96,SCP92200511-200808

68141BCLIP, DOOR GLASS RUN

main90467-06084×2iKSP92,NCP96,SCP92200511-200808

68141CRUN, FRONT DOOR GLASS, RH

main68141-52190iKSP92,NCP96,SCP92200511-200808

68151CRUN, FRONT DOOR GLASS, LH

main68151-52180iKSP92,NCP96,SCP92200511-200808

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52150iKSP92,NCP96,SCP92200511-200808

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52150iKSP92,NCP96,SCP92200808-201206

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52100iKSP92,NCP96,SCP92200511-200808

main68610-52101iKSP92,NCP96,SCP92201006-201206

68620CHECK ASSY, FRONT DOOR, LH

main68610-52100iKSP92,NCP96,SCP92200511-200808

main68610-52101iKSP92,NCP96,SCP92201006-201206

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52090iKSP92,NCP96,SCP92; KSP92,NCP96,SCP92..X200511-200808

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52090iKSP92,NCP96,SCP92; KSP92,NCP96,SCP92..X200511-200808

9010908295

main90109-08295

9015960550

main90159-60550

9046706084

main90467-06084

9054109137

main90541-09137

9155380612

main91553-80612

9155380620

main91553-80620

34 parts on this diagram · 2 diagrams in section
