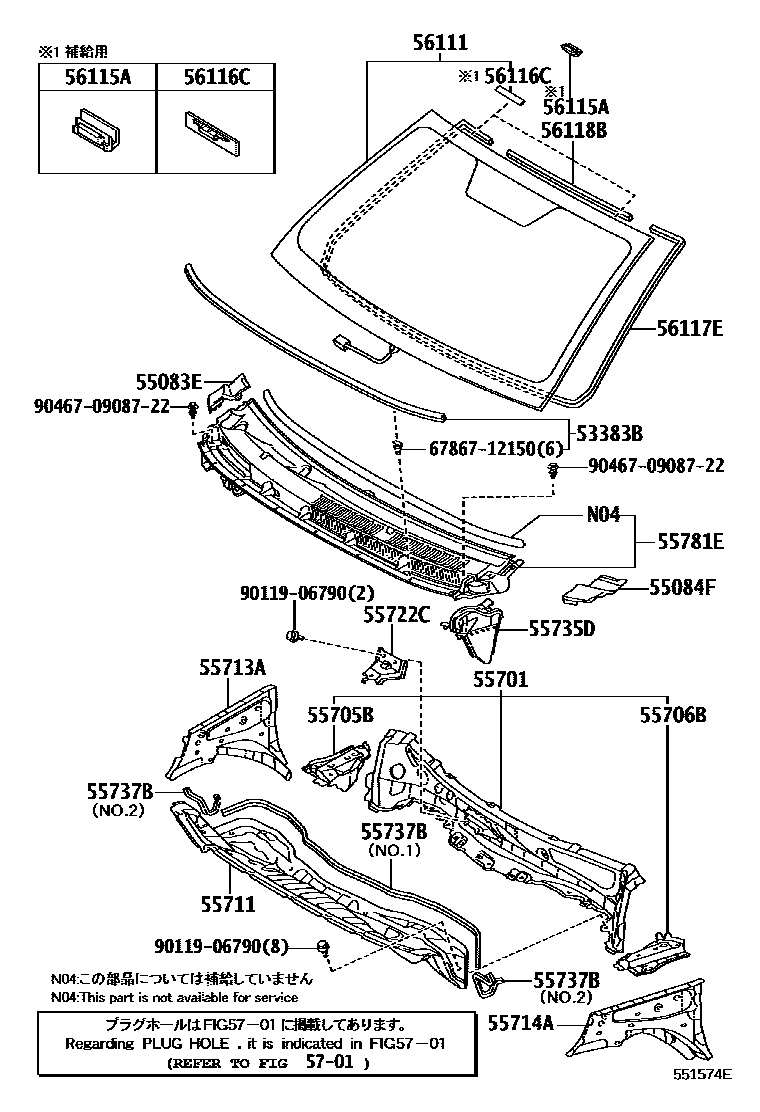

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52100iKSP92,NCP96,SCP92200511-201206

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-52080iKSP92,NCP96,SCP92200511-201206

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-52010iKSP92,NCP96,SCP92200511-201206

55701PANEL SUB-ASSY, COWL

main55700-52240iKSP92,NCP96,SCP92200511-201206

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52110iKSP92,NCP96,SCP92200511-201206

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52110iKSP92,NCP96,SCP92200511-201206

55711PANEL, COWL TOP, OUTER

main55701-52210iKSP92,NCP96,SCP92200511-201206

55713APANEL, COWL TOP SIDE, RH

main55713-52090iKSP92,NCP96,SCP92200511-201206

55714APANEL, COWL TOP SIDE, LH

main55714-52090iKSP92,NCP96,SCP92200511-201206

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52050iKSP92,NCP96,SCP92200511-201206

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52040iKSP92,NCP96,SCP92200511-201206

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iKSP92,NCP96,SCP92200511-201206

main55737-52050iKSP92,NCP96,SCP92200511-201206

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52080iKSP92,NCP96,SCP92200511-201206

56111GLASS, WINDSHIELD

main56101-52310iKSP92,NCP96,SCP92200511-200901

sub56101-52311

main56101-52311iKSP92,NCP96,SCP92200902-201206

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKSP92,NCP96,SCP92200511-201206

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKSP92,NCP96,SCP92200511-201206

56117EDAM, WINDOW GLASS ADHESIVE

main56117-52150iKSP92,NCP96,SCP92200511-201206

sub56117-64010

main56117-52150iKSP92,NCP96,SCP92200511-201206

sub56117-64010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52100iKSP92,NCP96,SCP92200511-201206

sub56117-74010

main56118-52100iKSP92,NCP96,SCP92200511-201206

sub56117-74010

5701

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906790

main90119-06790

904670908722

main90467-0908722

22 parts on this diagram · 1 diagram in section
