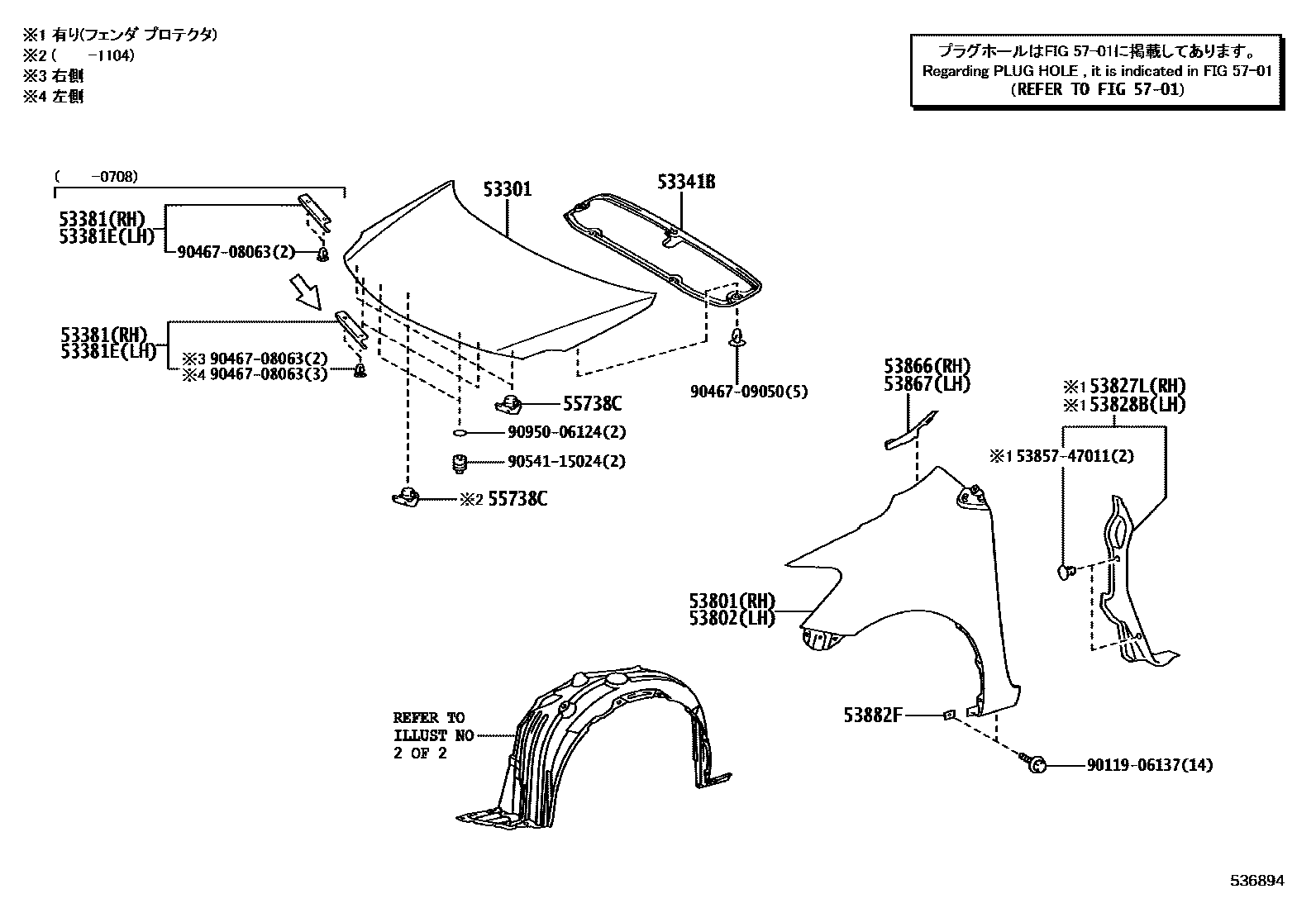

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52260iKSP92,NCP96,SCP92200511-200612

main53301-52261iKSP92,NCP96,SCP92200701-200808

53341BINSULATOR, HOOD

main53341-52140iKSP92,NCP96,SCP92200511-200808

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52040iKSP92,NCP96,SCP92200511-200708

main53381-52050iKSP92,NCP96,SCP92200708-200808

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-52040iKSP92,NCP96,SCP92200511-200808

53801FENDER SUB-ASSY, FRONT RH

main53811-52230iKSP92,NCP96,SCP92200808-201206

main53811-52240iKSP92,NCP96,SCP92200511-200808

53802FENDER SUB-ASSY, FRONT LH

main53812-52230iKSP92,NCP96,SCP92200808-201206

main53812-52240iKSP92,NCP96,SCP92200511-200808

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52120iKSP92,NCP96,SCP92..X; NCP96,SCP92..G200808-201206

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52140iKSP92,NCP96,SCP92..X; NCP96,SCP92..G200808-201206

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52120iKSP92,NCP96,SCP92200511-200808

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52110iKSP92,NCP96,SCP92200511-200808

53882FSEAL, FRONT FENDER

main53882-16030×8iKSP92,NCP96,SCP92200511-200807

55738CSTOPPER, HOOD, RH

main55738-52050×3iKSP92,NCP96,SCP92200511-200808

5701HOLE PLUG

→ Go to FIG 57-01

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

9011906137

main90119-06137

9046708063

main90467-08063

9046709050

main90467-09050

9054115024

main90541-15024

9095006124

main90950-06124

19 parts on this diagram · 2 diagrams in section
