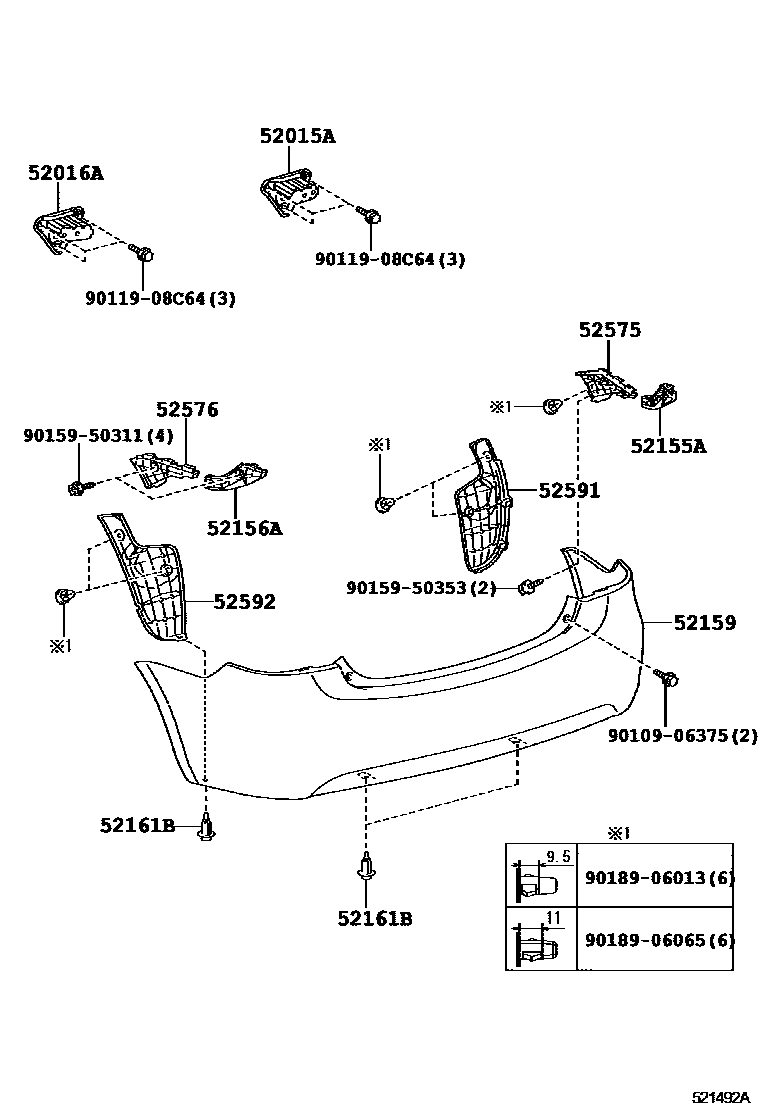

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE,068
WHITE PEARL CS.,070
SUPER WHITE 2,040
DK.GRAY MC.,1E0
SILVER M.M.,1E7
SILVER ME.,1F7
RED M.M.,3R3
LT.OLIVE ME.,6U4
TURQUOISE ME.,777
GRAYISH BLUE ME.,8R3
BLUE ME.,8N0
52161BPIECE, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
9010906375
main90109-06375
9011908C64
main90119-08C64
9015950311
main90159-50311
9015950353
main90159-50353
9018906013
main90189-06013
9018906065
main90189-06065
16 parts on this diagram · 1 diagram in section
