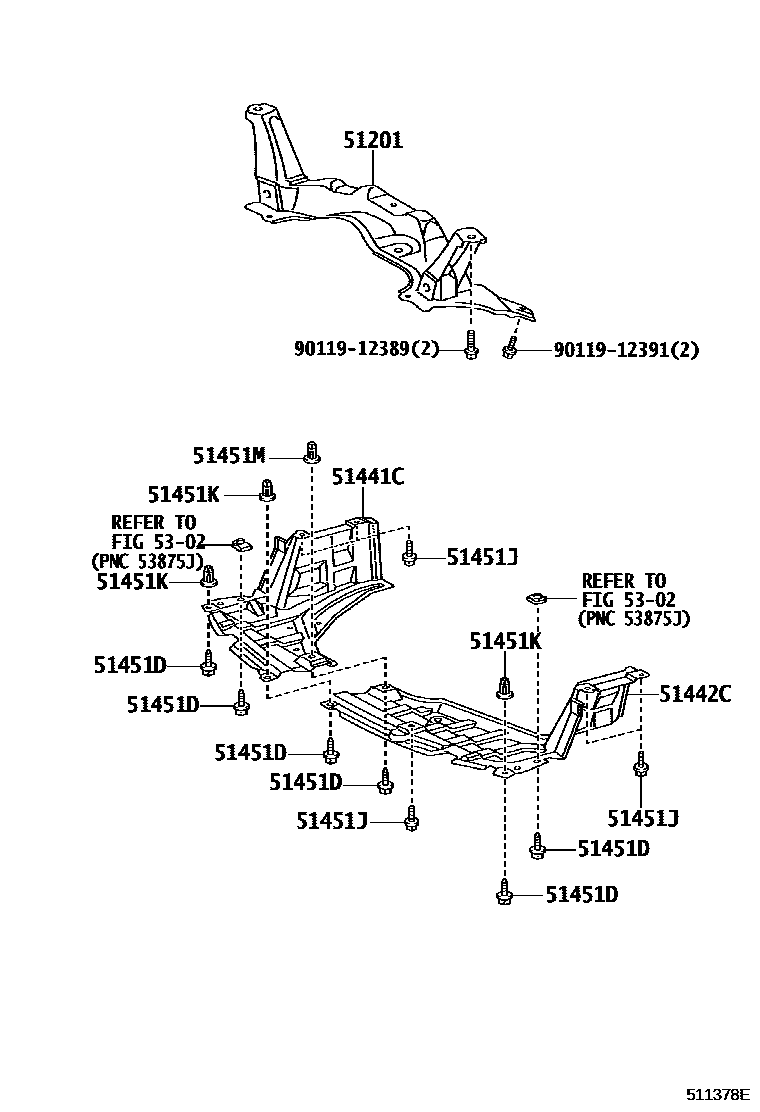

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iKSP92,SCP92200808-201101

main51201-52083iKSP92,SCP92201102-201112

main51201-52084iKSP92,SCP92201201-201204

main51201-52085iKSP92,SCP92201205-201206

main51201-52100iNCP96200808-201101

main51201-52103iNCP96201102-201112

main51201-52104iNCP96201201-201204

main51201-52105iNCP96201205-201206

51441CCOVER, ENGINE UNDER, RH

main51441-52130iKSP92,SCP92200511-200612

main51441-52131iKSP92,SCP92200701-200808

main51441-52140iNCP96200511-200612

main51441-52141iNCP96200701-200808

main51441-52240iKSP92,SCP92200808-201206

main51441-52250iNCP96200808-201206

51442CCOVER, ENGINE UNDER, LH

main51442-52080iKSP92,NCP96,SCP92200511-200608

main51442-52081iKSP92,NCP96,SCP92200609-200612

main51442-52082iKSP92,NCP96,SCP92200701-200808

main51442-52110iKSP92,NCP96,SCP92200808-201206

51451DSCREW, NO.1

main90159-60383×6iKSP92,NCP96,SCP92200511-200808

51451JBOLT, NO.1

main90119-06767×5iKSP92,NCP96,SCP92200511-200808

51451KGROMMET, SCREW, NO.1

main90189-06076×3iKSP92,NCP96,SCP92200511-200808

51451MGROMMET, SCREW, NO.2

main90189-06076iKSP92,NCP96,SCP92200511-200808

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011912389

main90119-12389

9011912391

main90119-12391

10 parts on this diagram · 2 diagrams in section
