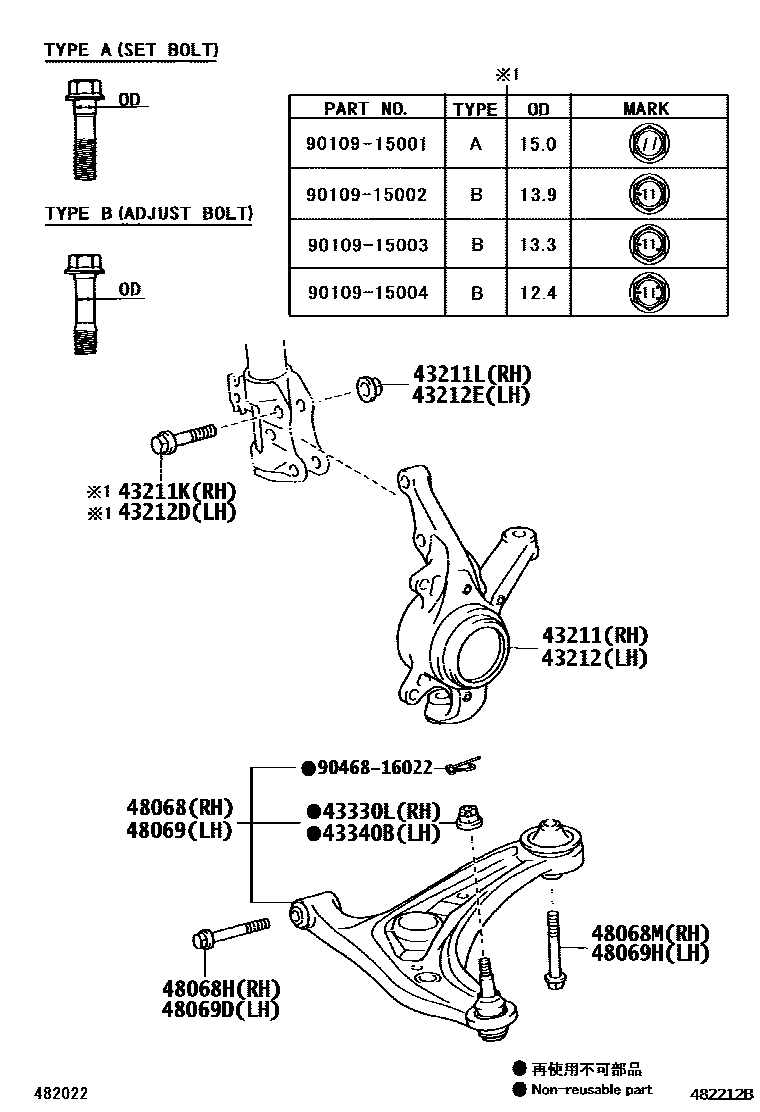

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52050i200808-201206

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001×2i200808-201206

main90109-15002i200808-201206

main90109-15003i200808-201206

main90109-15004i200511-200808

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004×2i200511-200808

43212KNUCKLE, STEERING, LH

main43212-52050i200511-200808

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001×2i200511-200808

main90109-15002i200511-200808

main90109-15003i200808-201206

main90109-15004i200511-200808

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004×2i200511-200808

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200511-200808

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200511-200808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59095i200511-200808

main48068-59135i200811-201009

main48068-59145i201010-201206

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i200511-200808

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14123i201009-201010

main90119-14126i200808-201008

main90119-14144i201008-201009

main90119-14145i201010-201206

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59095i200808-200810

main48069-59125i200811-201009

main48069-59135i201010-201206

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i200808-201206

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14123i200511-200808

main90119-14126i200808-201008

main90119-14144i201008-201009

main90119-14145i201010-201206

9046816022

15 parts on this diagram · 1 diagram in section
