IGNITION COIL & SPARK PLUG / GLOW PLUG

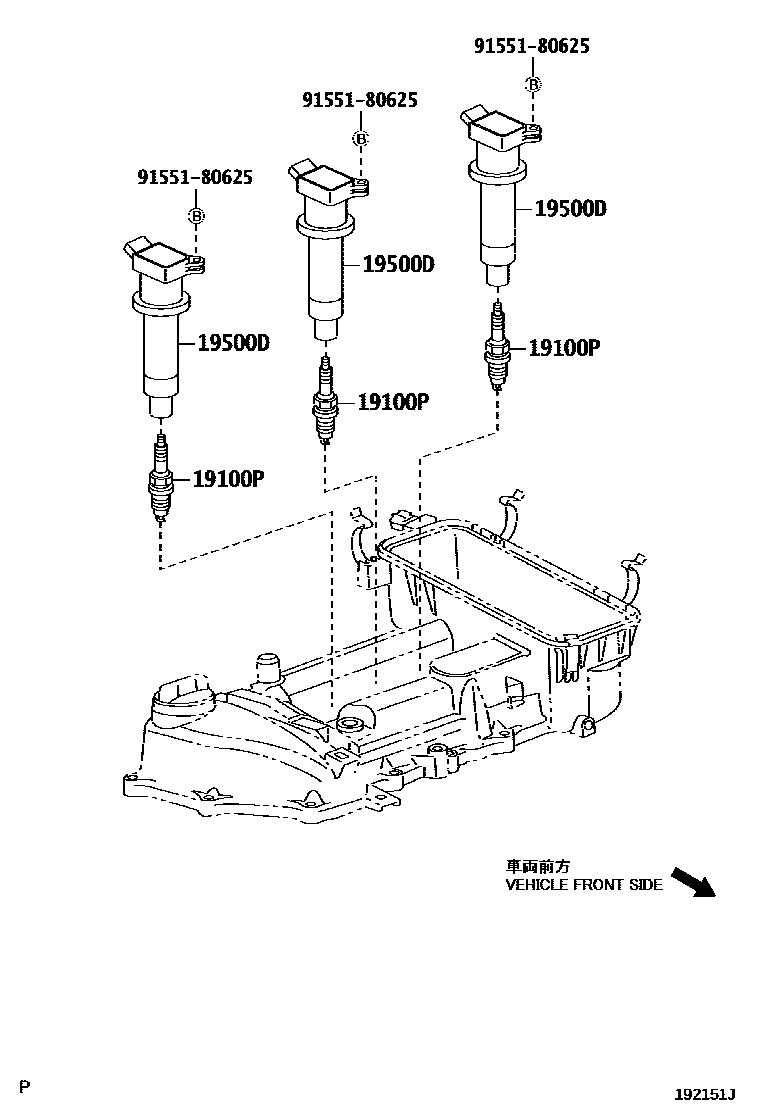

Parts diagram
19100PPLUG, SPARK
main90919-01164i200511-201007
main90919-01191i200511-201112
main90919-01233i200511-201206
main90919-01240i201007-201206
19500COIL ASSY, IGNITION
main90919-02240i200511-201005
main90919-02265i201005-201206
19500DCOIL, IGNITION, NO.1
main90080-19019i200511-201003
sub90919-W2001
main90919-02239i200511-201003
sub90919-02262
main90919-02240i200511-201010
main90919-02262i201003-201206
main90919-02265i201010-201206
9155180625
main91551-80625

4 parts on this diagram · 3 diagrams in section
