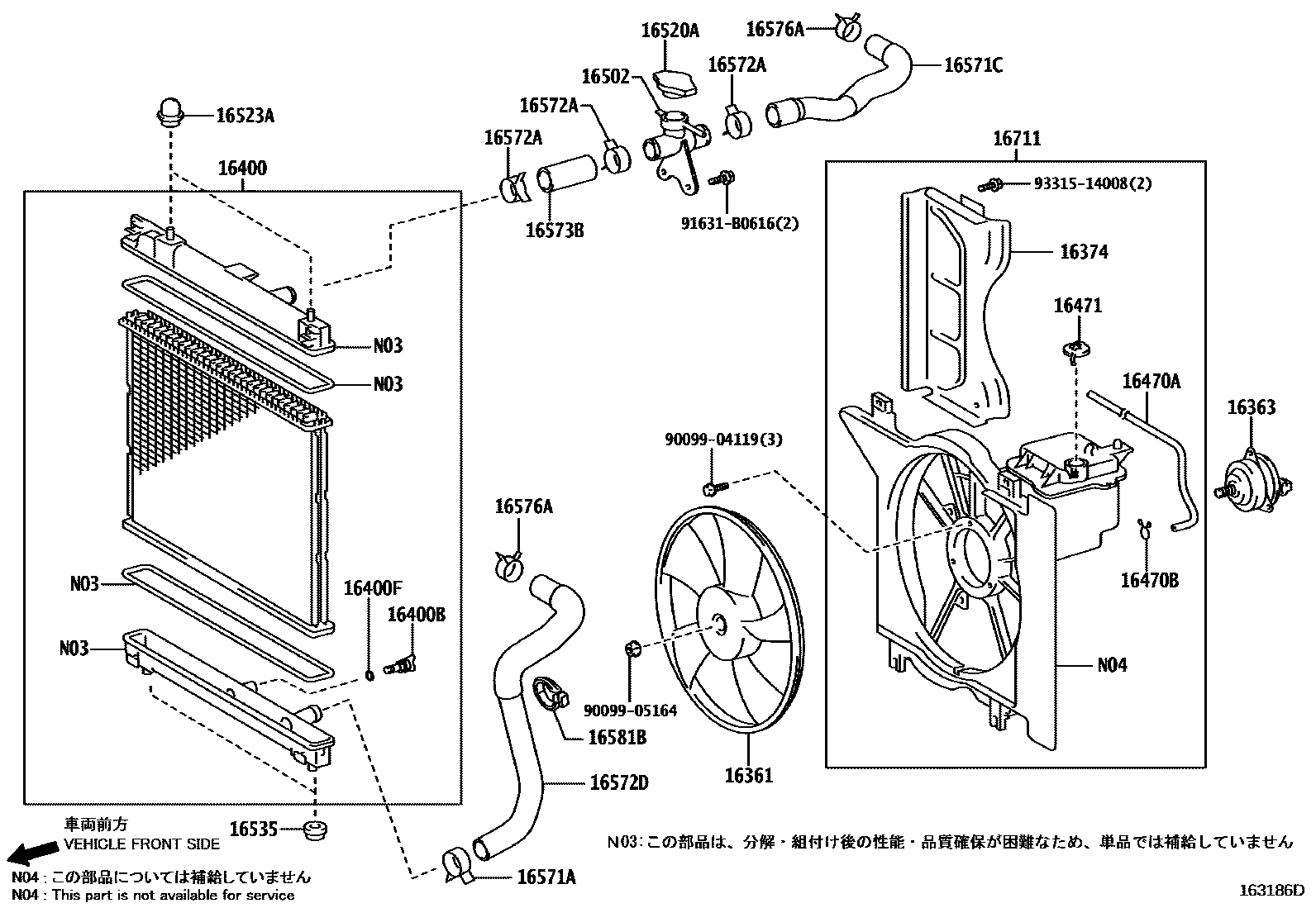

RADIATOR & WATER OUTLET
16363MOTOR, COOLING FAN
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16576ACLIP, RADIATOR HOSE, NO.6
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
9009904119
main90099-04119
9009905164
main90099-05164
91631B0616
main91631-B0616
9331514008
main93315-14008
26 parts on this diagram · 6 diagrams in section
