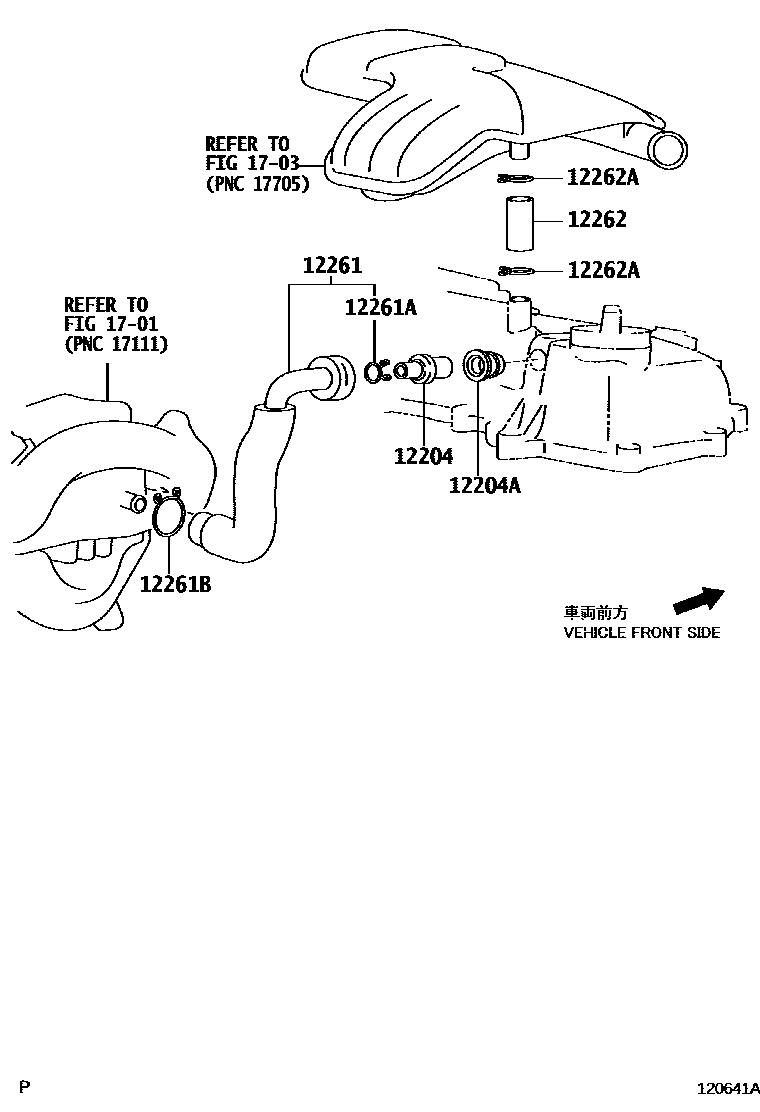

VENTILATION HOSE

0001 1 0002 1 0003 1

12204VALVE SUB-ASSY, VENTILATION

main12204-21011i2NZFE..NCP96200511-200806

main12204-21012i2NZFE..NCP96200806-200808

sub12204-21013

main12204-21012i2NZFE..NCP96200808-201206

sub12204-21013

main12204-23020i2SZFE..SCP92200511-201206

main12204-40030i1KRFE..KSP92200511-201206

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-12019i2SZFE..SCP92200601-201206

main90480-18001i2SZFE..SCP92200511-200512

main90480-18014i1KRFE..KSP92200511-201206

12261HOSE, VENTILATION

main12261-21030i2NZFE..NCP96200511-201206

main12261-23040i2SZFE..SCP92200511-201206

main12261-40020i1KRFE..KSP92200511-201206

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-23003i2NZFE..NCP96200908-201206

main90467-14001i2SZFE..SCP92200511-201206

main90467-15120i1KRFE..KSP92200511-201206

main90467-18003i2SZFE..SCP92200511-201206

main90467-24038i2NZFE..NCP96200511-200908

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main96137-52501i1KRFE..KSP92200511-201206

12262HOSE, VENTILATION, NO.2

main12262-40020i1KRFE..KSP92200511-201206

main90910-05227i2SZFE..SCP92200511-201206

sub90910-05224

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-23002i1KRFE..KSP92200511-201206

1701

1703

9 parts on this diagram · 3 diagrams in section
