HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����� ���� 0002 1����� ����---����� ��� 0003 1�-� ���� 0004 1�-� ����---����� ���

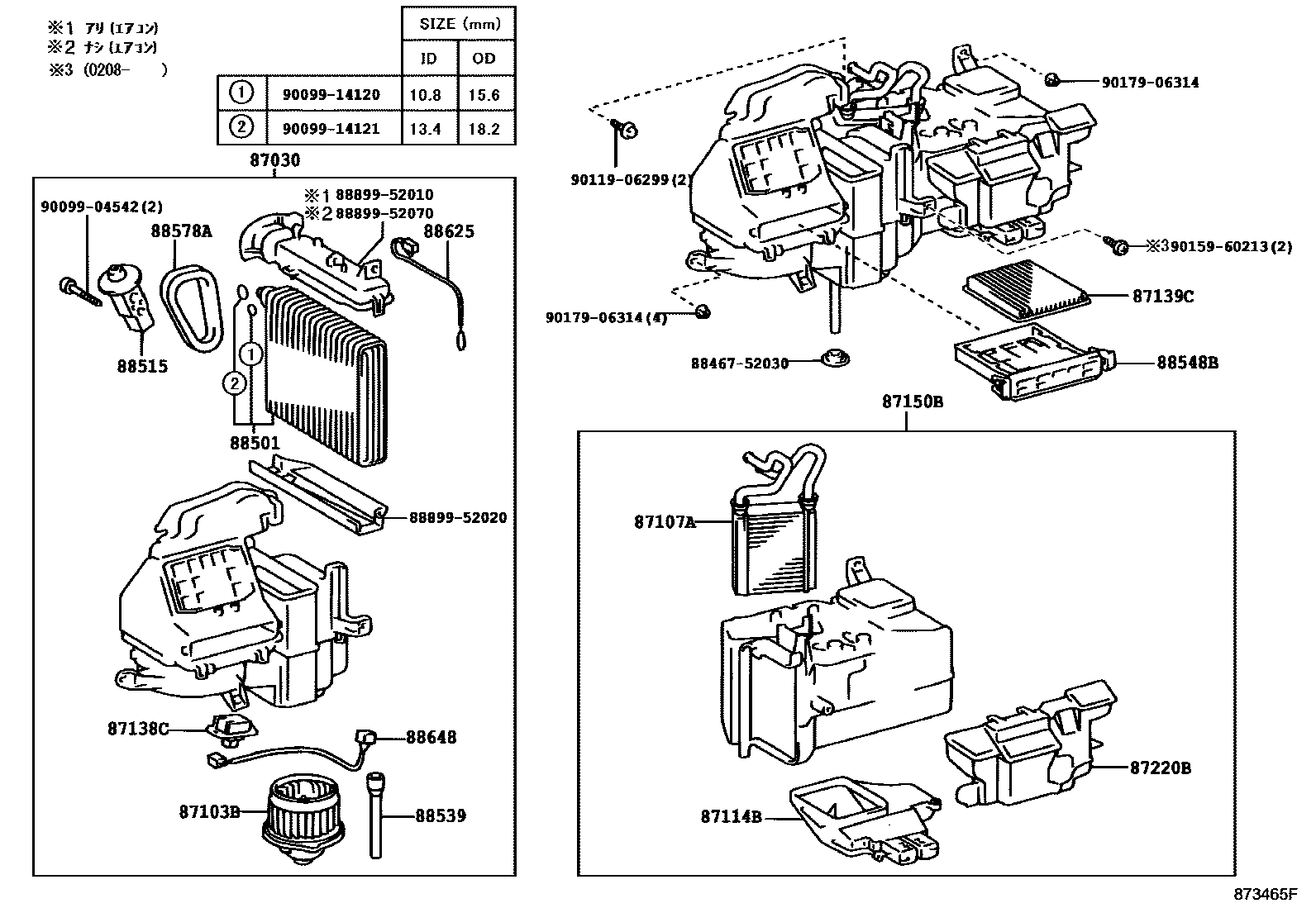

87030BLOWER ASSY, AIR CONDITIONER

main87030-52010iNCP1#,SCP11..F; NCP1#..X200208-200303

main87030-52011iNCP1#..MTM..X;NCP1#,SCP11..F200303-200511

main87030-52020iNCP1#..X200208-200303

main87030-52021iNCP1#..X200303-200511

main87030-52030iSCP11199908-200208

main87030-52040iNCP1#,SCP11..F; NCP1#..X200208-200303

main87030-52041iNCP1#..MTM..X;NCP1#,SCP11..F200303-200511

main87030-52050iNCP1#..X200208-200303

main87030-52051iNCP1#..X200303-200511

main87030-52060iSCP11199908-200208

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52010iNCP1#,SCP11200208-200303

main87103-52030iNCP1#,SCP11199908-200208

main87103-52050iNCP1#,SCP11..F200303-200506

main87103-52070iNCP1#,SCP11200303-200511

main87103-52110iNCP1#,SCP11..F200507-200511

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52010iNCP1#,SCP11199908-200208

87114BCOVER, HEATER

main87114-52010iNCP1#,SCP11199908-200208

main87114-52020iNCP1#,SCP11199908-200208

87138CRESISTOR, BLOWER

main87138-52010iNCP1#,SCP11200008-200208

87139CFILTER, CLEAN AIR

main87139-12010iNCP1#,SCP11200208-200511

main87139-44010iSCP11;NCP1#..ATM;NCP1#..MTM..F200208-200511

main88568-52010iNCP1#,SCP11199908-200208

87150BRADIATOR ASSY, HEATER

main87150-52010iNCP1#..X200208-200308

main87150-52020iNCP12..X;NCP16,SCP11199908-200208

main87150-52030iNCP1#..X200208-200308

main87150-52040iNCP16;NCP12..X199908-200208

main87150-52050iSCP11199908-200208

main87150-52060iSCP11199908-200208

main87150-52240iNCP1#..X200209-200511

main87150-52250iNCP1#..X200209-200511

87220BDUCT ASSY, AIR

main87220-52010iNCP1#,SCP11199908-200208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52010iNCP1#,SCP11199908-200208

main88501-52070iNCP1#,SCP11200303-200511

88515VALVE, COOLER EXPANSION

main88515-52010iNCP1#,SCP11200208-200311

main88515-52040iNCP1#,SCP11199908-200208

main88515-52050iNCP1#..X200312-200511

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-52010iNCP1#,SCP11199908-200208

88548BCASE, AIR FILTER

main88548-52010iNCP1#,SCP11199908-200208

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-52010iSCP11199908-200208

88625THERMISTOR, COOLER, NO.1

main88625-52020iNCP1#..X200208-200303

main88625-52070iNCP1#,SCP11200211-200303

main88625-52090iNCP1#..X200303-200308

main88625-52100iNCP1#..MTM..X200303-200308

88648WIRING, COOLER, NO.1

main88648-52020iNCP1#..ATM..X200208-200308

main88648-52050iNCP12..X;NCP16,SCP11199908-200208

main88648-52240iNCP1#,SCP11..F200507-200511

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8889952010COVER, EVAPORATOR

main88899-52010

8889952020COVER, EVAPORATOR

main88899-52020

8889952070COVER, EVAPORATOR

main88899-52070

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906299

main90119-06299

9015960213

main90159-60213

9017906314

main90179-06314

25 parts on this diagram · 4 diagrams in section
