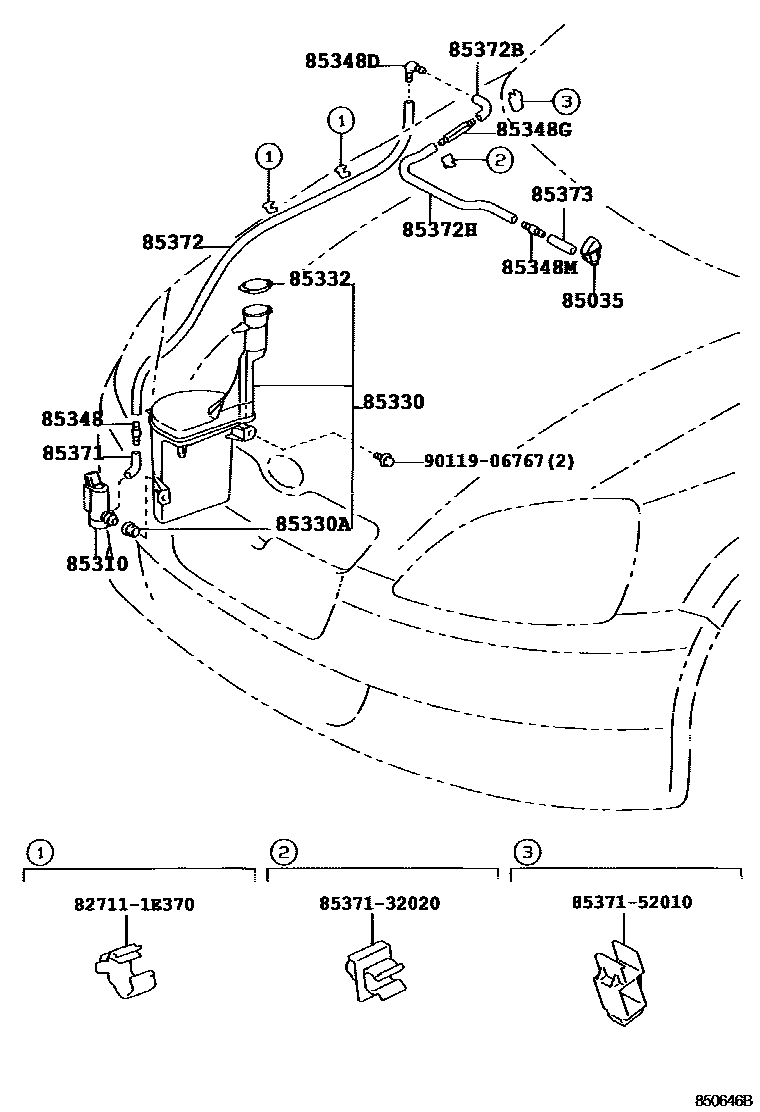

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52080iNCP1#,SCP11199908-200208

sub85381-52180

main85381-52180iNCP1#,SCP11200208-200511

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-52010iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

85330JAR ASSY, WINDSHIELD WASHER

main85315-52010iNCP1#,SCP11199908-200308

main85315-52030iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

main85316-42011iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iNCP1#,SCP11199908-200308

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150iNCP1#,SCP11199908-200308

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNCP1#,SCP11199908-200308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP1#,SCP11199908-200511

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNCP1#,SCP11199908-200308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP1#,SCP11199908-200308

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNCP1#,SCP11199908-200308

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP1#,SCP11199908-200511

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52010

9011906767

main90119-06767

18 parts on this diagram · 1 diagram in section
