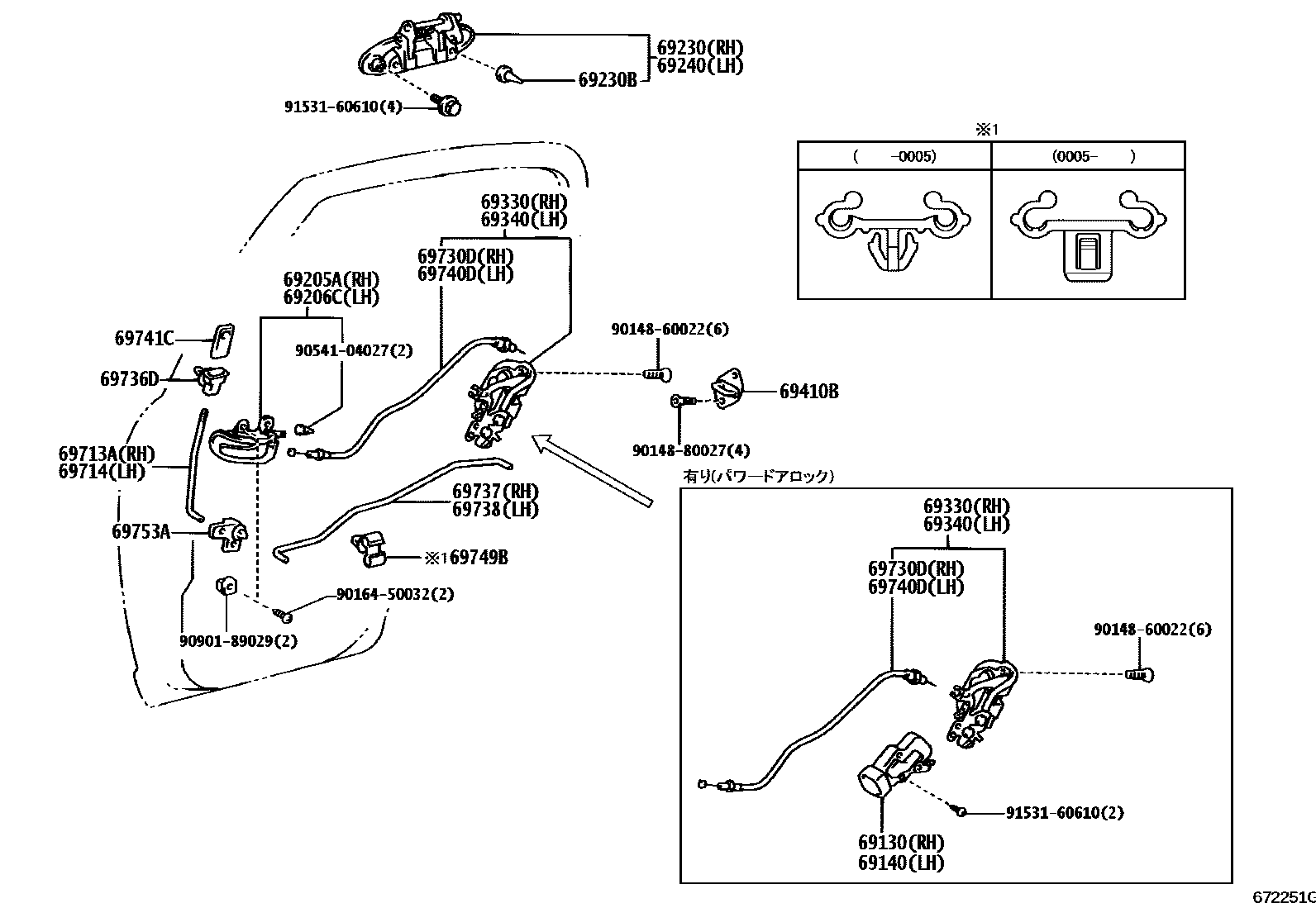

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-52010iNCP1#,SCP11199908-200308

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-52010iNCP1#,SCP11199908-200308

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69205-52010

main69205-52020-B7iNCP12..X;NCP16,SCP11200208-200512

sub69205-52020

main69205-52040-E1iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

sub69205-52040

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69206-52010

main69206-52020-B7iNCP12..X;NCP16,SCP11200208-200512

sub69206-52020

main69206-52040-E1iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

sub69206-52040

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-52010iSCP11199908-200511

main69230-52020-A0iNCP1#,SCP11199908-200101

SUPER WHITE 2,040

sub69230-52020

main69230-52020-A1iNCP1#,SCP11200101-200511

WHITE,068

sub69230-52020

main69230-52020-A2iNCP16,SCP11..F200108-200208

sub69230-52020

main69230-52020-A2iNCP1#,SCP11200208-200511

WHITE PALE MC.,057

sub69230-52020

main69230-52020-A2iNCP16,SCP11..F200108-200208

sub69230-52020

main69230-52020-B0iNCP1#,SCP11199908-200208

SILVER ME,199

sub69230-52020

main69230-52020-B2iNCP1#,SCP11200308-200511

GRAY M.M.,1E3

sub69230-52020

main69230-52020-B3iNCP1#,SCP11200208-200511

SILVER M.M.,1E7

sub69230-52020

main69230-52020-C0iNCP12..X199908-200208

BLACK MC.,209

sub69230-52020

main69230-52020-D1iNCP1#,SCP11200008-200208

PALE ROSE ME.OP.,3N7

sub69230-52020

main69230-52020-D2iNCP1#,SCP11199908-200208

SUPER RED 5,3P0

sub69230-52020

main69230-52020-D4iNCP1#,SCP11200208-200511

RED M.M.,3P1

sub69230-52020

main69230-52020-E0iNCP1#,SCP11200208-200511

BEIGE ME.,4R0

sub69230-52020

main69230-52020-F1iNCP1#,SCP11199908-200208

CHAMPAGNE ME.,583

sub69230-52020

main69230-52020-G0iNCP1#,SCP11199908-200308

DK.GREEN MC.,6R4

sub69230-52020

main69230-52020-H1iNCP1#,SCP11200208-200511

LT.AQUA ME.OP.,761

sub69230-52020

main69230-52020-J0iNCP1#,SCP11199908-200101

DK.BLUE MC.,8K8

sub69230-52020

main69230-52020-J4iNCP1#,SCP11200101-200511

DK.BLUE M.M.,8P4

sub69230-52020

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iNCP1#,SCP11199908-200208

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-52010iSCP11199908-200511

main69240-52020-A0iNCP1#,SCP11199908-200101

SUPER WHITE 2,040

sub69240-52020

main69240-52020-A1iNCP1#,SCP11200101-200511

WHITE,068

sub69240-52020

main69240-52020-A2iNCP16,SCP11..F200108-200208

sub69240-52020

main69240-52020-A2iNCP1#,SCP11200208-200511

WHITE PALE MC.,057

sub69240-52020

main69240-52020-A2iNCP16,SCP11..F200108-200208

sub69240-52020

main69240-52020-B0iNCP1#,SCP11199908-200208

SILVER ME,199

sub69240-52020

main69240-52020-B2iNCP1#,SCP11200308-200511

GRAY M.M.,1E3

sub69240-52020

main69240-52020-B3iNCP1#,SCP11200208-200511

SILVER M.M.,1E7

sub69240-52020

main69240-52020-C0iNCP12..X199908-200208

BLACK MC.,209

sub69240-52020

main69240-52020-D1iNCP1#,SCP11200008-200208

PALE ROSE ME.OP.,3N7

sub69240-52020

main69240-52020-D2iNCP1#,SCP11199908-200208

SUPER RED 5,3P0

sub69240-52020

main69240-52020-D4iNCP1#,SCP11200208-200511

RED M.M.,3P1

sub69240-52020

main69240-52020-E0iNCP1#,SCP11200208-200511

BEIGE ME.,4R0

sub69240-52020

main69240-52020-F1iNCP1#,SCP11199908-200208

CHAMPAGNE ME.,583

sub69240-52020

main69240-52020-G0iNCP1#,SCP11199908-200308

DK.GREEN MC.,6R4

sub69240-52020

main69240-52020-H1iNCP1#,SCP11200208-200511

LT.AQUA ME.OP.,761

sub69240-52020

main69240-52020-J0iNCP1#,SCP11199908-200101

DK.BLUE MC.,8K8

sub69240-52020

main69240-52020-J4iNCP1#,SCP11200101-200511

DK.BLUE M.M.,8P4

sub69240-52020

69330LOCK ASSY, REAR DOOR, RH

main69330-52010iSCP11199908-200208

main69330-52030iNCP1#,SCP11199908-200112

sub69330-52150

main69330-52150iNCP1#,SCP11200112-200308

69340LOCK ASSY, REAR DOOR, LH

main69340-52010iSCP11199908-200208

main69340-52030iNCP1#,SCP11199908-200112

sub69340-52160

main69340-52160iNCP1#,SCP11200112-200308

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-47010iNCP1#,SCP11199908-200308

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69715-52010iNCP1#,SCP11199908-200308

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69716-52010iNCP1#,SCP11199908-200308

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52010iNCP1#,SCP11199908-200308

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12130iNCP1#,SCP11199908-200308

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-52010iNCP1#,SCP11199908-200308

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-52010iNCP1#,SCP11199908-200308

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52010iNCP1#,SCP11199908-200308

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-B7iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69741-87003

main69741-87003-E1iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030iNCP1#,SCP11199908-200005

main69749-32040iNCP1#,SCP11200005-200308

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-10010iNCP1#,SCP11199908-200308

9014860022

main90148-60022

9014880027

main90148-80027

9016450032

main90164-50032

9054104027

main90541-04027

9090189029

main90901-89029

9153160610

main91531-60610

26 parts on this diagram · 1 diagram in section
