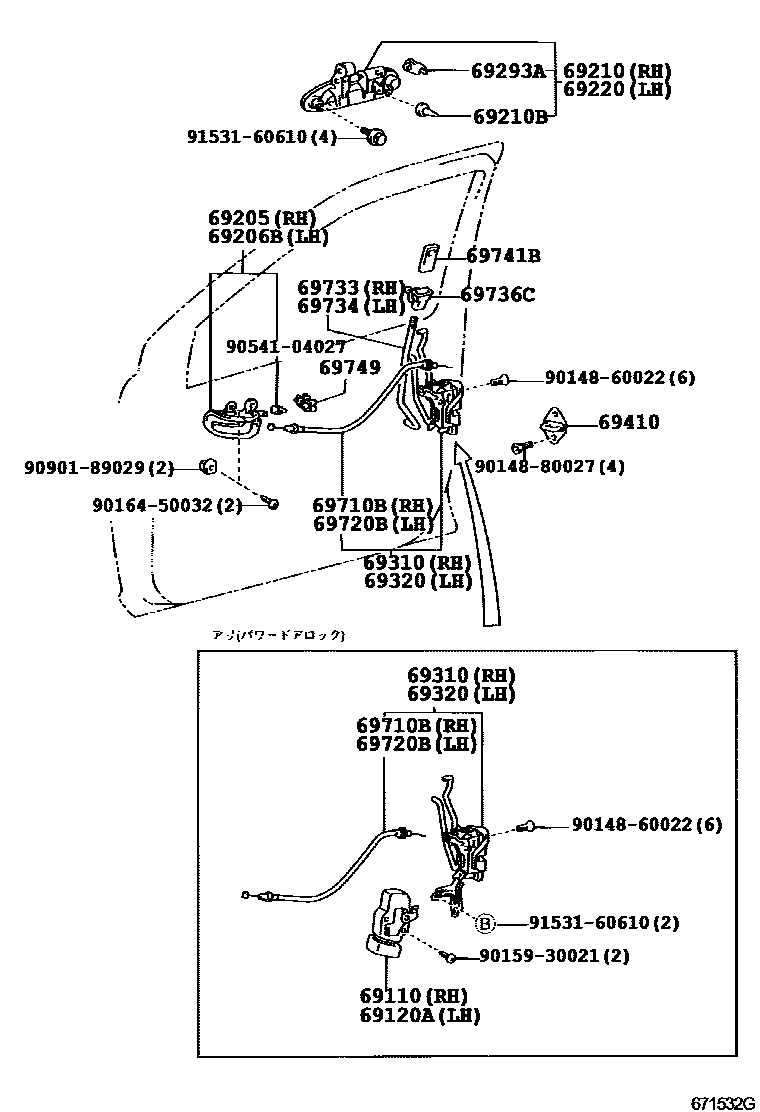

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-52010iNCP1#,SCP11..F199908-200208

main69110-52020iNCP1#..X199908-200208

main69110-52020iNCP1#..X200208-200308

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-52020iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69205-52010

main69205-52020-B7iNCP12..X;NCP16,SCP11200208-200308

sub69205-52020

main69205-52040-E1iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

sub69205-52040

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52010-B1iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69206-52010

main69206-52020-B7iSCP11;NCP16..ATM;NCP12..ATM..X;NCP16..MTM..F200208-200308

sub69206-52020

main69206-52040-E1iNCP1#,SCP11..F200208-200512

SANDAL WOOD,TRIM4#

sub69206-52040

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52010iSCP11199908-200511

main69210-52020-A0iNCP1#,SCP11199908-200101

SUPER WHITE 2,040

sub69210-52020

main69210-52020-A1iNCP1#,SCP11200101-200511

WHITE,068

sub69210-52020

main69210-52020-A2iNCP12..X;NCP16,SCP11200108-200208

sub69210-52020

main69210-52020-A2iNCP1#,SCP11200208-200511

WHITE PALE MC,057

sub69210-52020

main69210-52020-A2iNCP12..X;NCP16,SCP11200108-200208

sub69210-52020

main69210-52020-B0iNCP1#,SCP11199908-200208

SILVER ME,199

sub69210-52020

main69210-52020-B2iNCP1#,SCP11200308-200511

GRAY M.M.,1E3

sub69210-52020

main69210-52020-B3iNCP1#,SCP11200208-200511

SILVER M.M.,1E7

sub69210-52020

main69210-52020-C0iNCP12..X199908-200208

BLACK MC.,209

sub69210-52020

main69210-52020-D1iNCP1#,SCP11200008-200208

PALE ROSE ME.OP.,3N7

sub69210-52020

main69210-52020-D2iNCP1#,SCP11199908-200208

SUPER RED 5,3P0

sub69210-52020

main69210-52020-D4iNCP1#,SCP11200208-200511

RED M.M.,3P1

sub69210-52020

main69210-52020-E0iNCP1#,SCP11200208-200511

BEIGE ME.,4R0

sub69210-52020

main69210-52020-F1iNCP1#,SCP11199908-200208

CHAMPAGNE ME.,583

sub69210-52020

main69210-52020-G0iNCP1#,SCP11199908-200308

DK.GREEN MC.,6R4

sub69210-52020

main69210-52020-H1iNCP1#,SCP11200208-200511

LT.AQUA ME.OP.,761

sub69210-52020

main69210-52020-J0iNCP1#,SCP11199908-200101

DK.BLUE MC.,8K8

sub69210-52020

main69210-52020-J4iNCP1#,SCP11200101-200511

DK.BLUE M.M.,8P4

sub69210-52020

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iNCP1#,SCP11199908-200511

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-52010iSCP11199908-200511

main69220-52020-A0iNCP1#,SCP11199908-200101

SUPER WHITE 2,040

sub69220-52020

main69220-52020-A1iNCP1#,SCP11200101-200511

WHITE,068

sub69220-52020

main69220-52020-A2iNCP1#,SCP11200208-200511

WHITE PALE MC,057

sub69220-52020

main69220-52020-A2iNCP16,SCP11..F200108-200208

sub69220-52020

main69220-52020-A2iNCP16,SCP11..F200108-200208

sub69220-52020

main69220-52020-B0iNCP1#,SCP11199908-200208

SILVER ME,199

sub69220-52020

main69220-52020-B2iNCP1#,SCP11200308-200511

GRAY M.M.,1E3

sub69220-52020

main69220-52020-B3iNCP1#,SCP11200208-200511

SILVER M.M.,1E7

sub69220-52020

main69220-52020-C0iNCP12..X199908-200208

BLACK MC.,209

sub69220-52020

main69220-52020-D1iNCP1#,SCP11200008-200208

PALE ROSE ME.OP.,3N7

sub69220-52020

main69220-52020-D2iNCP1#,SCP11199908-200208

SUPER RED 5,3P0

sub69220-52020

main69220-52020-D4iNCP1#,SCP11200208-200511

RED M.M.,3P1

sub69220-52020

main69220-52020-E0iNCP1#,SCP11200208-200511

BEIGE ME.,4R0

sub69220-52020

main69220-52020-F1iNCP1#,SCP11199908-200208

CHAMPAGNE ME.,583

sub69220-52020

main69220-52020-G0iNCP1#,SCP11199908-200308

DK.GREEN MC.,6R4

sub69220-52020

main69220-52020-H1iNCP1#,SCP11200208-200511

LT.AQUA ME.OP.,761

sub69220-52020

main69220-52020-J0iNCP1#,SCP11199908-200101

DK.BLUE MC.,8K8

sub69220-52020

main69220-52020-J4iNCP1#,SCP11200101-200511

DK.BLUE M.M.,8P4

sub69220-52020

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iNCP1#,SCP11199908-200511

main69293-12040iNCP1#,SCP11199908-200511

69310LOCK ASSY, FRONT DOOR, RH

main69310-52030iSCP11199908-200208

main69310-52050iNCP1#,SCP11199908-200112

sub69310-52240

main69310-52240iNCP1#,SCP11200112-200308

69320LOCK ASSY, FRONT DOOR, LH

main69320-52030iSCP11199908-200208

main69320-52050iNCP1#,SCP11199908-200112

sub69320-52170

main69320-52170iNCP1#,SCP11200112-200308

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iNCP1#,SCP11199908-200308

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52020iNCP1#,SCP11199908-200308

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52020iNCP1#,SCP11199908-200308

69733LINK, FRONT DOOR INSIDE LOCKING, RH

main69733-52020iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

69734LINK, FRONT DOOR INSIDE LOCKING, LH

main69734-52020iNCP1#,SCP11199908-200308

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12130iSCP11;NCP1#..ATM;NCP1#..MTM..F199908-200308

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-87003-B7iNCP1#,SCP11199908-200208

AMETHYST,TRIM9#

sub69741-87003

main69741-87003-E1iNCP1#,SCP11200208-200512

SANDAL WOOD,TRIM4#

sub69741-87003

69749CLAMP, FRONT DOOR LOCK LINK

main69749-52010iNCP1#,SCP11199908-200308

9014860022

main90148-60022

9014880027

main90148-80027

9015930021

main90159-30021

9016450032

main90164-50032

9054104027

main90541-04027

9090189029

main90901-89029

9153160610

main91531-60610

25 parts on this diagram · 1 diagram in section
