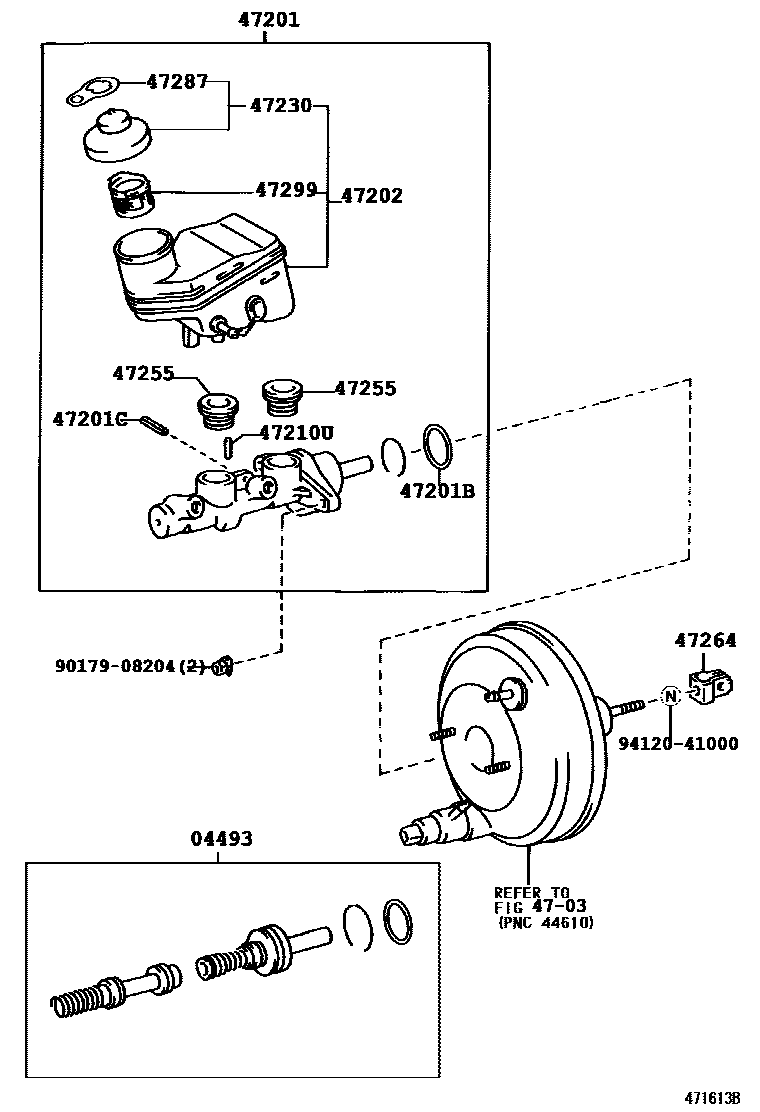

BRAKE MASTER CYLINDER

0001 1��(ABS) 0002 1��(ABS)

04493CYLINDER KIT, BRAKE MASTER

main04493-52020iNCP1#,SCP11199908-200208

main04493-52030iSCP11199908-200101

main04493-52040iNCP1#..MTM..X200208-200308

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52031iNCP1#,SCP11..MTM199908-200208

main47201-52041iNCP1#,SCP11..ATM199908-200208

main47201-52051iSCP11..MTM199908-200101

main47201-52061iSCP11..ATM199908-200101

main47201-52210iNCP1#,SCP11..MTM200208-200308

main47201-52220iNCP1#,SCP11..ATM200208

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNCP1#,SCP11199908-200208

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP1#,SCP11199908-200208

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52050iNCP1#,SCP11..MTM..F200308

main47220-52060iNCP1#,SCP11..ATM200208

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNCP1#,SCP11199908-200208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP1#,SCP11199908-200208

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010×2iNCP1#,SCP11199908-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP1#,SCP11199908-200208

main47264-52040iNCP1#,SCP11200208-200308

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP1#,SCP11199908-200208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP1#,SCP11199908-200208

9017908204

main90179-08204

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
