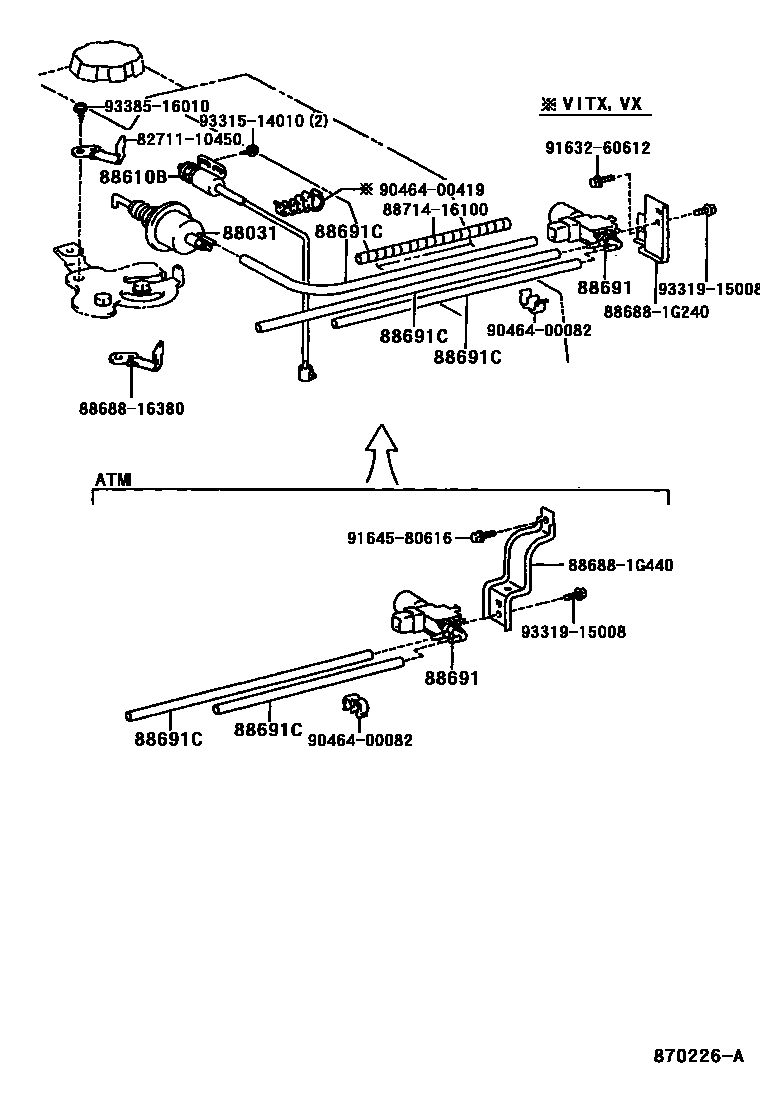

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main88031-27040iNL50199409

88610BSWITCH ASSY, IDLE UP DEVICE

main88610-16080iNL50..5F199409

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-16060iNL50199409

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90999-92002iNL50..4FC; NL50..AX,JOI,MOA199409-199608

main90999-92003iNL50..4FC; NL50..5F199409

8271110450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10450

8868816380BRACKET, COOLER DIAPHRAGM

main88688-16380

886881G240BRACKET, COOLER DIAPHRAGM

main88688-1G240

886881G440BRACKET, COOLER DIAPHRAGM

main88688-1G440

8871416100HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-16100

9046400082

main90464-00082

9046400419

main90464-00419

9163260612

main91632-60612

9164580616

main91645-80616

9331514010

main93315-14010

9331915008

main93319-15008

9338516010

main93385-16010

16 parts on this diagram · 1 diagram in section
