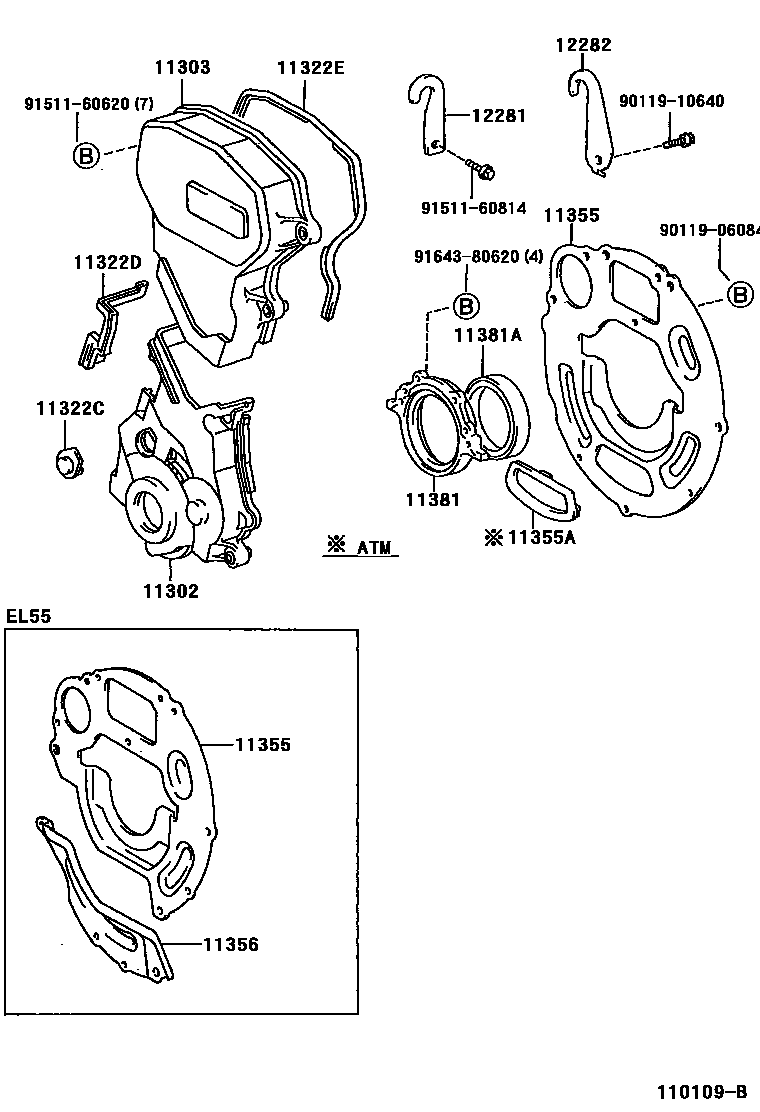

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11355APLUG, HOLE(FOR REAR END PLATE)
11356PLATE, REAR END, NO.2
12281HANGER, ENGINE, NO.1
9011906084
main90119-06084
9011910640
main90119-10640
9151160620
main91511-60620
9151160814
main91511-60814
9164380620
main91643-80620
17 parts on this diagram · 2 diagrams in section
