ENGINE OVERHAUL GASKET KIT

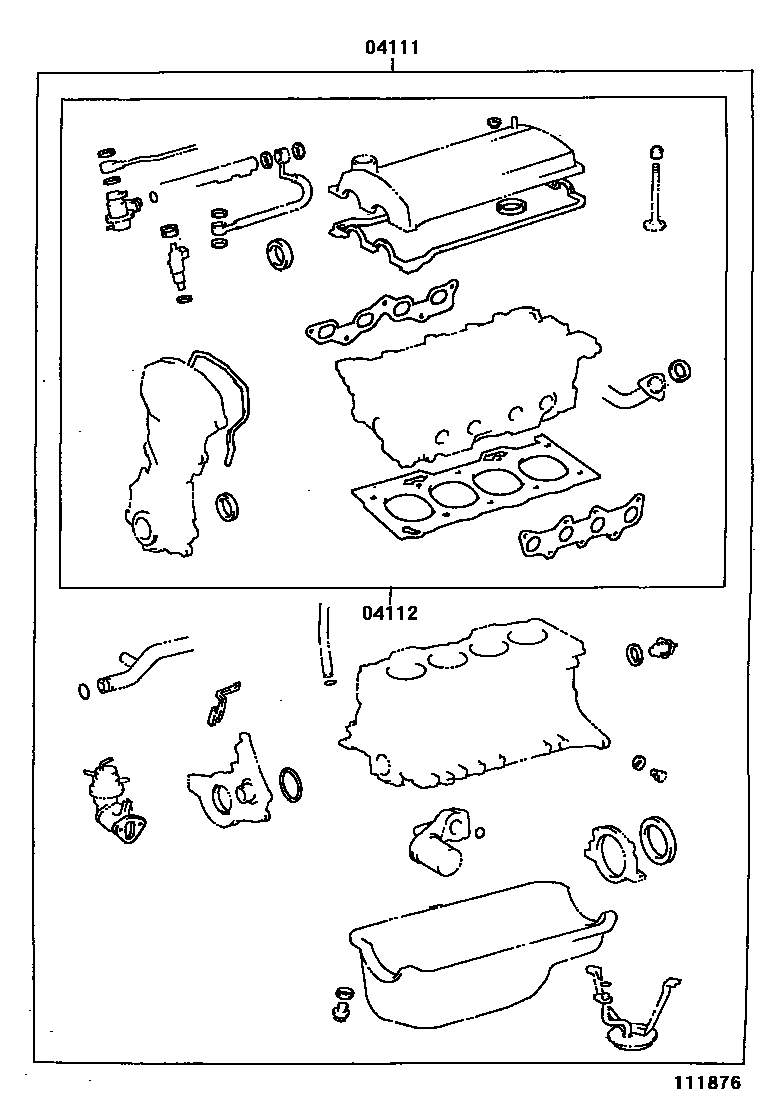

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11140i199409-199504
main04111-11141i199504-199907
main04111-11150i199409-199504
main04111-11151i199504-199907
main04111-11190i199803-199907
main04111-55050i199409-199803
sub04111-55051
main04111-55051i199803-199902
sub04111-55052
main04111-55052i199902
sub04111-55053
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11120i199409-199504
main04112-11121i199504-199907
main04112-11130i199409-199504
main04112-11131i199504-199907
main04112-11160i199803-199907
main04112-55050i199409-199902
sub04112-55051
main04112-55051i199902

2 parts on this diagram · 2 diagrams in section
