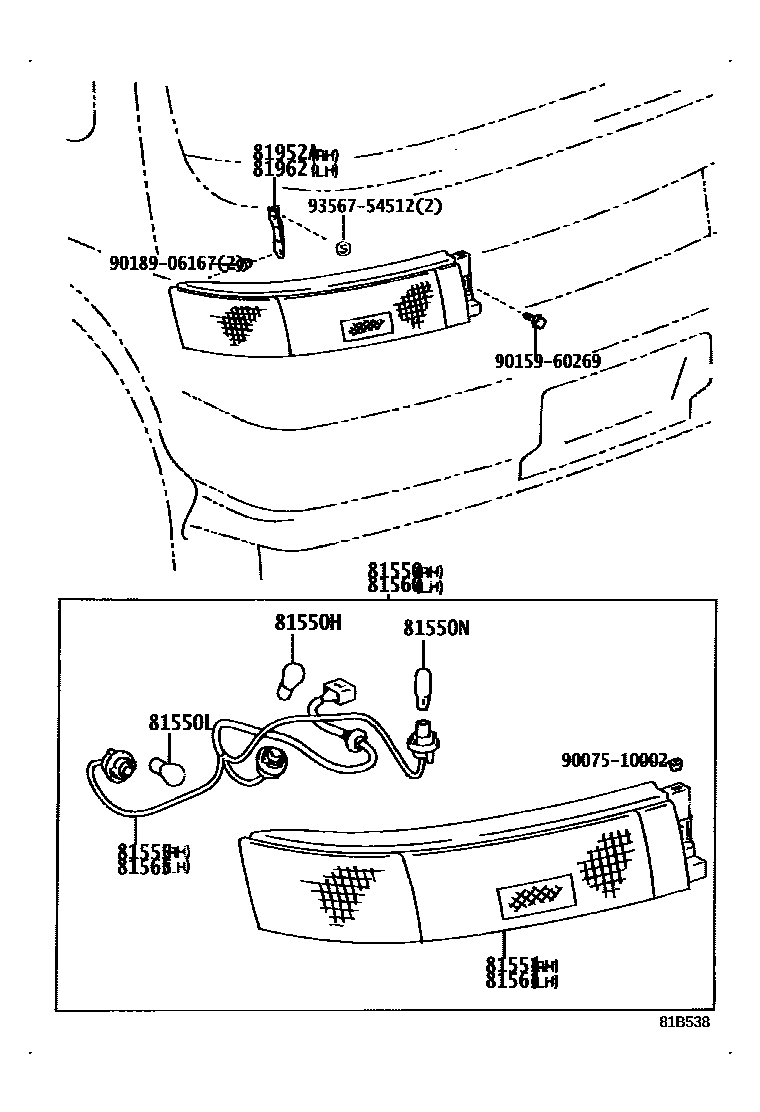

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-16410iEL4#,NL40..4DS199009-199208

main81550-16430iEL4#,NL40..3DS199009-199208

main81550-16460iEL4#,NL40..4DS199208-199409

main81550-16470iEL4#,NL40..3DS199208-199409

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iEL4#,NL40..4DS199208-199409

main99132-11210×2iEL4#,NL40..4DS199009-199208

main99132-21210×2iEL4#,NL40..3DS199009-199208

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iEL4#,NL40..4DS199208-199409

main99132-11210×2iEL4#,NL40..3DS199009-199409

81550NBULB, BACK UP LAMP

main90981-11039×2iEL4#,NL40199009-199409

81551LENS, REAR COMBINATION LAMP, RH

main81551-16410iEL4#,NL40..4DS199009-199208

main81551-16430iEL4#,NL40..3DS199009-199208

main81551-16460iEL4#,NL40..4DS199208-199409

main81551-16470iEL4#,NL40..3DS199208-199409

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-16410iEL4#,NL40..4DS199009-199208

main81555-16430iEL4#,NL40..3DS199009-199208

main81555-16460iEL4#,NL40..4DS199208-199409

main81555-16470iEL4#,NL40..3DS199208-199402

main81555-16471iEL4#,NL40..3DS199402-199409

81560LAMP ASSY, REAR COMBINATION, LH

main81560-16450iEL4#,NL40..4DS199009-199208

main81560-16470iEL4#,NL40..3DS199009-199208

main81560-16500iEL4#,NL40..4DS199208-199409

main81560-16510iEL4#,NL40..3DS199208-199409

81561LENS, REAR COMBINATION LAMP, LH

main81561-16450iEL4#,NL40..4DS199009-199208

main81561-16470iEL4#,NL40..3DS199009-199208

main81561-16500iEL4#,NL40..4DS199208-199409

main81561-16510iEL4#,NL40..3DS199208-199409

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-16410iEL4#,NL40..4DS199009-199208

main81555-16430iEL4#,NL40..3DS199009-199208

main81555-16460iEL4#,NL40..4DS199208-199409

main81555-16470iEL4#,NL40..3DS199208-199402

main81555-16471iEL4#,NL40..3DS199402-199409

81952ACOVER, REAR LAMP, RH

main61663-16010iEL4#,NL40..3DS199009-199409

81962COVER, REAR LAMP, LH

main61664-16010iEL4#,NL40..3DS199009-199409

9007510002

main90075-10002

9015960269

main90159-60269

9018906167

main90189-06167

9356754512

main93567-54512

15 parts on this diagram · 4 diagrams in section
