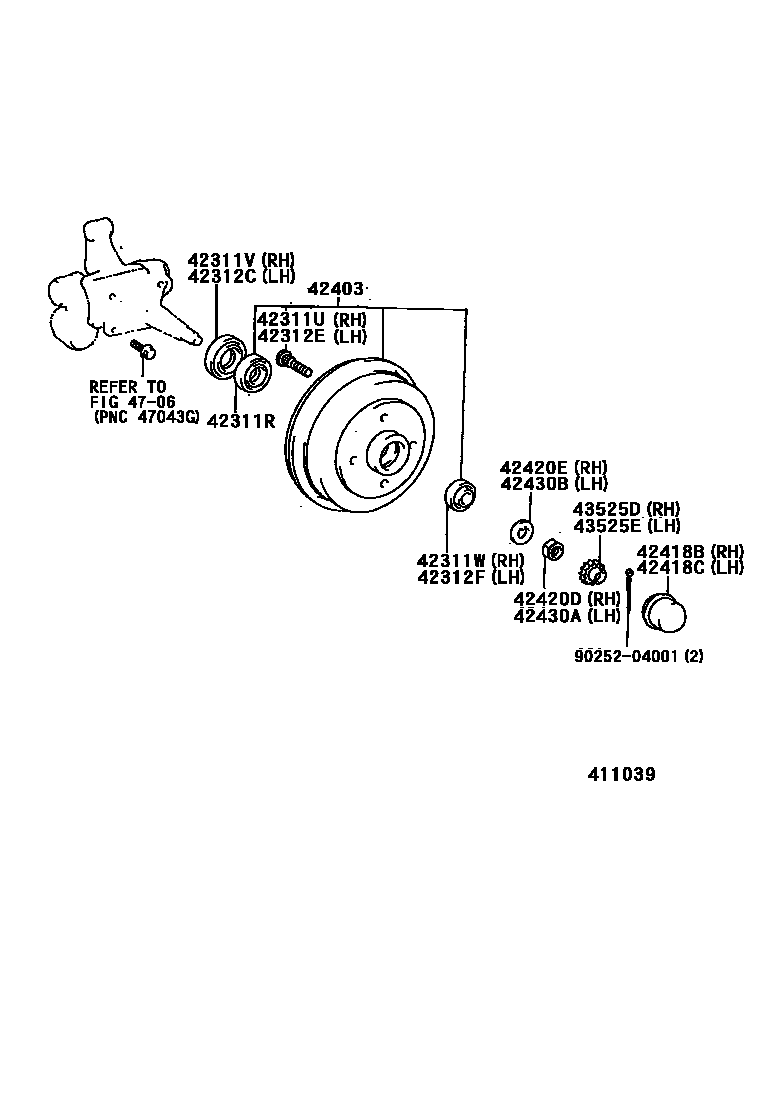

Toyota CORSA/TERCEL — REAR AXLE SHAFT & HUB
42311RBEARING(FOR REAR AXLE SHAFT INNER)
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42311WBEARING(FOR REAR AXLE SHAFT OUTER RH)
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42312FBEARING(FOR REAR AXLE SHAFT OUTER LH)
42403DRUM SUB-ASSY, REAR BRAKE
42418BCAP, REAR HUB GREASE, RH
42418CCAP, REAR HUB GREASE, LH
42420DNUT (FOR REAR AXLE SHAFT RH)
42420EWASHER, CLAW (FOR REAR AXLE SHAFT RH)
42430ANUT (FOR REAR AXLE SHAFT LH)
42430BWASHER, CLAW (FOR REAR AXLE SHAFT LH)
43525DCAP, REAR WHEEL ADJUSTING LOCK, RH
43525ECAP, REAR WHEEL ADJUSTING LOCK, LH
4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
9025204001
19 parts on this diagram · 3 diagrams in section
REAR AXLE SHAFT & HUB for Toyota CORSA/TERCEL
This section contains 28 genuine Toyota parts for the REAR AXLE SHAFT & HUB system of the Toyota CORSA/TERCEL. Key components include: BEARING KIT, REAR AXLE SHAFT, RH, BEARING KIT, REAR AXLE SHAFT, LH, GASKET, REAR AXLE HOUSING END, SHAFT, REAR AXLE, RH, BEARING(FOR REAR AXLE SHAFT INNER).
