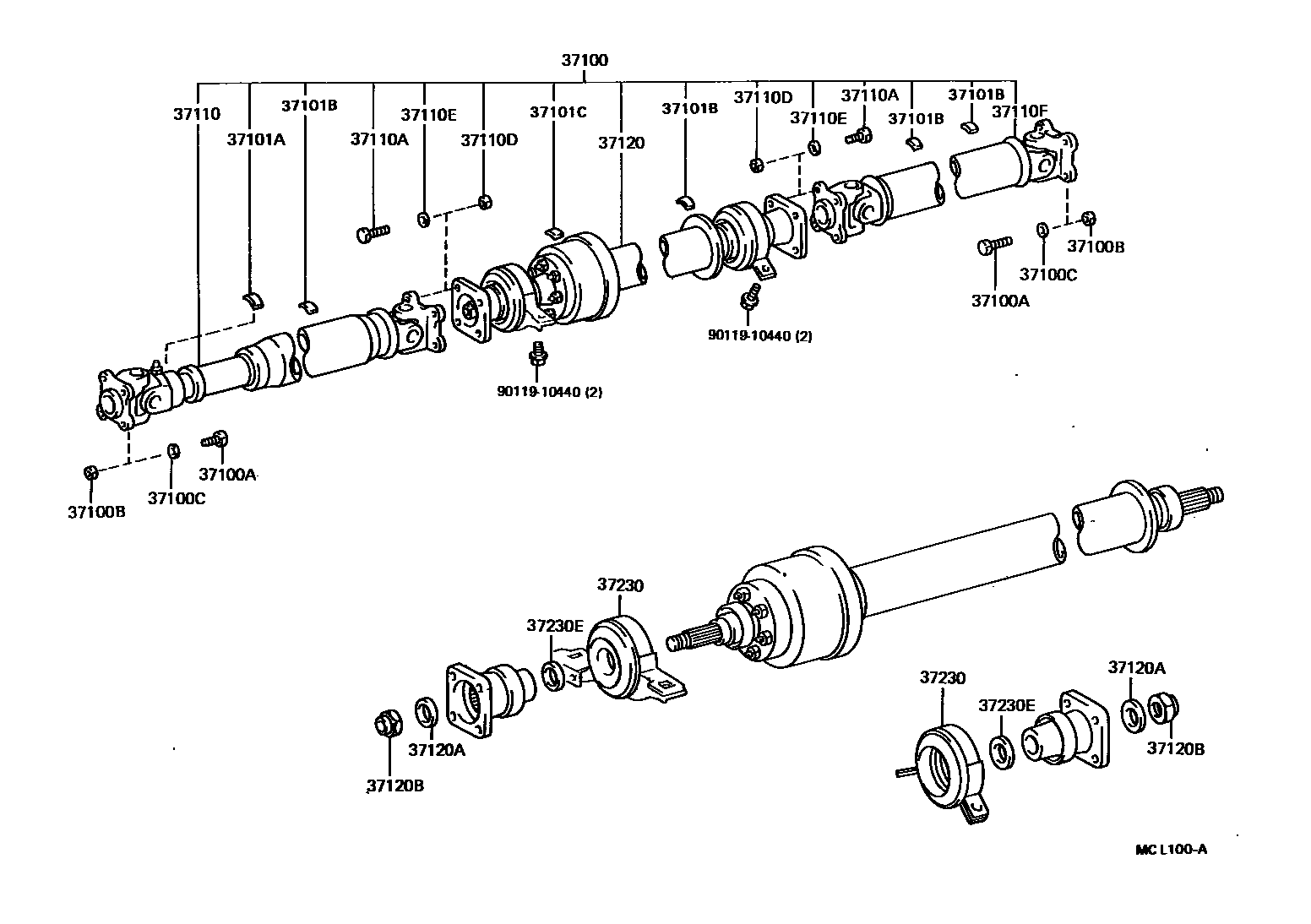

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)
37101CPIECE, BALANCE, NO.3 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37110FSHAFT ASSY, PROPELLER, REAR
37120SHAFT ASSY, PROPELLER INTERMEDIATE
sub37120-10020
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
9011910440
main90119-10440
18 parts on this diagram · 1 diagram in section
