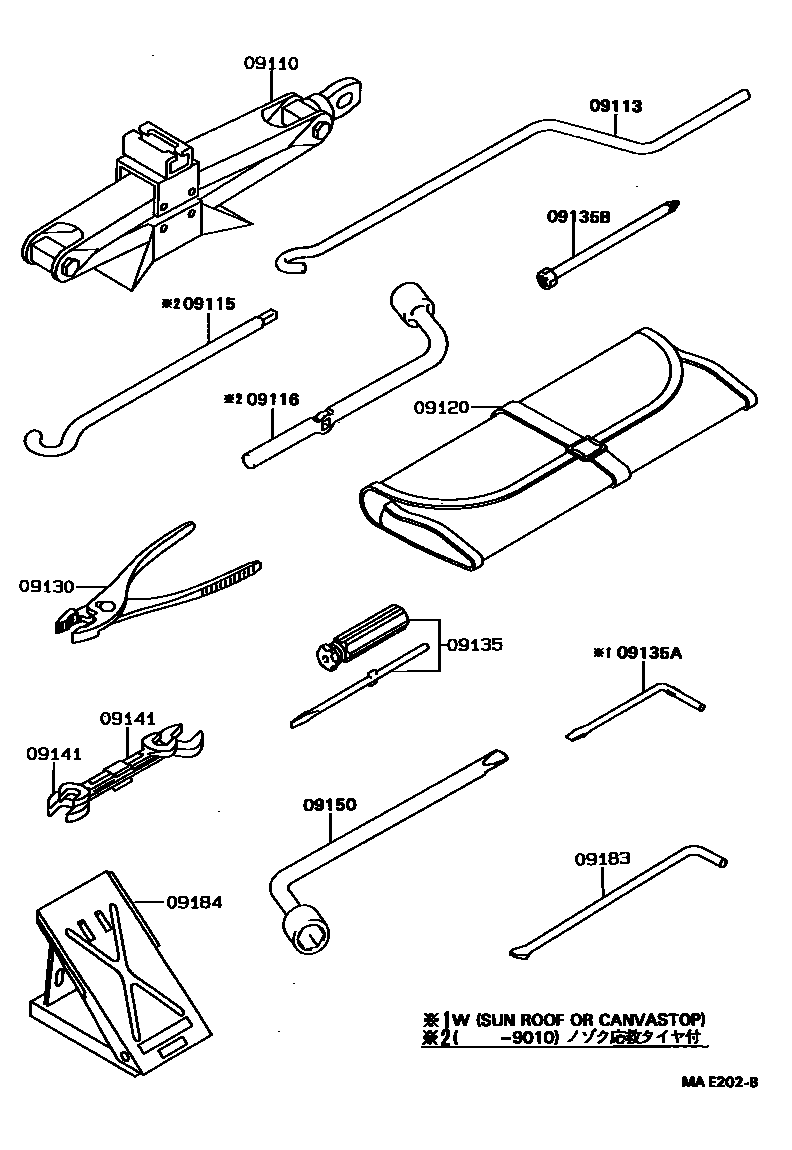

STANDARD TOOL

09110JACK ASSY

main09111-10050iEL4#,NL40199009-199409

09113HANDLE, JACK

main09113-20030iEL41,43,NL40199009-199010

sub09113-20050

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iEL4#,NL40199009-199409

09116LEVER, JACK HANDLE

main09116-16010iEL4#,NL40199009-199409

09120BAG, TOOL

main09120-12011iEL4#,NL40199009-199012

main09120-16030iEL4#,NL40199301-199409

main09120-28010iEL4#,NL40199012-199301

09130PLIERS

main99913-11500iEL4#,NL40199009-199409

09135DRIVER, SCREW

main99915-10700iEL4#,NL40199009-199409

09135ABIT, SCREW DRIVER

main09135-00012iEL43,45;EL41..3DS..JOI;EL41..AVE,AXX,MOA,SOP199009-199301

09135BDRIVER, SCREW(FOR HEADLAMP)

main09135-16010iEL4#,NL40..4DS199101-199409

09141SPANNER

main99914-10810iEL4#,NL40199009-199409

main99914-11214iEL4#,NL40199009-199409

09150WRENCH, HUB NUT BOX

main09150-40010iEL41,43,NL40199009-199010

09183WRENCH, WHEEL CAP

main09183-00010iEL4#,NL40199009-199409

09184STOPPER, WHEEL

main09184-00010iEL4#,NL40199009-199409

13 parts on this diagram · 1 diagram in section
