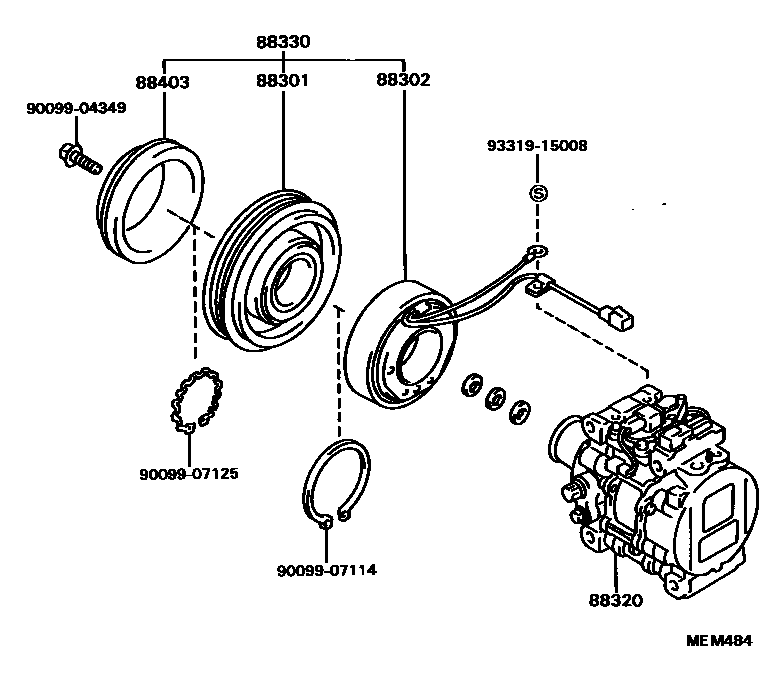

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-16050iEL31..TBO198805-199009

main88412-20090iEL30..GX,TX,VC,VL198805-199009

sub88412-2B030

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16021iEL30..GX,TX,VC,VL198805-199009

sub88411-60030

main88411-16030iEL31..TBO198805-199009

main88411-60030iEL30..CUT,SOP198901-199009

88320COMPRESSOR ASSY, COOLER

main88320-16071iEL31..TBO198805-199006

sub88320-16140

main88320-16081iEL31..TBO198805-199006

sub88320-16150

main88320-16090iEL31,NL30..GX,TX,VC,VL198805-199009

main88320-16100iEL31..SXI,UX,VSI,VU198805-199009

sub88320-16090

88330CLUTCH ASSY, MAGNET

main88410-10180iEL31,NL30..GX,TX,VC,VL198901-199009

main88410-16040iEL31..TBO198805-199009

sub88410-10170

main88410-16050iEL31..EFI198807-199009

sub88410-1A080

main88410-16070iEL31,NL30..EX,VX198805-198901

sub88410-10180

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iEL30..GX,TX,VC,VL198805-199009

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

9 parts on this diagram · 3 diagrams in section
