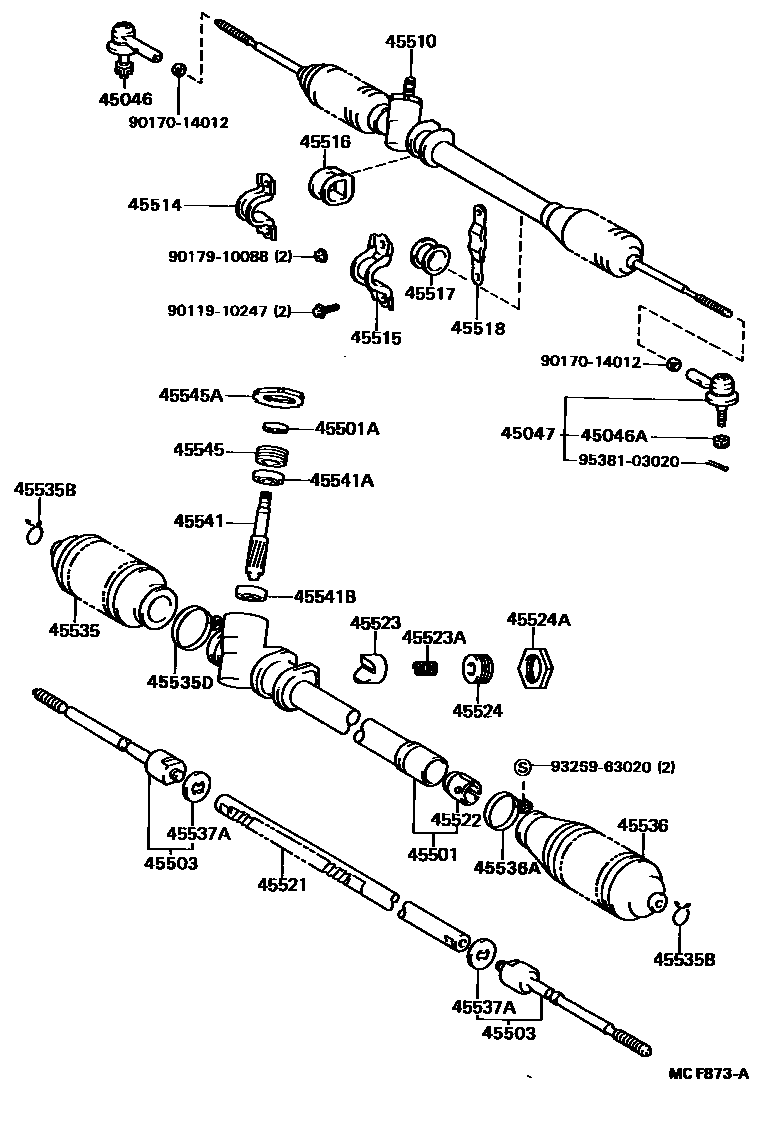

FRONT STEERING GEAR & LINK

0001 1 0002 1���- ������� 0003 1���- ������� 0004 1���������� ���- ������� 0005 1���������� ���- �������

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iEL3#,NL30198805-199009

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEL3#,NL30198805-199009

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iEL3#,NL30198805-199009

45501HOUSING SUB-ASSY, STEERING RACK

main45501-16240iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-198905

sub90311-15002

main90311-15002iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198905-199009

45503END SUB-ASSY, STEERING RACK

main45503-19116iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45510GEAR ASSY, STEERING

main45510-16091iEL31..GP,SXI,UX,VSI,VU198805-199009

main45510-16111iEL3#,NL30..GX,TX,VC,VL198805-199009

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16030iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45514-16040iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

main45514-16040iEL30..TX,VC198805-199009

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-16040iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45515-16050iEL30..TX,VC198901-199009

main45515-16050iEL3#,NL30..GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-10040iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45516-16040iEL3#,NL30..CUT,EX,SOP,VX198805-199009

sub45516-20010

main45516-16040iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

sub45516-20010

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10040iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

sub45517-10050

main45517-16040iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198805-199009

main45517-16040iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-16020iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45518-16030iEL31..TBO198805-199009

main45518-16030iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

45521RACK, STEERING

main45521-16170iEL31..GP,SXI,UX,VSI,VU198805-199009

main45521-16190iEL3#,NL30..GX,TX,VC,VL198805-199009

45522BUSH, STEERING RACK

main45522-10040iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

sub45522-10050

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-10020iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

sub45523-10040

sub45524-16040

sub90501-26042

main45523-10030iEL30..TX,VC198901-199009

main45523-10030iEL3#,NL30..GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-26038iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45524CAP, STEERING RACK GUIDE SPRING

main45524-10020iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45524-10030iEL3#,NL30..CUT,EX,SOP,VX198805-199009

main45524-10030iEL30..TX,VC198901-199009

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-30001iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45535BOOT, STEERING RACK, NO.1

main45535-10021iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45535-16020iEL30..TX,VC198805-199009

main45535-16020iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iEL3#,NL30198805-199009

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-56001iEL3#,NL30..CUT,EX,SOP,VX198805-199009

main90460-56001iEL30..TX,VC198901-199009

main90461-10273iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45536BOOT, STEERING RACK, NO.2

main45536-10060iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main45536-10070iEL31..TBO198805-199009

main45536-10070iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-48002iEL3#,NL30..GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

main90460-48002iNL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU198901-199009

main90461-10646iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-12002iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45541PINION, STEERING

main45541-16090iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15003iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-13001iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45545SCREW, PINION BEARING ADJUSTING

main45545-10010iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-38001iEL3#,NL30..GP,GX,SXI,TX,UX,VC,VL,VSI,VU198805-199009

9011910247

main90119-10247

9017014012

main90170-14012

9017910088

main90179-10088

9326963020

main93269-63020

9538103020

main95381-03020

34 parts on this diagram · 5 diagrams in section
