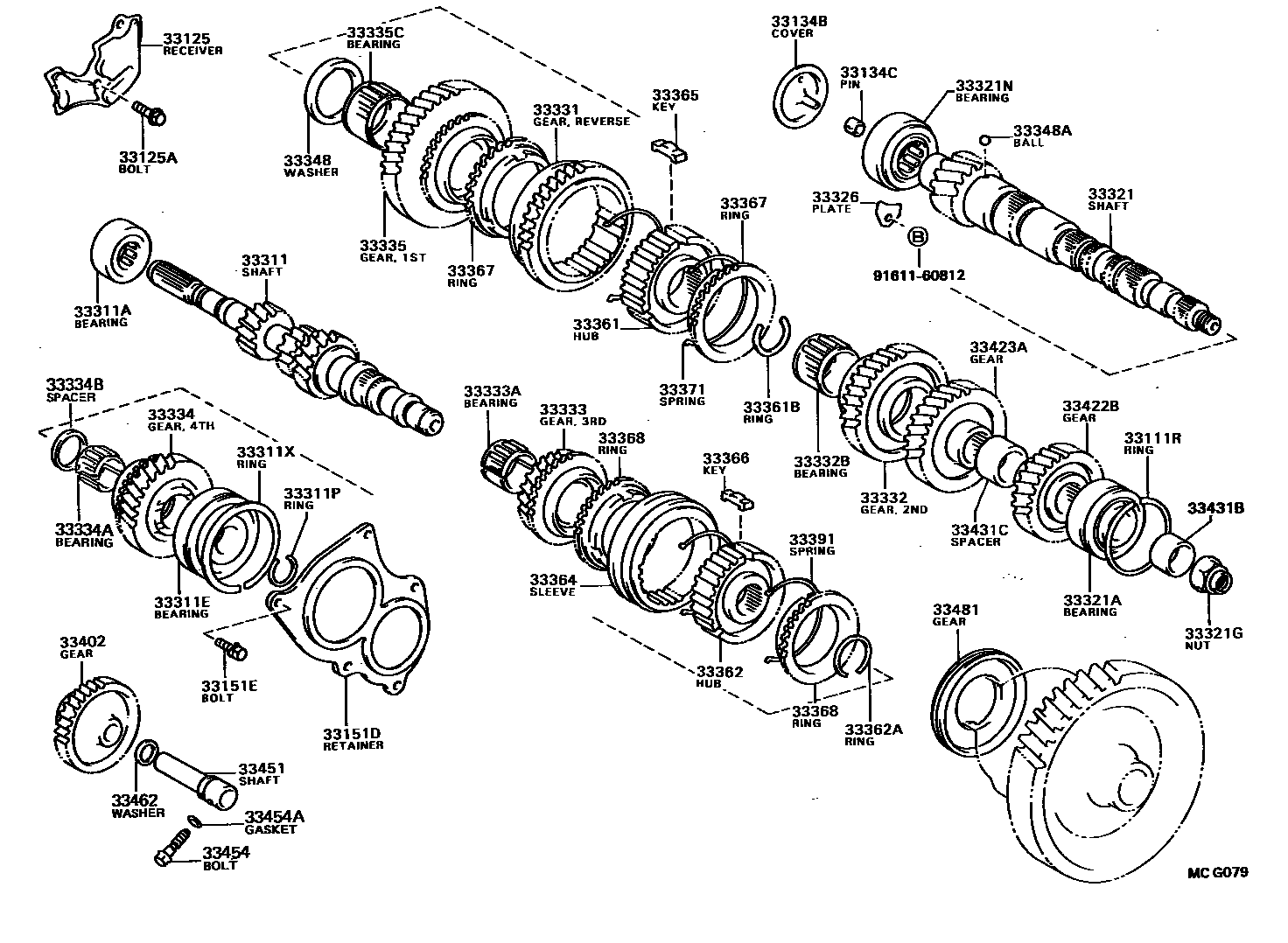

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)

main90520-57002iEL3#,NL30..MTM198805-199009

33125RECEIVER, MANUAL TRANSAXLE CASE

main33125-12010iEL3#,NL30..MTM198805-199009

33125ABOLT(FOR TRANSAXLE CASE RECEIVER)

main91611-60812×2iEL3#,NL30..MTM198805-199009

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-12021iEL3#,NL30..MTM198805-199009

33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)

main90254-10001iEL3#,NL30..MTM198805-199009

33151DRETAINER, BEARING, REAR(MTM)

main33151-10040iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33151-12020iEL31..5F..TBO198805-199009

33151EBOLT(FOR REAR BEARING RETAINER)

main91611-60820×5iEL3#,NL30..MTM198805-199009

33311SHAFT, INPUT

main33311-10051iEL3#..4F198805-199009

main33311-10061iEL31,NL30..5F..(CBR,EFI,TD)198805-199009

main33311-12041iEL31..5F..TBO198805-199009

33311ABEARING (FOR INPUT SHAFT FRONT)

main90365-25021iEL3#,NL30..MTM198805-199009

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-25043iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main90363-25048iEL31..5F..TBO198805-199009

33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-22006iEL3#,NL30..MTM198805-199009

main90520-22007iEL3#,NL30..MTM198805-199009

main90520-22008iEL3#,NL30..MTM198805-199009

main90520-22009iEL3#,NL30..MTM198805-199009

main90520-22010iEL3#,NL30..MTM198805-199009

main90520-22011iEL3#,NL30..MTM198805-199009

33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-64002iEL3#,NL30..MTM198805-199009

33321SHAFT, OUTPUT

main33321-10041iEL30..3DS..4F..(TX,VC)198805-199009

main33321-10051iEL3#..MTM..CBR198805-199009

main33321-10071iEL31..5F..EFI198805-199009

main33321-10091iNL30..5F198805-199009

main33321-12051iEL31..5F..TBO198805-199009

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-25029iEL31..5F..TBO198805-199009

main90363-25044iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-18005iEL3#,NL30..MTM198805-199009

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90365-33005iEL3#,NL30..MTM198805-199009

33326PLATE, BEARING LOCK

main33326-12010iEL3#,NL30..MTM198805-199009

33331GEAR, REVERSE

main33331-12020iEL3#,NL30..MTM198805-198908

main33331-12021iEL3#,NL30..MTM198908-199009

33332GEAR, 2ND

main33033-10010iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33033-12010iEL31..5F..TBO198805-199009

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-32014iEL31..5F..TBO198805-199009

main90364-32017iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33333GEAR, 3RD

main33034-10011iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33034-10021iEL30..3DS..4F..(TX,VC)198805-199009

main33034-12020iEL31..5F..TBO198805-199009

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-31002iEL31..5F..TBO198805-199009

main90364-31004iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33334GEAR, 4TH

main33035-12011iEL3#,NL30..MTM198805-199009

main33035-12021iEL30..3DS..4F..(TX,VC)198805-199009

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-29002iEL3#,NL30..MTM198805-199009

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-29001iEL3#,NL30..MTM198805-199009

33335GEAR, 1ST

main33032-10020iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33032-12020iEL31..5F..TBO198805-199009

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38007iEL31..5F..TBO198805-199009

main90364-38008iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33348WASHER, 1ST GEAR THRUST

main33348-12010iEL3#,NL30..MTM198805-199009

33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)

main90360-05012iEL3#,NL30..MTM198805-199009

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-12030iEL3#,NL30..MTM198805-199009

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-29018iEL3#,NL30..MTM198805-199009

main90520-29019iEL3#,NL30..MTM198805-199009

main90520-29020iEL3#,NL30..MTM198805-199009

main90520-29021iEL3#,NL30..MTM198805-199009

main90520-29022iEL3#,NL30..MTM198805-199009

main90520-29023iEL3#,NL30..MTM198805-199009

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-12020iEL3#,NL30..MTM198805-199009

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-27046iEL3#,NL30..MTM198805-199009

main90520-27047iEL3#,NL30..MTM198805-199009

main90520-27048iEL3#,NL30..MTM198805-199009

main90520-27049iEL3#,NL30..MTM198805-199009

main90520-27050iEL3#,NL30..MTM198805-199009

main90520-27051iEL3#,NL30..MTM198805-199009

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-12010iEL3#,NL30..MTM198805-198908

main33364-12011iEL3#,NL30..MTM198908-199009

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-12021×3iEL3#,NL30..MTM198805-199009

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-12020×3iEL3#,NL30..MTM198805-199009

33367RING, SYNCHRONIZER, NO.1

main33367-12031×2iEL3#,NL30..MTM198805-199009

33368RING, SYNCHRONIZER, NO.2

main33368-12020×2iEL3#,NL30..MTM198805-199009

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-12020×2iEL3#,NL30..MTM198805-199009

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-12020×2iEL3#,NL30..MTM198805-199009

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-10030iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33402-12021iEL31..5F..TBO198805-199009

33422BGEAR, 4TH DRIVEN

main33422-12010iEL3#,NL30..MTM198805-199009

main33422-12020iEL30..3DS..4F..(TX,VC)198805-199009

33423AGEAR, 3RD DRIVEN

main33423-10011iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33423-10021iEL30..3DS..4F..(TX,VC)198805-199009

main33423-12010iEL31..5F..TBO198805-199009

33431BSPACER, OUTPUT SHAFT

main33431-12020iEL3#..4F198805-199009

33431CSPACER, OUTPUT GEAR

main33431-12010iEL3#,NL30..MTM198805-199009

33451SHAFT, REVERSE IDLER GEAR

main33451-10021iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33451-12021iEL31..5F..TBO198805-199009

33454BOLT, SHAFT RETAINING

main90109-08097iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33454AGASKET (FOR SHAFT RETAINING BOLT)

main90430-08010iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

33462WASHER, REVERSE IDLER THRUST

main33462-12010iEL3#,NL30..MTM198805-199009

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-10080iEL3#,NL30..MTM..(CBR,EFI,TD)198805-199009

main33481-12040iEL31..5F..TBO198805-199009

9161160812

main91611-60812

51 parts on this diagram · 3 diagrams in section
