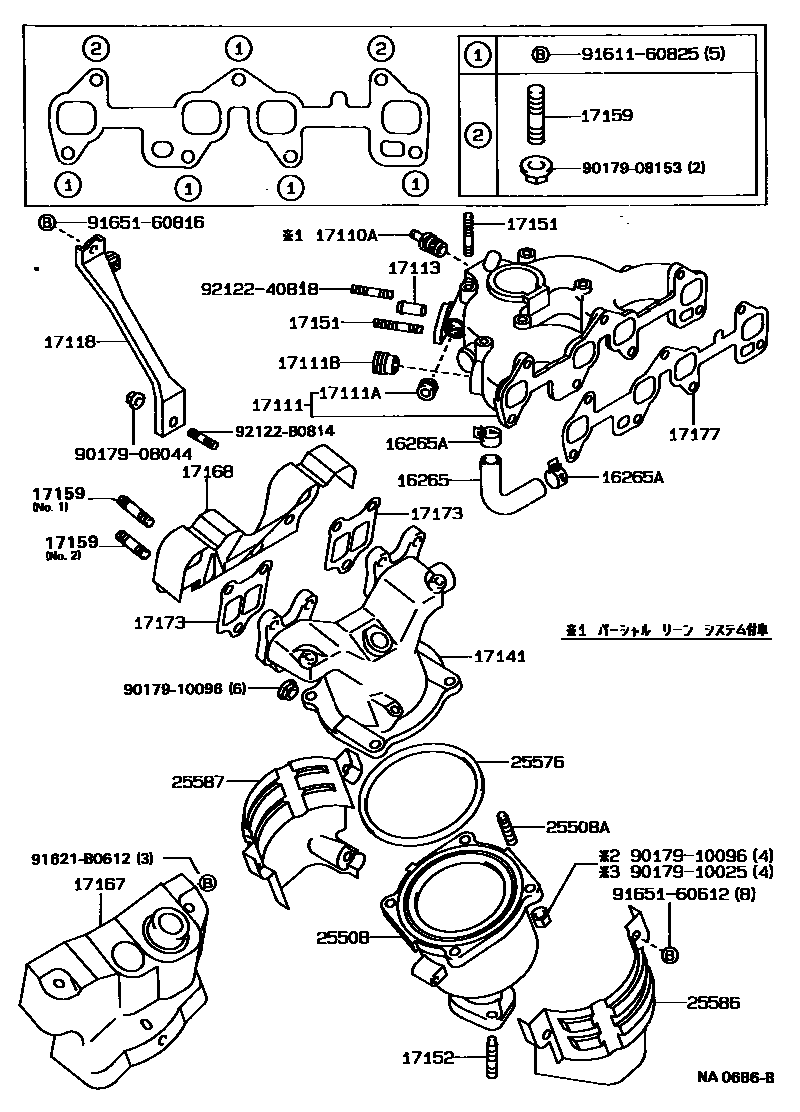

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
sub90467-21006
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17111BPLUG, NO.2
17113PIPE, INTAKE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD,NO.1
EXHAUST MANIFOLD
EXHAUST MANIFOLD,NO.2
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
main17107-11050i2E..EL30..3FC..(TX,VC);2E..EL30..5DS..4F..(TX,VC);2E,3E..EL3#..CUT,EX,GX,SOP,UX,VL,VU,VX198805-199009
main17107-11050i2E..EL30..3FC..(TX,VC);2E..EL30..5DS..4F..(TX,VC);2E,3E..EL3#..CUT,EX,GX,SOP,UX,VL,VU,VX198805-199009
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-10011
sub17177-10020
sub17177-11011
sub17177-11040
sub17177-55011
sub17177-55012
25508CONVERTER SUB-ASSY, MANIFOLD
25508ABOLT, STUD(FOR MANIFOLD CONVERTER)
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
9017908044
main90179-08044
9017908153
main90179-08153
9017910025
main90179-10025
9017910096
main90179-10096
9161160825
main91611-60825
91621B0612
main91621-B0612
9165160612
main91651-60612
9165160816
main91651-60816
9212240818
main92122-40818
92122B0814
main92122-B0814
31 parts on this diagram · 6 diagrams in section
