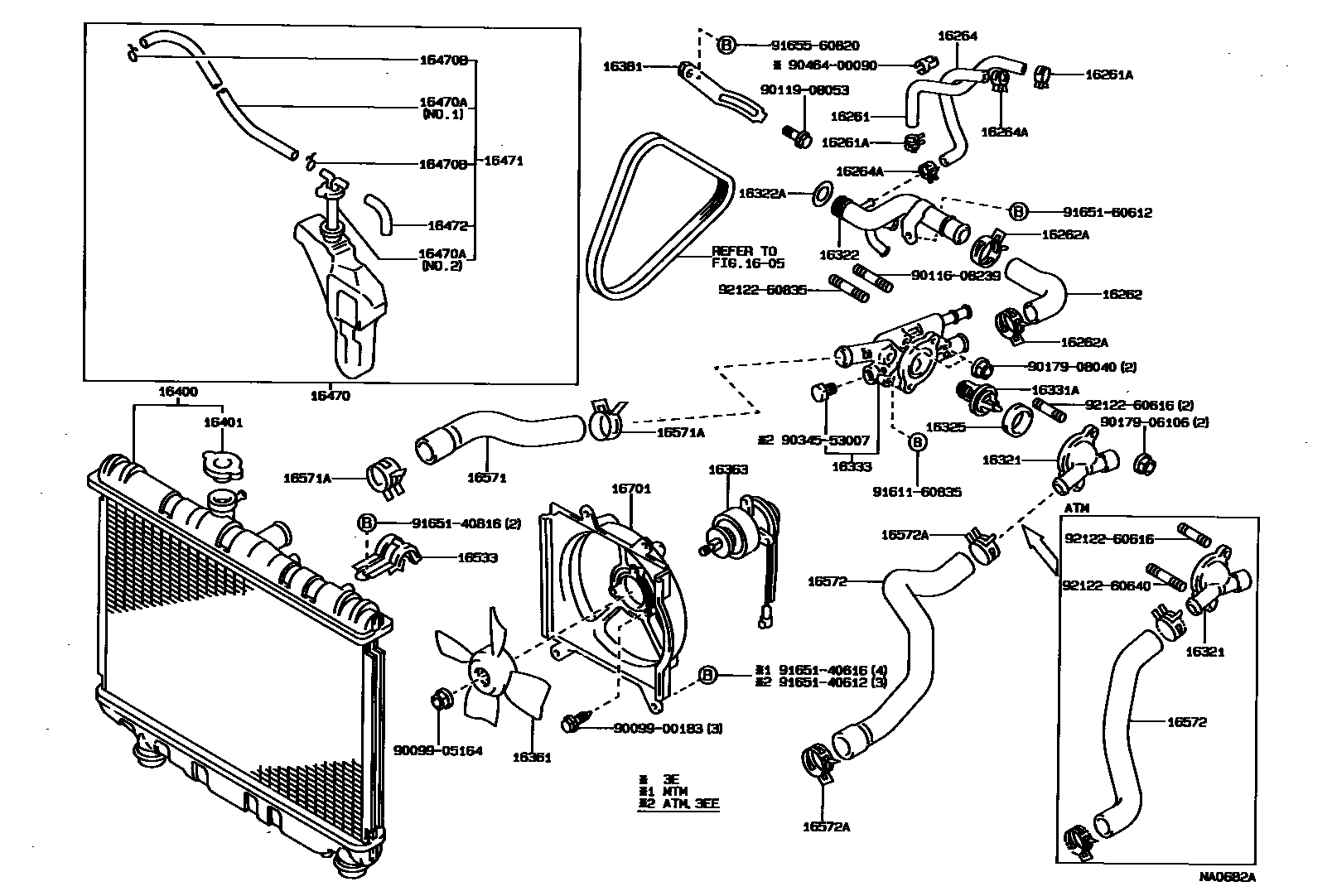

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

16261HOSE, WATER BY-PASS

main16261-11011i2E..EL30198805-199009

main16261-11020i3EE,3ETE..EL31198805-199009

main16261-11040i3E..EL31198805-199009

main16261-55030i1NT..NL30198805-199009

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2E,3E#..EL3#198901-199009

sub96135-51100

main90467-11049i3EE,3ETE..EL31198805-198901

sub90467-11009

main90467-15004i1NT..NL30198805-199009

16262HOSE, WATER INLET

main16262-10010i3EE..EL31;2E,3E..EL3#..MTM198805-199009

sub16262-10011

main16262-10020i3ETE..EL31;2E,3E..EL3#..ATM198805-199009

sub16262-10022

main16262-55010i1NT..NL30198805-199009

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i2E,3E#..EL3#198805-199009

sub90467-34004

main90467-37001i1NT..NL30198805-199009

sub90467-37003

16264HOSE, WATER BY-PASS, NO.2

main16264-11010i2E..EL30..3DS..4F..(TX,VC)198805-199009

main16264-11031i2E..EL30198805-199009

main16264-55010i1NT..NL30198805-199009

main99555-00200i3EE,3ETE..EL31198805-199009

main99555-00270i3E..EL31198805-199009

sub99555-00300

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i2E,3E#..EL3#198901-199009

sub96135-51100

main90467-11049i2E,3E..EL3#198805-198901

sub90467-11009

main90467-15004i1NT..NL30198805-199009

16321INLET, WATER

main16321-10011i2E,3E#..EL3#..MTM198805-199009

main16321-11011i2E,3E#..EL3#..ATM198805-199009

main16321-55010i1NT..NL30198805-199009

16322PIPE, WATER INLET

main16322-11010i2E,3E..EL3#198805-199009

sub16322-11081

sub16266-11010

main16322-11030i3EE,3ETE..EL31198805-199009

sub16322-11032

main16322-11050i2E..EL30198805-198912

main16322-55020i1NT..NL30198805-199009

16322ARING, O(FOR WATER INLET)

main96711-35028i2E,3E#..EL3#198805-199009

sub96761-35028

main96711-35031i1NT..NL30198805-199009

sub96761-35031

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2E,3E#..EL3#198805-199009

sub16325-63011

16331OUTLET, WATER

main16304-55010i1NT..NL30198805-199009

16331ATHERMOSTAT

main90916-03046i2E,3E#..EL3#198805-199009

16333HOUSING, WATER OUTLET

main16303-10011i2E..EL30198805-199009

sub16333-10011

main16303-11021i3EE..EL31..5F198805-199009

main16303-11030i3ETE..EL31..5F198805-199009

main16303-11040i3ETE..EL31..4FC198805-199009

main16303-11110i3E..EL31..MTM198805-199009

main16303-11120i3EE..EL31..4FC198805-199009

main16303-11130i3E..EL31..4FC198805-199009

main16303-11140i3E..EL31..3FC198805-199009

16361FAN

main16361-55010i1NT..NL30..5F198805-199009

main16361-55020i1NT..NL30..5F198805-199009

main16361-55030i1NT..NL30..4FC198805-199009

main16361-63020i3ETE..EL31..5F;2E,3E,3EE..EL3#..ATM..(CUT,GX,SOP,SXI,TX,VC,VL,VSI)198805-199009

sub16361-74070

main16361-63040i2E,3E..EL3#..MTM198805-199009

main16361-64010i3E..EL31..4FC;3EE..EL31..5F198805-199009

16363MOTOR, COOLING FAN

main16363-10010i2E,3E..EL3#..MTM198805-199009

main16363-15080i1NT..NL30..5F198805-199009

main16363-16010i3EE..EL31..5F198805-199009

main16363-16020i3ETE..EL31..5F;2E,3E,3EE..EL3#..ATM..(CUT,GX,SOP,SXI,TX,VC,VL,VSI)198805-199009

main16363-55010i1NT..NL30..5F198805-199009

main16363-64051i1NT..NL30..4FC198805-199009

16381BAR, FAN BELT ADJUSTING

main16381-11020i2E,3E..EL3#..MTM..(CUT,EX,GX,SOP,TX,VC,VL,VX)198805-199009

sub16381-11021

main16381-11030i3E..EL31..MTM..(EX,GX,VL,VX)198805-199009

main16381-55010i1NT..NL30198805-199009

16400RADIATOR ASSY

main16400-11140i3ETE..EL31..5F198805-199009

main16400-11160i3ETE..EL31..4FC198805-199009

main16400-11260i3EE..EL31..5F198805-199009

main16400-11270i2E,3E..EL3#..3FC198805-199009

main16400-11280i3E,3EE..EL31..4FC198805-199009

main16400-11290i2E,3E..EL3#..MTM198805-199009

sub16400-11260

main16400-55050i1NT..NL30..5F198805-199009

sub16400-55060

main16400-55060i1NT..NL30..4FC198805-199009

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2E,3E#..EL3#198805-199009

16470TANK ASSY, RADIATOR RESERVE

main16470-11010i2E,3E#..EL3#198805-199009

main16470-55010i1NT..NL30198805-199009

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-70070i1NT..NL30198805-199009

NO.3

main90445-12078i2E,3E#..EL3#198805-199009

main90445-12078i2E,3E#..EL3#198805-199009

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2E,3E#..EL3#198805-199009

16471CAP SUB-ASSY, RESERVE TANK

main16405-11010i2E,3E#..EL3#198805-199009

main16405-55010i1NT..NL30198805-199009

16472HOSE, BREATHER

main85338-12020i1NT..NL30198805-199009

main85338-74040i2E,3E#..EL3#198805-199009

16533SUPPORT, RADIATOR, UPPER

main16505-11041i3ETE..EL31198805-199009

main16505-11060i2E,3E,3EE..EL3#..3FC,4F,5F198805-199009

main16505-11070i3E,3EE..EL31..4FC198805-199009

main16533-55011i1NT..NL30198805-199009

16571HOSE, RADIATOR, INLET

main16571-11030i3ETE..EL31198805-199009

main16571-11071i2E,3E,3EE..EL3#198805-199009

main16571-55010i1NT..NL30198805-199009

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i2E,3E,3EE..EL3#198805-198808

sub90466-30001

main90467-31003i2E,3E,3EE..EL3#198808-199009

HOUSING SIDE

main90467-34001i1NT..NL30198805-199009

sub90467-33003

16572HOSE, RADIATOR, OUTLET

main16572-11070i3ETE..EL31..5F198805-199009

main16572-11090i3ETE..EL31..4FC198805-199009

main16572-11150i2E,3E,3EE..EL3#..MTM198805-199009

main16572-11160i2E,3E,3EE..EL3#..ATM198805-199009

main16572-55010i1NT..NL30..5F198805-199009

main16572-55020i1NT..NL30..4FC198805-199009

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i3ETE..EL31198805-199009

INLET SIDE

main90467-34001i1NT..NL30198805-199009

sub90467-33003

main90467-34003i1NT..NL30198805-199009

INLET SIDE

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-11080i3ETE..EL31..5F198805-199009

main16711-11090i3ETE..EL31..4FC198805-199009

main16711-11110i2E,3E..EL3#..MTM198805-199009

main16711-11120i3E..EL31..4FC;3EE..EL31..5F198805-199009

main16711-11130i2E,3E,3EE..EL3#..ATM..(CUT,GX,SOP,SXI,TX,VC,VL,VSI)198805-198907

sub16711-11131

main16711-11131i2E,3E,3EE..EL3#..ATM..(CUT,GX,SOP,SXI,TX,VC,VL,VSI)198907-199009

main16711-55010i1NT..NL30..5F198805-199009

main16711-55030i1NT..NL30..4FC198805-199009

main16711-55070i1NT..NL30..5F198805-199009

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011908053

main90119-08053

9017906106

main90179-06106

9017908040

main90179-08040

9034553007

main90345-53007

9046400090

main90464-00090

9161160835

main91611-60835

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

9165160612

main91651-60612

9165560820

main91655-60820

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

47 parts on this diagram · 6 diagrams in section
