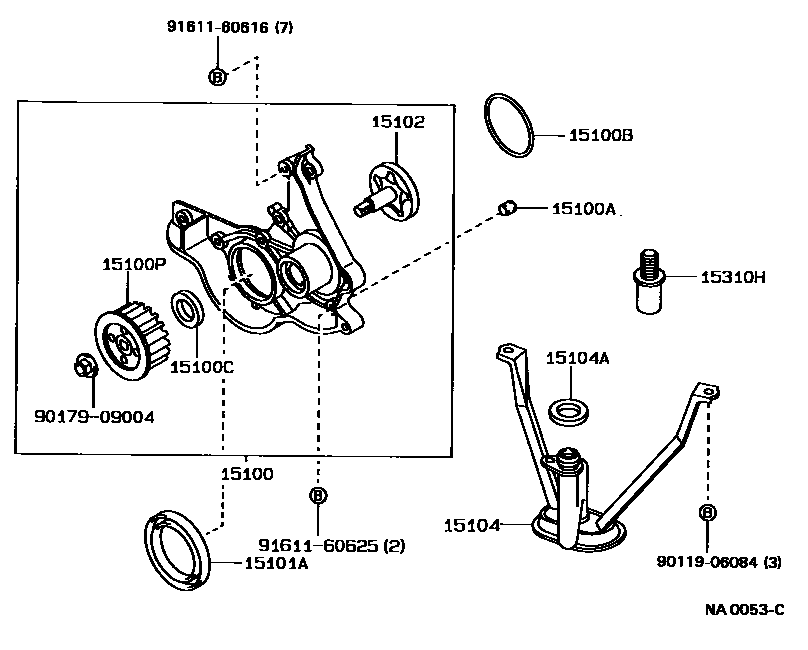

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-11021i3E#..EL31198805-199009

main15100-11050i2E..EL30198805-199009

main15100-55010i1NT..NL30198805-199009

sub15100-55011

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001i2E,3E#..EL3#198805-199009

main90253-11021i1NT..NL30198805-199009

15100BRING, O(FOR OIL PUMP)

main90301-55005i2E..EL30198907-199009

main90301-62006i3E#..EL31198909-199009

main96721-24056i2E..EL30198805-198907

main96721-24063i3E#..EL31198805-198909

15100CSEAL(FOR OIL PUMP)

main90029-21007i2E,3E#..EL3#198805-199009

sub90029-21020

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11010i2E,3E#..EL3#198805-199009

15101ASEAL(FOR CRANKSHAFT)

main90311-35013i2E,3E#..EL3#199002-199009

sub90311-35022

main90311-35017i1NT..NL30198805-199009

15102ROTOR SET, OIL PUMP

main15102-11011i3E#..EL31198805-199009

main15102-11040i2E..EL30198805-199009

15104STRAINER SUB-ASSY, OIL

main15104-10020i2E..EL30198805-199009

main15104-11020i3E#..EL31198805-199009

main15104-55010i1NT..NL30198805-199009

15104ARING, O(FOR OIL STRAINER)

main96721-24015i2E,3E#..EL3#198805-199009

15310HREGULATOR ASSY, OIL

main15310-10010i2E,3E#..EL3#198805-199009

main15310-55010i1NT..NL30198805-199009

9011906084

main90119-06084

9017909004

main90179-09004

9161160616

main91611-60616

9161160625

main91611-60625

14 parts on this diagram · 2 diagrams in section
