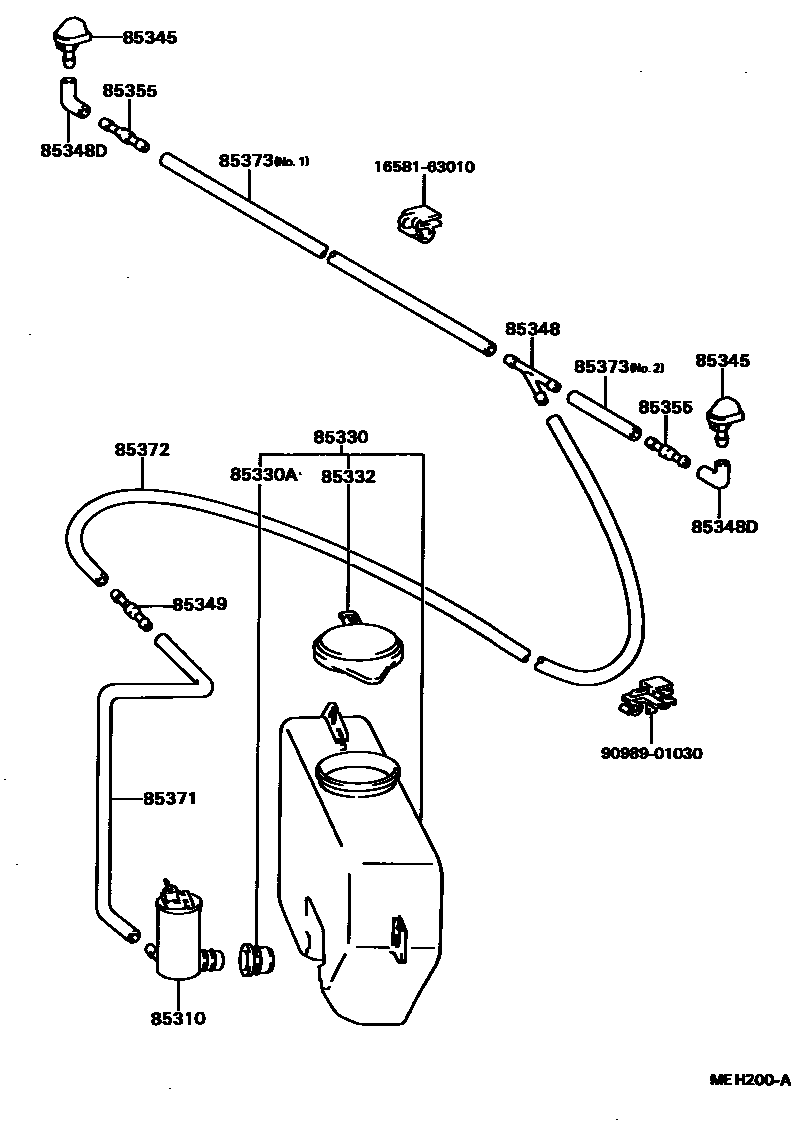

WINDSHIELD WASHER

0001 1 0002 1W/RR WIPER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iEL3#,NL30198605-198805

85330JAR ASSY, WINDSHIELD WASHER

main85331-16230iEL30,NL30..TX,VC198605-198805

1.5LITERS

main85331-16240iEL3#,NL30198605-198805

2.5LITERS

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL3#,NL30198605-198805

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iEL3#,NL30198605-198805

85345NOZZLE, WINDSHIELD WASHER

main85035-16050iEL3#,NL30198605-198805

sub85381-35040

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iEL3#,NL30198605-198805

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iNL30198605-198805

main85355-20070iEL3#198605-198705

sub85355-14481

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iEL30,NL30..TX,VC198605-198805

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iEL3#,NL30198605-198805

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iEL3#,NL30198605-198805

main90446-06013iEL3#,NL30198605-198805

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90998-91003iEL3#198605-198805

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL3#198605-198805

main90099-33299iEL3#198605-198805

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

9098901030

main90989-01030

14 parts on this diagram · 2 diagrams in section
