LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16070iEL3#,NL30198605-198805

sub69051-16080

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16070iEL3#,NL30198605-198805

sub69052-16080

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-16190iEL3#,NL30198605-198805

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12100iEL3#,NL30..CUT,GX,SOP,TX,VC,VL198605-198805

sub69058-20041

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-16080iEL3#,NL30198605-198805

sub69057-16090

69068COVER SUB-ASSY, KEY

main69555-17010iEL3#,NL30198605-198805

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iEL3#,NL30198605-198805

RH

main69759-20090iEL3#,NL30198605-198805

LH

69503CYLINDER SET, LOCK

main69005-16250iEL3#,NL30198605-198805

W/BACK DOOR OPENER

main69005-16260iEL3#,NL30..CUT,GX,SOP,TX,VC,VL198605-198805

69503AKEY, BLANK

main90999-00085iEL3#,NL30198605-198805

main90999-00106iEL3#,NL30198605-198805

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16010iEL3#,NL30198605-198805

69551RETAINER, BACK DOOR LOCK CYLINDER

main69561-16040iEL3#,NL30198605-198805

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iEL3#,NL30..CUT,GX,SOP,TX,VC,VL198605-198805

69685PAD, LOCK CYLINDER

main69513-12020iEL3#,NL30..CUT,GX,SOP,TX,VC,VL198605-198805

main69513-32010iEL30..3DS198605-198805

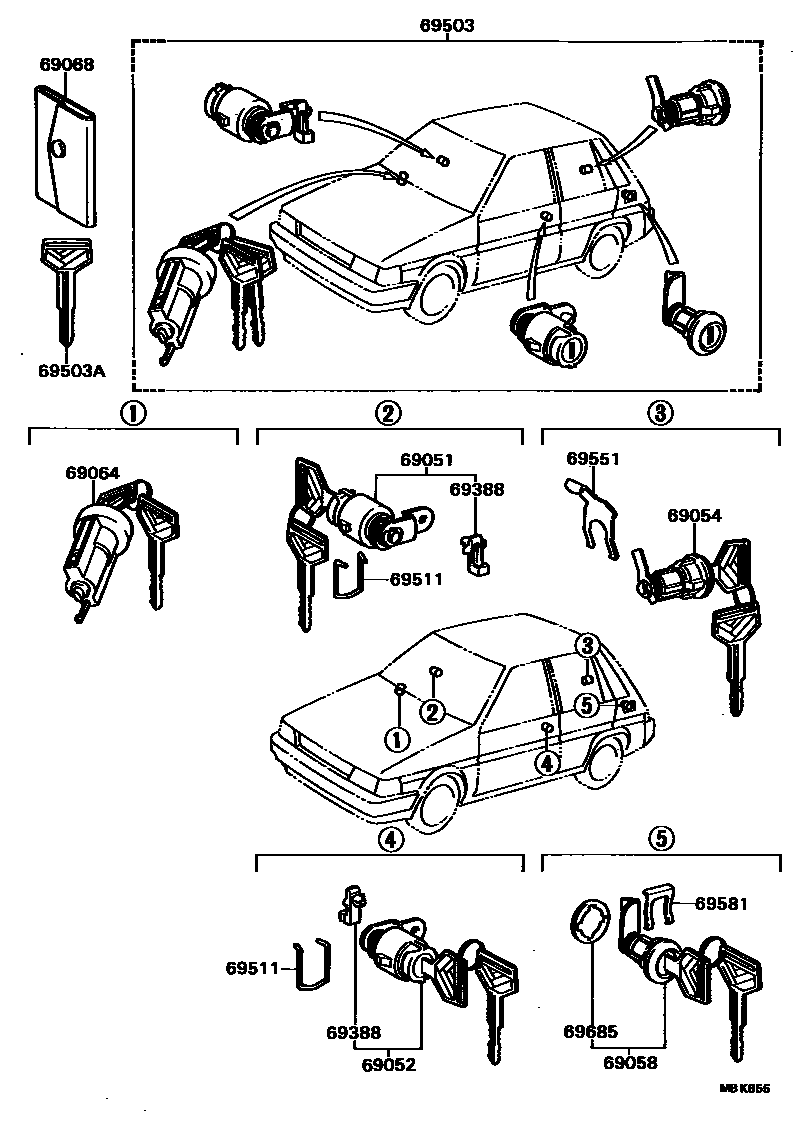

13 parts on this diagram · 1 diagram in section
