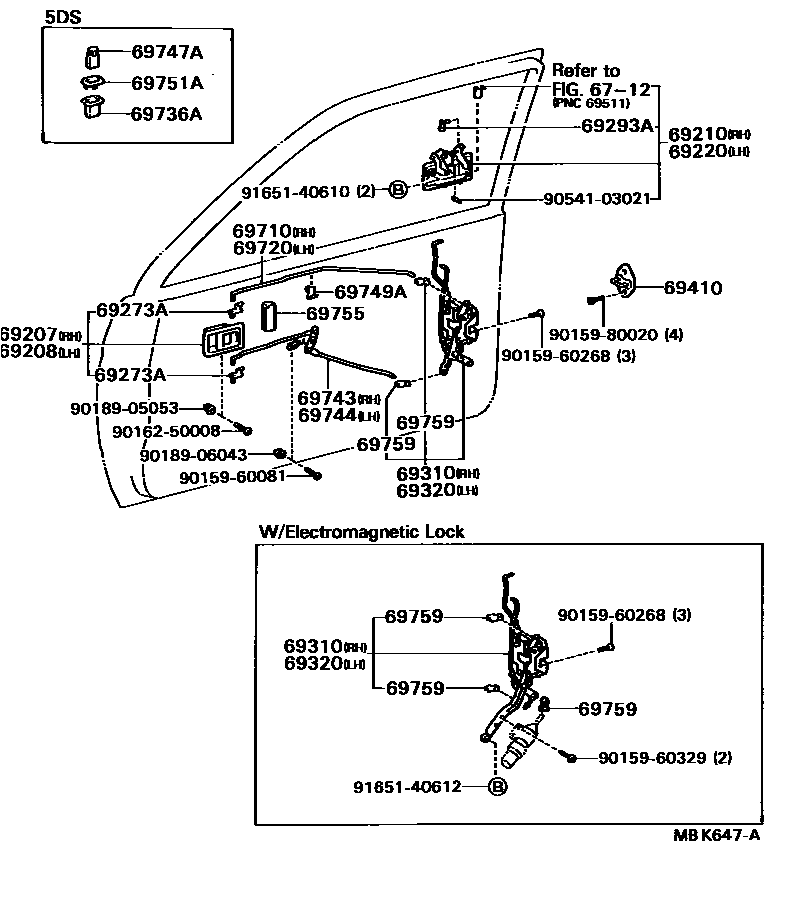

FRONT DOOR LOCK & HANDLE

6712

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-01iEL3#,NL30..5DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69205-10040

sub69205-10030

main69205-10040-05iEL3#,NL30..5DS198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-24iEL3#,NL30..5DS198605-198805

BLUE,BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69205-10050-01iEL3#,NL30..5DS198605-198805

COLD SPEC,BLACK,NEW BLACK,TRIM2#

sub69205-10050

sub69205-10030

main69205-10050-05iEL3#,NL30..5DS198605-198805

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

sub69205-10050

sub69205-10030

main69205-10050-14iEL3#,NL30..5DS198605-198805

COLD SPEC,BLUE,BLUE,TRIM8#

sub69205-10050

sub69205-10030

main69205-16050-01iEL3#..3DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69205-16050

main69205-16050-04iEL3#..3DS198605-198805

BLUE,BLUE,TRIM8#

sub69205-16050

main69205-16050-05iEL3#..3DS..(CUT,EX,GX,SOP,TX,VC,VL,VX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69205-16050

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-01iEL3#,NL30..5DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69206-10040

sub69206-10030

main69206-10040-05iEL3#,NL30..5DS198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-24iEL3#,NL30..5DS198605-198805

BLUE,BLUE,TRIM8#

sub69206-10040

sub69206-10030

main69206-10050-01iEL3#,NL30..5DS198605-198805

COLD SPEC,BLACK,NEW BLACK,TRIM2#

sub69206-10050

sub69206-10030

main69206-10050-05iEL3#,NL30..5DS198605-198805

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

sub69206-10050

sub69206-10030

main69206-10050-14iEL3#,NL30..5DS198605-198805

COLD SPEC,BLUE,BLUE,TRIM8#

sub69206-10050

sub69206-10030

main69206-16050-01iEL3#..3DS198605-198805

BLACK,NEW BLACK,TRIM2#

sub69206-16050

main69206-16050-04iEL3#..3DS198605-198805

BLUE,BLUE,TRIM8#

sub69206-16050

main69206-16050-05iEL3#..3DS..(CUT,EX,GX,SOP,TX,VC,VL,VX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69206-16050

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-16050iEL3#,NL30198605-198805

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-16050iEL3#,NL30198605-198805

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-20060iEL3#,NL30..5DS198605-198805

RH

main69759-20070iEL3#,NL30..5DS198605-198805

LH

main69759-22040iEL3#..3DS198605-198805

RH

main69759-22050iEL3#..3DS198605-198805

LH

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iEL3#,NL30198605-198805

RH

main69293-12040iEL3#,NL30198605-198805

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-16100iEL3#..3DS198605-198805

main69310-16130iEL31..3DS198605-198805

W/*EL

main69310-16150iEL3#,NL30..5DS198605-198805

sub69310-16160

main69310-16160iEL31..5DS..(EX,VX)198605-198805

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-16100iEL3#..3DS198605-198805

main69320-16130iEL31..3DS198605-198805

W/*EL

main69320-16150iEL3#,NL30..5DS198605-198805

sub69320-16160

main69320-16160iEL31..5DS..(EX,VX)198605-198805

W/*EL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iEL3#..3DS198605-198805

main69410-87001iEL3#,NL30..5DS198605-198805

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-16050iEL3#..3DS198605-198805

main69711-16060iEL3#,NL30..5DS198605-198805

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-16050iEL3#..3DS198605-198805

main69712-16060iEL3#,NL30..5DS198605-198805

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iEL3#,NL30..5DS198605-198805

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69750-16010iEL3#..3DS198605-198805

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69760-16010iEL3#..3DS198605-198805

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-90K00-01iEL3#,NL30..5DS198605-198805

BLACK,BLACK,TRIM2#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iEL3#,NL30198605-198805

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-12010-05iEL3#,NL30..5DS..(GX,TX,VC,VL)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69751-12010

main69751-12010-11iEL3#,NL30..5DS..(GX,TX,VC,VL)198605-198805

BLACK,BLACK,TRIM2#

sub69751-12010

main69751-12010-14iEL3#,NL30..5DS..(GX,TX,VC,VL)198605-198805

BLUE,BLUE,TRIM8#

sub69751-12010

main69751-20060-11iEL3#,NL30..5DS..(CUT,EX,SOP,VX)198605-198805

BLACK,BLACK,TRIM2#

sub69751-20060

sub69751-12030

main69751-20060-24iEL3#,NL30..5DS..(CUT,EX,SOP,VX)198605-198805

BLUE,BLUE,TRIM8#

sub69751-20060

sub69751-12030

main69751-20060-25iEL3#,NL30..5DS..(CUT,EX,SOP,VX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

sub69751-20060

sub69751-12030

69755SILENCER, FRONT DOOR LOCK LINK

main69759-14030iEL3#..3DS198605-198805

sub69759-14010

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iEL3#,NL30..5DS198605-198805

LH

main69759-20050iEL3#,NL30..5DS198605-198805

RH

main69759-20080iEL31..3DS198605-198805

W/*EL,LH,ORANGE

main69759-20080iEL31..3DS198605-198805

LH,ORANGE

main69759-20090iEL3#..3DS198605-198805

RH,PINK

main69759-20090iEL3#..3DS198605-198805

W/*EL,RH,PINK

main69759-20100iEL31..3DS198605-198805

W/*EL,LH,RED

main69759-20110iEL31..3DS198605-198805

W/*EL,RH,BLACK

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980020

main90159-80020

9016250008

main90162-50008

9018905053

main90189-05053

9018906043

main90189-06043

9054103021

main90541-03021

9165140610

main91651-40610

9165140612

main91651-40612

30 parts on this diagram · 1 diagram in section
