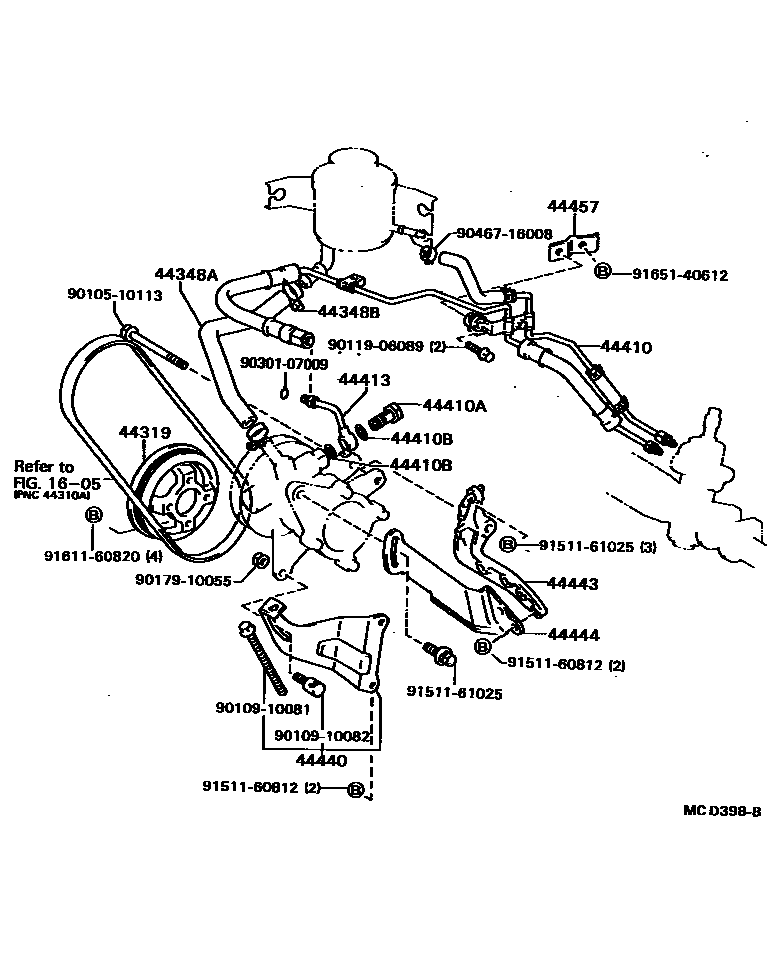

POWER STEERING TUBE

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

44319PULLEY, VANE PUMP DRIVE

main44319-16020iEL3#198605-198805

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16010iEL3#..CBR198605-198805

main44348-16020iNL30198605-198805

main44348-16030iEL31..TBO198609-198805

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iEL3#,NL30198605-198805

44410TUBE ASSY, PRESSURE FEED

main44410-16020iEL3#..CBR198605-198805

main44410-16050iEL31..TBO198609-198805

W/TEMS

main44410-16060iNL30198605-198805

main44410-16070iEL31..TBO198609-198805

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16005iEL3#198605-198607

main90401-16008iNL30198605-198805

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242iEL3#,NL30198605-198805

44413TUBE, PRESSURE FEED, NO.1

main44413-16020iEL3#..CBR198605-198805

main44413-16030iEL31..TBO198609-198805

44440BRACKET ASSY, PUMP

main44440-16010iEL30198605-198805

main44440-16020iEL31..CBR198605-198805

44443BRACKET, PUMP

main44443-10020iEL31..TBO198609-198805

main44443-16010iEL3#..CBR198605-198805

main44443-16030iNL30198605-198805

44444STAY, PUMP, REAR

main44444-10020iEL31..TBO198609-198805

main44444-16010iEL3#..CBR198605-198805

44457BRACKET, TUBE SUPPORT, NO.1

main44457-16010iEL3#198605-198805

main44457-16030iNL30198605-198805

9010510113

main90105-10113

9010910081

main90109-10081

9010910082

main90109-10082

9011906089

main90119-06089

9017910055

main90179-10055

9030107009

main90301-07009

9046716008

main90467-16008

9151160812

main91511-60812

9151161025

main91511-61025

9161160820

main91611-60820

9165140612

main91651-40612

23 parts on this diagram · 3 diagrams in section
