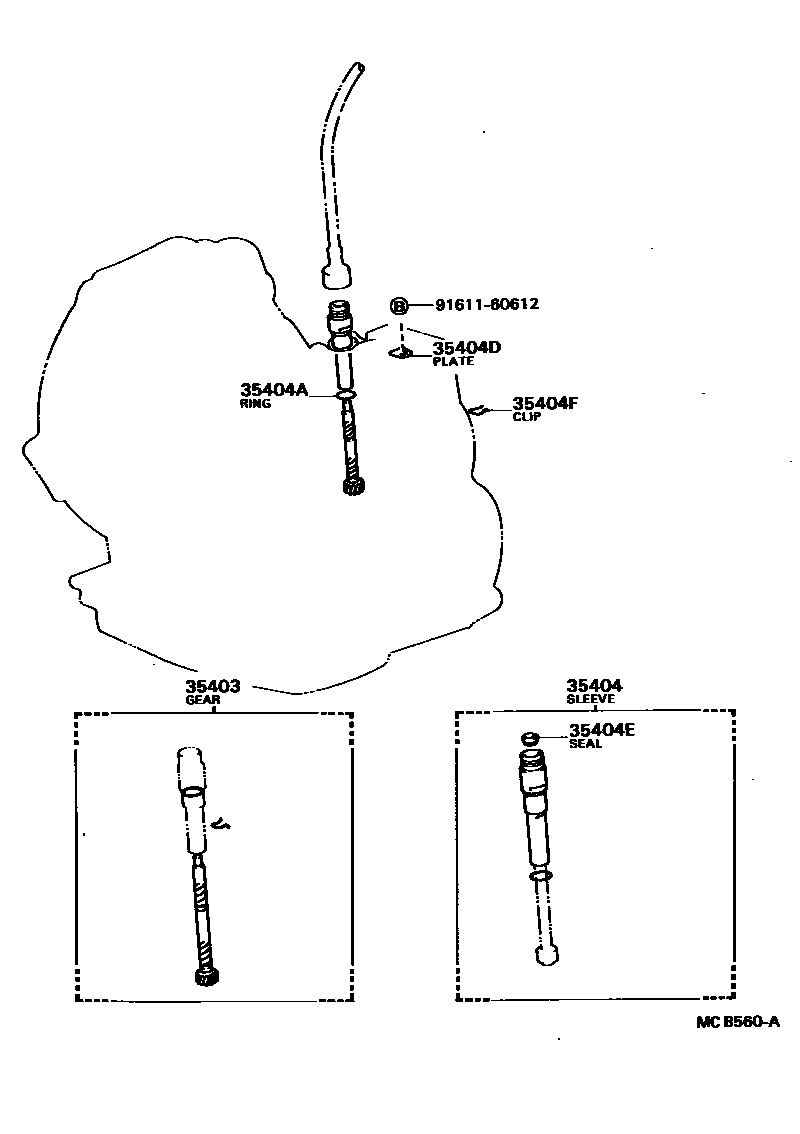

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19355iEL31..4FC198605-198701

N=31,165/70SR13 OR 175/60R14

main33403-19375iEL3#..3FC198605-198805

N=23

main33403-19385iEL31..4FC..(EX,VX)198605-198701

N=30,155SR13 TIRE

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iEL31,NL30..4FC198605-198805

main33404-32010iEL3#..3FC198605-198805

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iEL3#..3FC198605-198805

main96711-24030iEL31,NL30..4FC198605-198805

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iEL3#..3FC198605-198805

main33485-30020iEL31,NL30..4FC198605-198805

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iEL3#,NL30..ATM198605-198805

35404FCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iEL3#,NL30..ATM198605-198805

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
