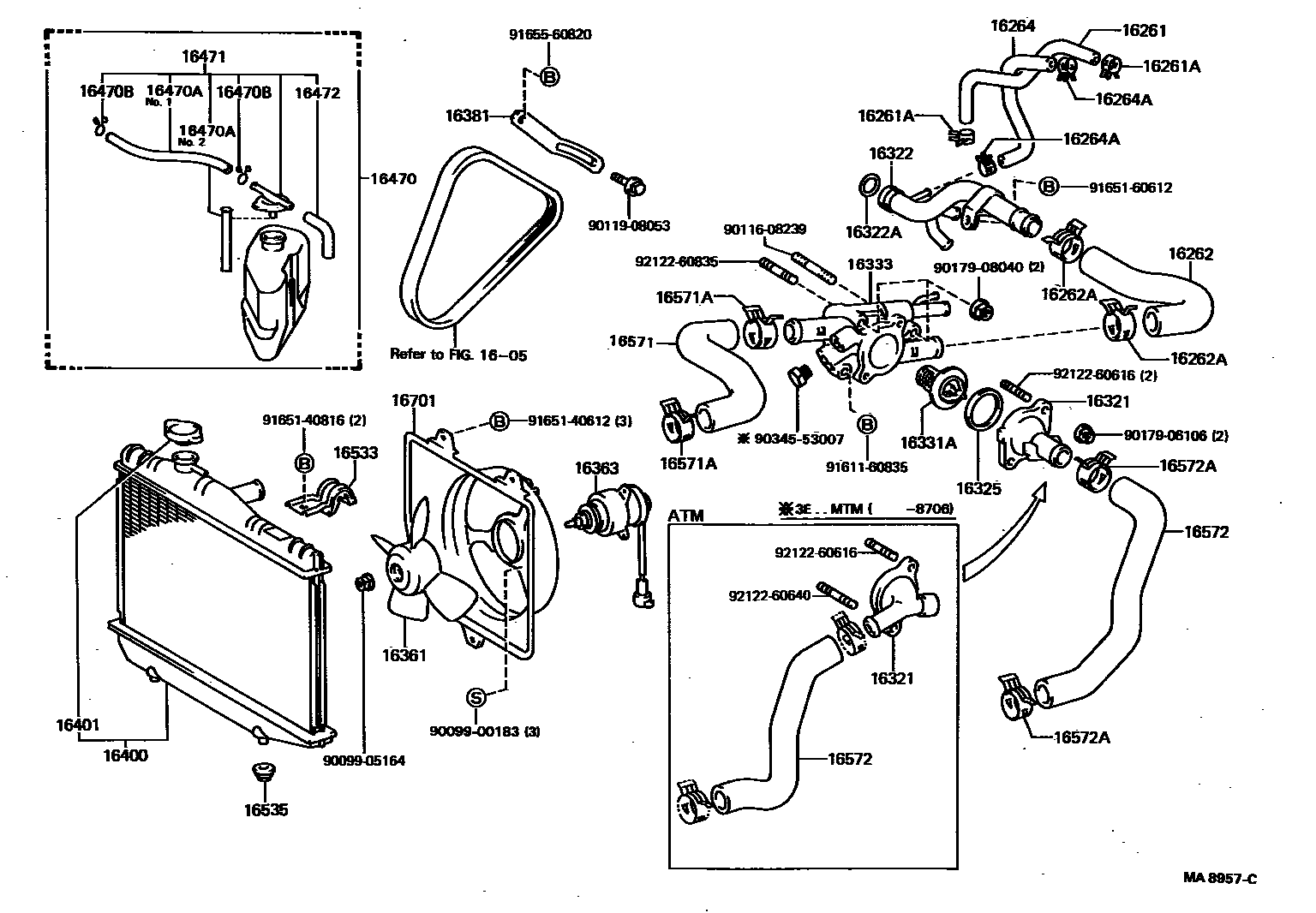

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605

16261HOSE, WATER BY-PASS

main16261-11010i2E..EL30198605-198705

sub16261-11011

main16261-11011i2E..EL30198705-198805

main16261-11020i3ETE..EL31198609-198805

main16261-11040i3E..EL31198605-198805

main16261-55010i1NT..NL30198605-198612

main16261-55030i1NT..NL30198612-198805

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2E,3E#..EL3#198605-198802

sub96135-51100

main90467-11049i2E,3E#..EL3#198802-198805

sub90467-11009

main90467-15004i1NT..NL30198605-198805

16262HOSE, WATER INLET

main16262-10010i2E,3E..EL3#..MTM198605-198805

sub16262-10011

main16262-10020i3ETE..EL31198605-198805

sub16262-10022

main16262-55010i1NT..NL30198605-198805

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002i3E..EL31198605-198805

sub90467-34003

main90467-34003i2E,3ETE..EL3#198605-198805

sub90467-34004

main90467-37001i1NT..NL30198605-198805

sub90467-37003

16264HOSE, WATER BY-PASS, NO.2

main16264-11010i2E..EL30..3DS..4F..(TX,VC)198608-198805

*52

main16264-11030i2E..EL30198609-198705

sub16264-11031

main16264-11031i2E..EL30198705-198805

main16264-55010i1NT..NL30198605-198805

main99555-00200i3ETE..EL31198609-198805

main99555-00250i2E..EL30198605-198609

sub99555-00260

main99555-00270i3E..EL31198605-198805

sub99555-00300

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i2E,3E#..EL3#198605-198802

sub96135-51100

main90467-11049i2E,3E#..EL3#198802-198805

sub90467-11009

main90467-15004i1NT..NL30198605-198805

16321INLET, WATER

main16321-10011i2E,3E#..EL3#..MTM198605-198805

main16321-11011i2E,3E#..EL3#..ATM198605-198805

main16321-55010i1NT..NL30198605-198805

16322PIPE, WATER INLET

main16322-11010i3E..EL31198605-198805

sub16322-11081

sub16266-11010

main16322-11030i3ETE..EL31198609-198805

sub16322-11032

main16322-11050i2E..EL30198605-198805

main16322-55020i1NT..NL30198605-198805

16322ARING, O(FOR WATER INLET)

main96711-35028i2E,3E#..EL3#198605-198805

sub96761-35028

main96711-35031i1NT..NL30198605-198805

sub96761-35031

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i2E,3E#..EL3#198605-198805

sub16325-63011

16331OUTLET, WATER

main16304-55010i1NT..NL30198605-198805

16331ATHERMOSTAT

main90916-03046i1NT..NL30198605-198805

16333HOUSING, WATER OUTLET

main16303-10011i2E..EL30198605-198805

sub16333-10011

main16303-11030i3ETE..EL31..5F198609-198805

main16303-11040i3ETE..EL31..4FC198702-198805

main16303-11050i3E..EL31198605-198805

sub16333-11190

main16303-11110i3E..EL31..MTM198706-198805

16361FAN

main16361-55010i1NT..NL30..5F198605-198805

main16361-55020i1NT..NL30..4FC198605-198805

NO.2

main16361-55030i1NT..NL30..4FC198605-198805

NO.1

main16361-63020i3E..EL31..4FC..(EX,VX)198605-198805

sub16361-74070

main16361-63040i2E,3E..EL3#..MTM198605-198805

main16361-64010i2E..EL30..3FC198605-198805

16363MOTOR, COOLING FAN

main16363-10010i2E,3E..EL3#..MTM198605-198805

main16363-15080i1NT..NL30..4FC198609-198805

NO.2

main16363-16010i2E..EL30..3FC198605-198805

main16363-16020i3E..EL31..4FC..(EX,VX)198605-198805

main16363-55010i3ETE..EL31..4FC198605-198805

main16363-64051i1NT..NL30..4FC198609-198805

NO.1

16381BAR, FAN BELT ADJUSTING

main16381-11020i3E..EL31..5F..(EX,VX)198605-198805

sub16381-11021

main16381-11030i3E..EL31..5F..(EX,VX)198605-198805

COLD SPEC

main16381-11030i3ETE..EL31198609-198805

main16381-55010i1NT..NL30198605-198805

16400RADIATOR ASSY

main16400-11110i2E,3E..EL3#..MTM198605-198805

main16400-11120i2E,3E..EL3#..ATM198605-198805

main16400-11140i3ETE..EL31..5F198609-198805

main16400-11160i3ETE..EL31..4FC198702-198805

main16400-55010i1NT..NL30..5F198605-198611

sub16400-55011

main16400-55011i1NT..NL30..5F198611-198701

sub16400-55012

main16400-55012i1NT..NL30..5F198701-198805

sub16400-55022

main16400-55020i1NT..NL30..4FC198609-198611

sub16400-55021

main16400-55021i1NT..NL30..4FC198611-198701

sub16400-55022

main16400-55022i1NT..NL30..4FC198701-198805

sub16400-55060

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2E,3E#..EL3#198605-198805

16470TANK ASSY, RADIATOR RESERVE

main16470-11010i2E,3E#..EL3#198605-198805

main16470-55010i1NT..NL30198605-198805

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-70070i1NT..NL30198605-198805

NO.3

main90445-12078i1NT..NL30198605-198805

main90445-12078i2E,3E..EL3#198605-198609

main90445-12078i2E,3E#..EL3#198605-198805

main90445-12078i2E,3E#..EL3#198609-198805

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2E,3E#..EL3#198605-198805

16471CAP SUB-ASSY, RESERVE TANK

main16405-11010i2E,3E#..EL3#198605-198805

main16405-55010i1NT..NL30198605-198805

16472HOSE, BREATHER

main85338-10020i2E,3E..EL3#198605-198609

sub85338-74040

main85338-12020i1NT..NL30198605-198805

main85338-74040i2E,3E#..EL3#198609-198805

16533SUPPORT, RADIATOR, UPPER

main16505-11030i2E..EL30..4F198605-198805

main16505-11040i2E,3E..EL3#..ATM198605-198609

sub16505-11041

main16505-11041i3ETE..EL31198609-198805

main16505-11050i3E..EL31..MTM198605-198610

sub16505-11051

main16505-11051i3E..EL31..MTM198610-198805

main16533-55010i1NT..NL30198605-198701

sub16533-55011

main16533-55011i1NT..NL30198701-198805

16535SUPPORT, RADIATOR, LOWER

main16535-55010i1NT..NL30198605-198805

main16535-55020i2E,3E#..EL3#..ATM198711-198805

main16535-63030i3E#..EL31..MTM198605-198711

main90480-15015i2E..EL30..4F198605-198805

16571HOSE, RADIATOR, INLET

main16571-11030i3ETE..EL31198609-198805

main16571-11040i2E,3E..EL3#198605-198805

main16571-55010i1NT..NL30198605-198805

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i2E,3E#..EL3#198605-198805

sub90466-30001

main90467-34001i1NT..NL30198605-198805

sub90467-33003

16572HOSE, RADIATOR, OUTLET

main16572-11070i2E,3E#..EL3#..MTM198605-198805

main16572-11080i2E,3E..EL3#..ATM198605-198805

main16572-11090i3ETE..EL31..4FC198702-198805

main16572-55010i1NT..NL30..5F198605-198805

main16572-55020i1NT..NL30..4FC198609-198805

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i2E,3E#..EL3#198605-198805

main90467-34001i1NT..NL30198605-198805

RADIATOR SIDE

sub90467-33003

main90467-34003i1NT..NL30198605-198805

INLET SIDE

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-11060i2E,3E..EL3#..MTM198605-198805

main16711-11070i2E..EL30..3FC198605-198805

main16711-11080i3E..EL31..4FC..(EX,VX)198605-198805

main16711-11090i3ETE..EL31..4FC198702-198805

main16711-55010i1NT..NL30..5F198605-198805

main16711-55020i1NT..NL30..4FC198609-198805

NO.2

main16711-55030i1NT..NL30..4FC198609-198805

NO.1

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011908053

main90119-08053

9017906106

main90179-06106

9017908040

main90179-08040

9034553007

main90345-53007

9161160835

main91611-60835

9165140612

main91651-40612

9165140816

main91651-40816

9165160612

main91651-60612

9165560820

main91655-60820

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

46 parts on this diagram · 5 diagrams in section
