ENGINE OVERHAUL GASKET KIT

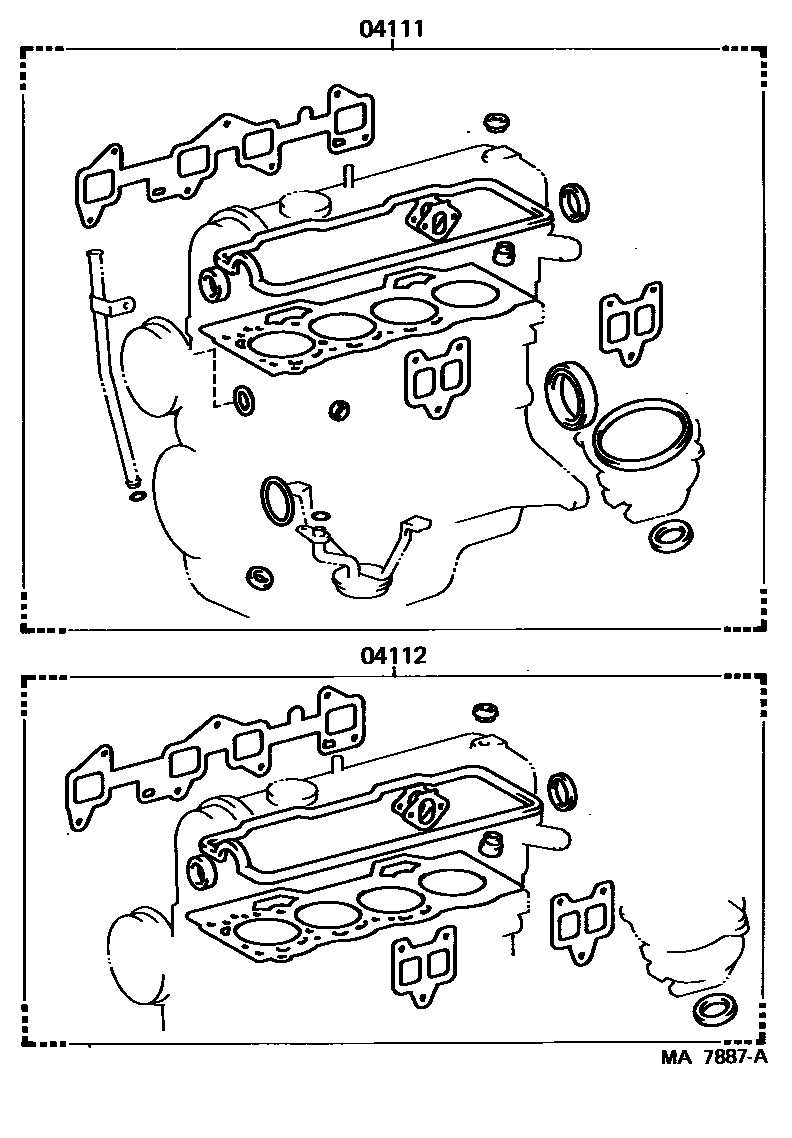

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11021i198605-198805
sub04111-11022
main04111-11050i198605-198708
sub04111-11051
main04111-11051i198708-198805
sub04111-11052
main04111-11060i198609-198805
sub04111-11061
main04111-55010i198605-198805
sub04111-55011
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11010i198605-198805
sub04112-11011
main04112-11040i198605-198805
sub04112-11041
main04112-11050i198609-198805
sub04112-11051
main04112-55010i198605-198805
sub04112-55011

2 parts on this diagram · 3 diagrams in section
