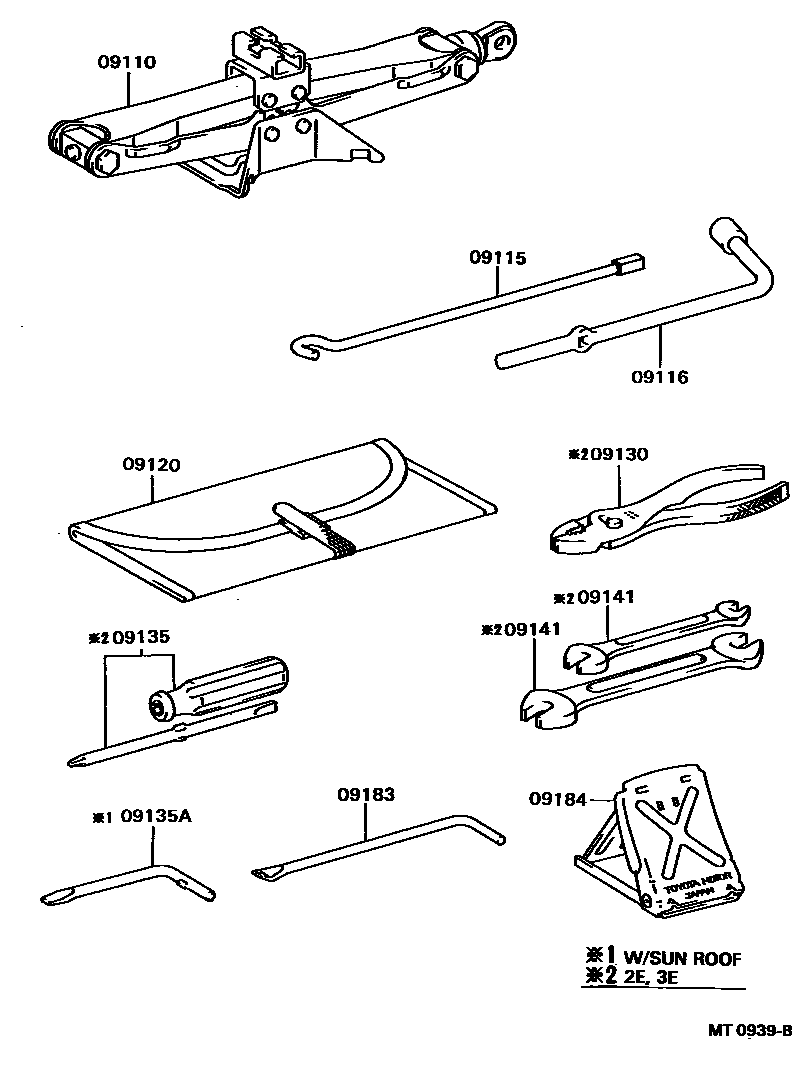

STANDARD TOOL

09110JACK ASSY

main09111-12100iEL3#,NL30198707-198805

sub09111-20060

main09111-20060iEL3#,NL30198605-198707

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iEL3#,NL30198605-198805

09116LEVER, JACK HANDLE

main09116-16010iEL3#,NL30198605-198805

09120BAG, TOOL

main09120-10030iEL3#,NL30198605-198805

09130PLIERS

main99913-11500iEL3#,NL30198605-198805

09135DRIVER, SCREW

main99915-10700iEL3#,NL30198605-198805

09135ABIT, SCREW DRIVER

main09135-00012iEL31..GP,SX,VS198605-198805

W/SUN ROOF

09141SPANNER

main99914-10810iEL3#,NL30198605-198805

main99914-11214iEL3#,NL30198605-198805

09183WRENCH, WHEEL CAP

main09183-16010iEL3#,NL30198605-198805

09184STOPPER, WHEEL

main09184-00010iEL3#,NL30198605-198805

10 parts on this diagram · 1 diagram in section
