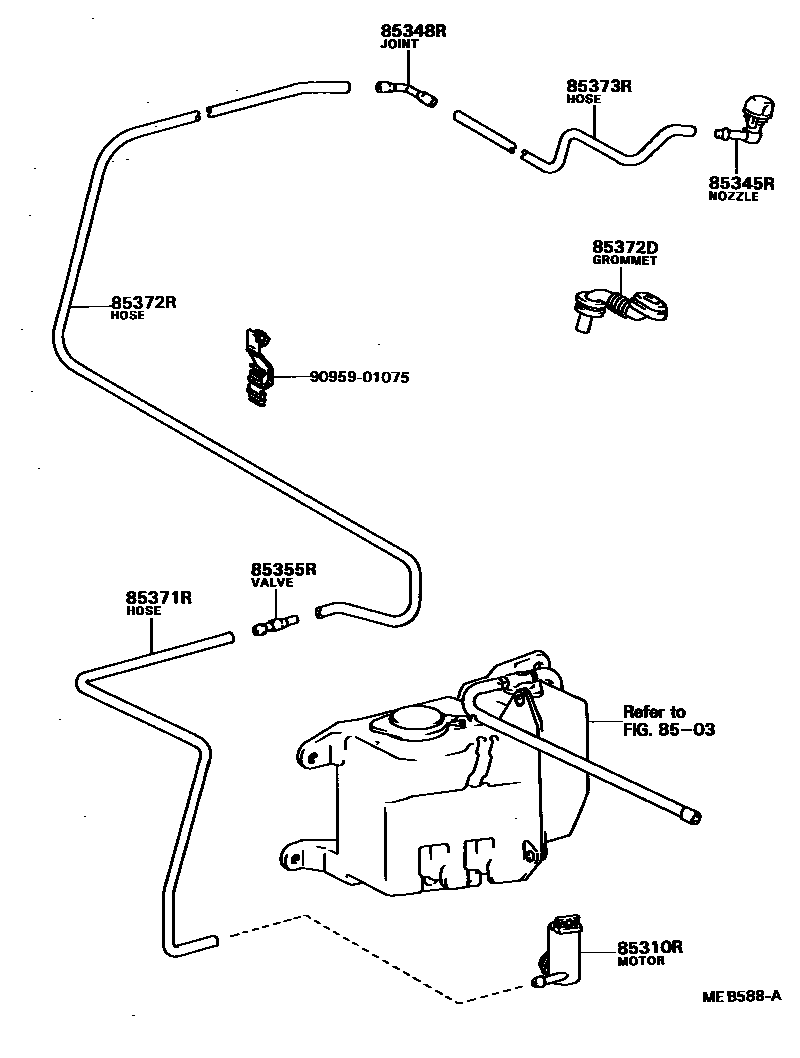

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85310RMOTOR ASSY, REAR WASHER

main85310-16030iAL25198208-198408

main85310-22080iAL25198408-198801

85345RNOZZLE, REAR WASHER

main85035-16050iAL25198208-198301

main85341-16090iAL25198301-198801

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20080iAL25198208-198801

85355RVALVE, REAR WASHER HOSE

main85031-12250iAL25198708-198801

main85031-14080iAL25198208-198708

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iAL25..CBR198408-198801

main90446-07001iAL25..TCBR198408-198501

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAL25198208-198801

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33054iAL25198311-198603

L=3720

main90099-33177iAL25198603-198801

main90099-33406iAL25198208-198311

L=3850

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAL25198208-198801

9095901075

main90959-01075

10 parts on this diagram · 1 diagram in section
