Toyota SPRINTER CARIB 157 — SWITCH & RELAY & COMPUTER

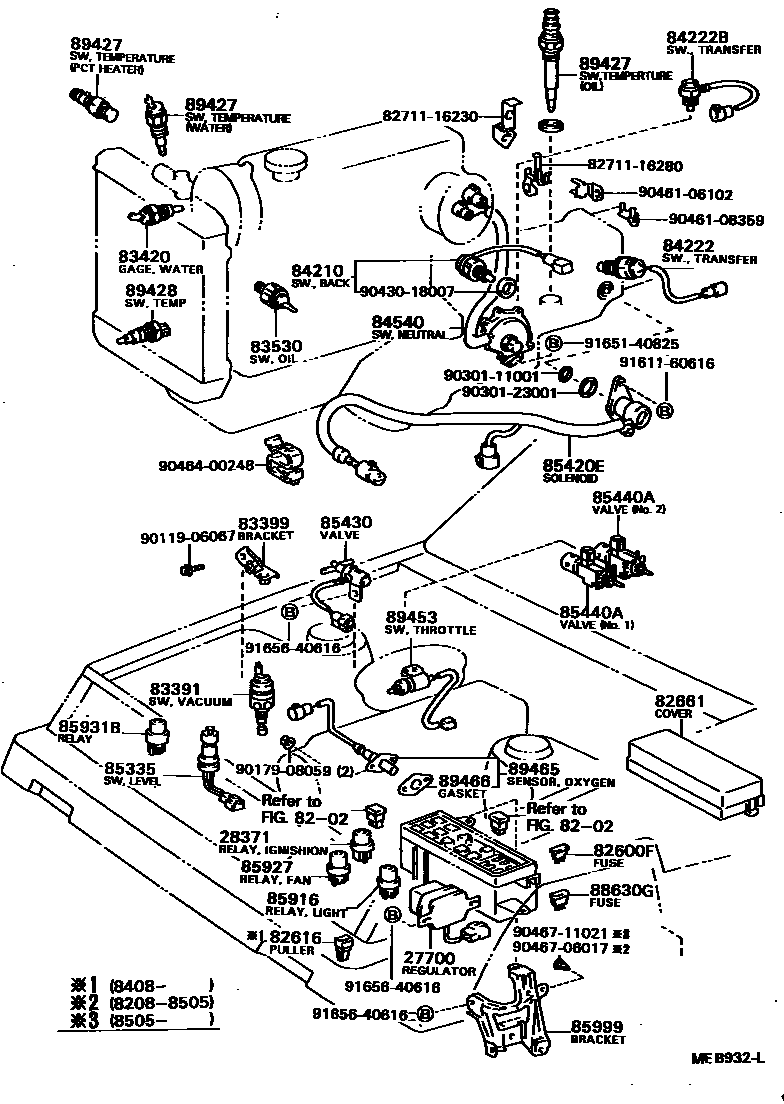

Parts diagram

27700REGULATOR ASSY, GENERATOR

28371RELAY, IGNITION, NO.1

8202WIRING & CLAMP

→ Go to FIG 82-02

82600FFUSE, FUSE BLOCK

82616PULLER, FUSE

82661COVER, RELAY BLOCK, NO.1

83391SWITCH, VACUUM

83399BRACKET, VACUUM SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210SWITCH ASSY, BACK-UP LAMP

84222SWITCH, TRANSFER INDICATOR, NO.1

84222BSWITCH, TRANSFER INDICATOR, NO.2

84540SWITCH ASSY, NEUTRAL START

85335SWITCH ASSY, WASHER LEVEL WARNING

85420ESOLENOID ASSY, TRANSMISSION

85430VALVE, OUTER VENT CONTROL

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

85916RELAY, LIGHT CONTROL

85927RELAY, COOLING FAN

85931BRELAY, FUEL HEATER

85999BRACKET, COMBINATION RELAY

88630GRELAY ASSY, COOLER

89427SWITCH, TEMPERATURE DETECT

89428SWITCH, TEMPERATURE DETECT, NO.2

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

89465SENSOR, OXYGEN

89466GASKET, OXYGEN SENSOR

8271116230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271116280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9011906067

9017908059

9030111001

9030123001

9043018007

9046106102

9046108359

9046400248

9046706017

9046711021

9161160616

9165140825

9165640616

43 parts on this diagram · 4 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota SPRINTER CARIB 157

This section contains 108 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota SPRINTER CARIB 157. Key components include: REGULATOR ASSY, GENERATOR, RELAY, IGNITION, NO.1, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP, FUSE, FUSE BLOCK.
