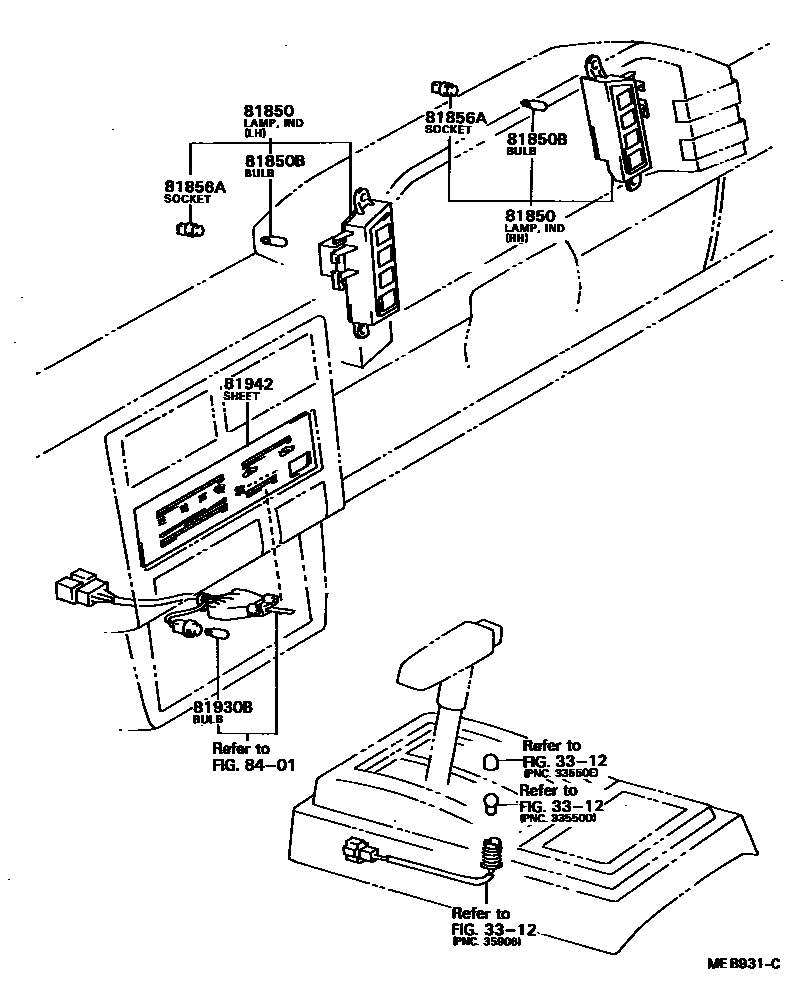

INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-16010iAL25..AV1198208-198801

LH

main81850-16020iAL25198208-198801

RH

main81850-16040iAL25..AV2198208-198408

LH

main81850-16160iAL25..AV1198309-198408

LH,RV SPECIAL

main81850-16170iAL25..AV2198408-198801

LH

main81850-16220iAL25..AV1198408-198801

LH,RV SPECIAL

81850BBULB, INDICATOR LAMP

main90981-11018iAL25198208-198801

81856ASOCKET, INDICATOR LAMP

main83101-14040iAL25198208-198801

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11014iAL25198208-198801

81942SHEET, HEATER CONTROL NAME

main81942-16020iAL25198208-198408

sub81942-16021

main81942-16021iAL25..AV1198408-198605

sub81942-16022

main81942-16022iAL25..AV1198605-198801

main81942-16040iAL25..AV2198208-198408

AUTOMATIC AIR CONDITIONER

sub81942-16041

main81942-16070iAL25..AV2198408-198605

sub81942-16071

main81942-16071iAL25..AV2198605-198801

main81942-16080iAL25..AV2198408-198605

AUTOMATIC AIR CONDITIONER

sub81942-16081

main81942-16081iAL25..AV2198605-198801

AUTOMATIC AIR CONDITIONER

8401

7 parts on this diagram · 1 diagram in section
