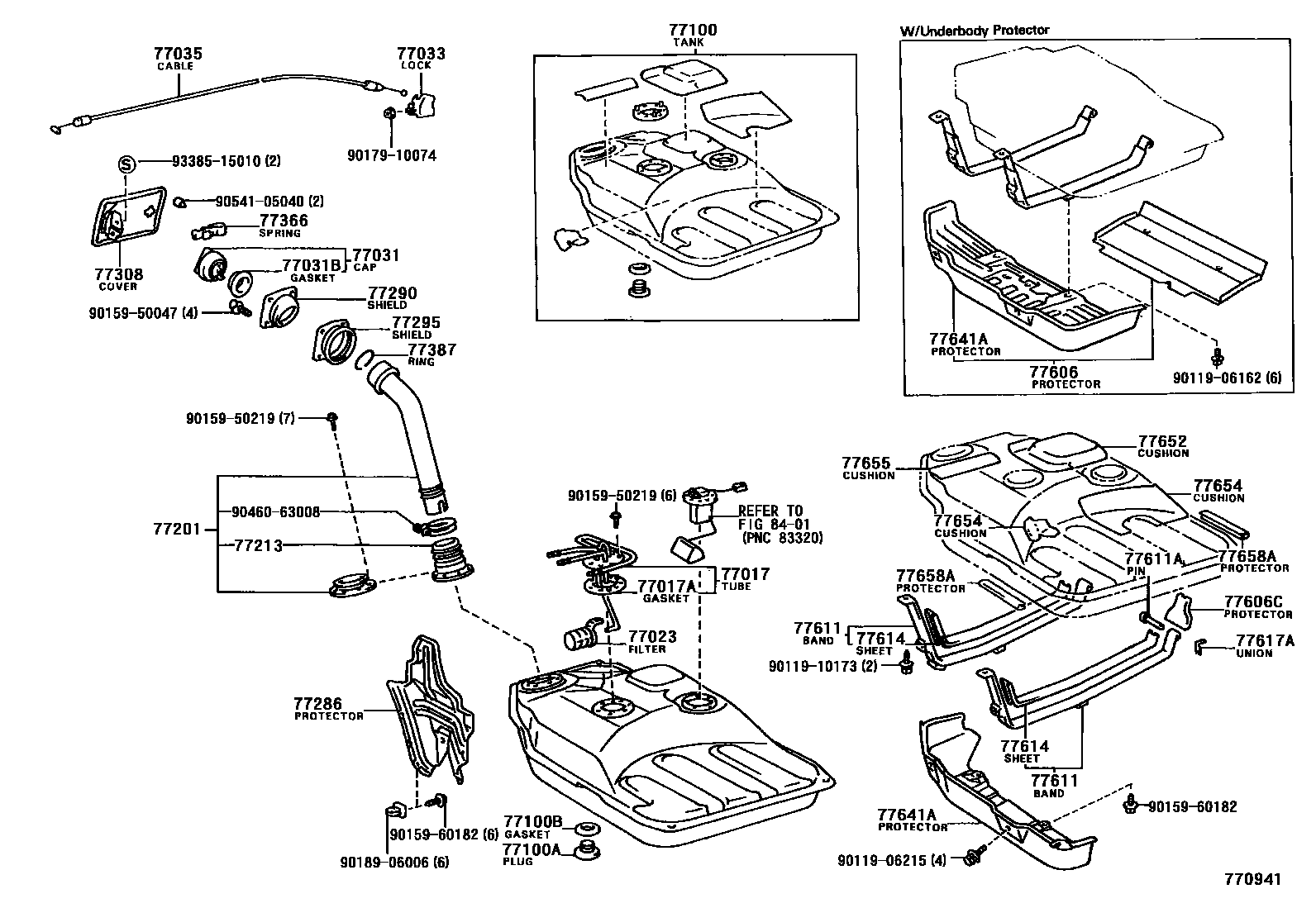

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12210iAL25198305-198408

main77017-12240iAL25198408-198701

main77017-12260iAL25198704-198801

main77017-16050iAL25198208-198305

main77017-16080iAL25198701-198704

77017AGASKET, FUEL TANK VENT

main77178-10010iAL25198208-198801

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iAL25198208-198801

77031CAP ASSY, FUEL TANK

main77310-12100iAL25198208-198801

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iAL25198208-198801

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iAL25198304-198801

main77037-24010iAL25198208-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16040iAL25198208-198801

77100TANK ASSY, FUEL

main77001-19205iAL25198208-198801

77100APLUG(FOR FUEL TANK)

main90341-20004iAL25198408-198801

main90341-24036iAL25198208-198408

77100BGASKET(FOR FUEL TANK)

main90430-20007iAL25198408-198801

main90430-24047iAL25198208-198408

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12290iAL25198605-198801

main77201-16060iAL25198208-198605

77213HOSE, FUEL TANK SUB INLET

main77213-14090iAL25198208-198801

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-16040iAL25198208-198801

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16010iAL25198208-198801

77295SHIELD, FUEL FILLER PIPE

main77293-16020iAL25198208-198801

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-16070iAL25198208-198801

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iAL25198208-198801

77387RING, FUEL INLET BOX

main77391-16030iAL25198208-198801

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-16010iAL25198208-198801

W/UNDER BODY PROTECTOR

77606CPROTECTOR, FUEL TANK, NO.2

main77642-12010×2iAL25198208-198801

77611BAND, FUEL TANK

main77601-16040iAL25198208-198801

RH,W/UNDER BODY PROTECTOR

main77601-16050iAL25198208-198801

RH

main77602-12030iAL25198208-198505

LH

main77602-16040iAL25198208-198605

LH,W/UNDER BODY PROTECTOR

77611APIN (FOR FUEL TANK BAND)

main90240-08020×2iAL25198208-198801

77614SEAT, FUEL TANK BAND

main77654-12021×2iAL25198408-198801

77617AUNION, AUXILIARY FUEL BAND

main77617-12010×2iAL25198208-198801

77641APROTECTOR, FUEL TANK, NO.1

main77641-12100iAL25198208-198801

W/UNDER BODY PROTECTOR

main77641-16030iAL25198208-198801

77652CUSHION, FUEL TANK, NO.1

main77651-12041iAL25198512-198801

150X150

main77651-16050iAL25198208-198512

150X150

77654CUSHION, FUEL TANK, NO.2

main77652-12041iAL25198208-198801

220X155

main77655-12021iAL25198208-198801

210X210

77655CUSHION, FUEL TANK, NO.3

main77653-12031iAL25198208-198801

200X90

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-12010×2iAL25198208-198801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906162

main90119-06162

9011906215

main90119-06215

9011910173

main90119-10173

9015950047

main90159-50047

9015950219

main90159-50219

9015960182

main90159-60182

9017910074

main90179-10074

9018906006

main90189-06006

9046063008

main90460-63008

9054105040

main90541-05040

9338515010

main93385-15010

41 parts on this diagram · 2 diagrams in section
