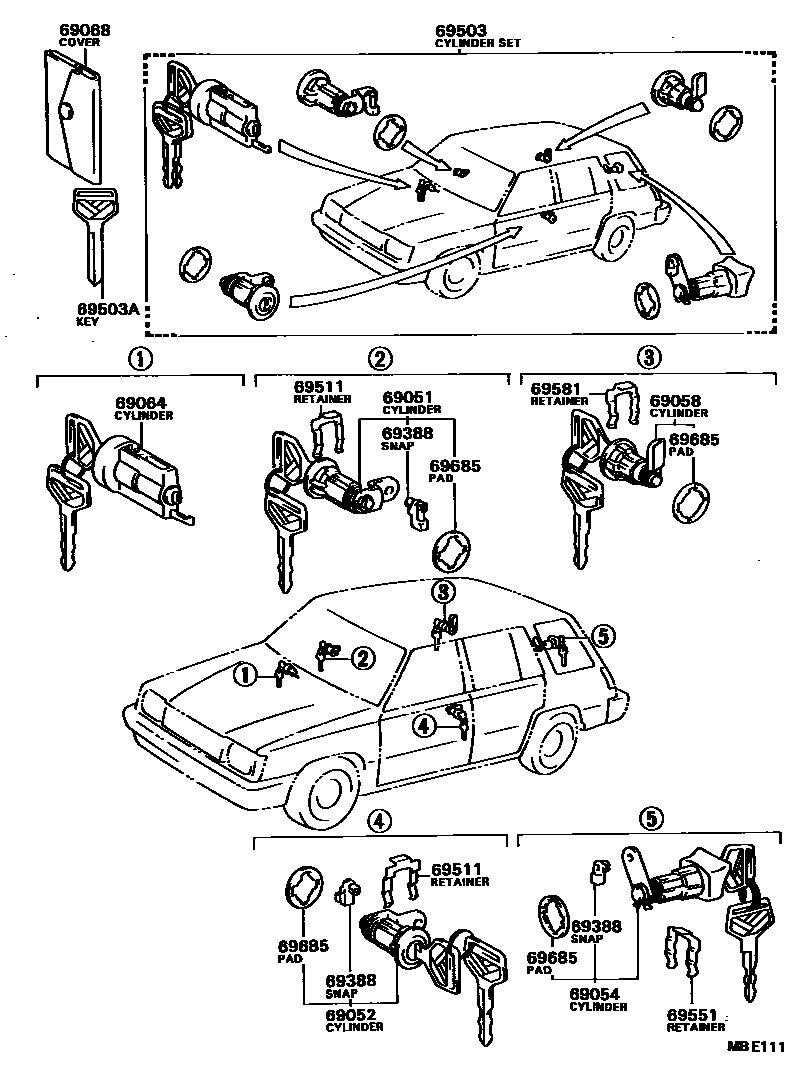

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-16030iAL25198208-198801

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-16030iAL25198208-198801

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-16110iAL25198208-198606

sub69055-16111

main69055-16111iAL25198606-198801

sub69055-16120

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16050iAL25198208-198801

sub69058-60040

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12120iAL25198704-198801

sub69057-12130

main69057-16040iAL25198208-198704

sub69057-16061

69068COVER SUB-ASSY, KEY

main69555-17010iAL25198408-198801

main69555-20010iAL25198208-198408

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iAL25198208-198801

FR RH DOOR,BACK DOOR

main69759-24090iAL25198208-198801

FR LH DOOR

69503CYLINDER SET, LOCK

main69005-16170iAL25198208-198704

sub69005-16150

main69005-16171iAL25198704-198801

sub69005-16151

69503AKEY, BLANK

main90999-00085iAL25198208-198801

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAL25198208-198801

69551RETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iAL25198208-198408

main69561-16030iAL25198408-198801

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iAL25198208-198801

69685PAD, LOCK CYLINDER

main69513-32010iAL25198208-198801

FR DOOR,FUEL

main69563-16010iAL25198208-198801

BACK DOOR

13 parts on this diagram · 1 diagram in section
