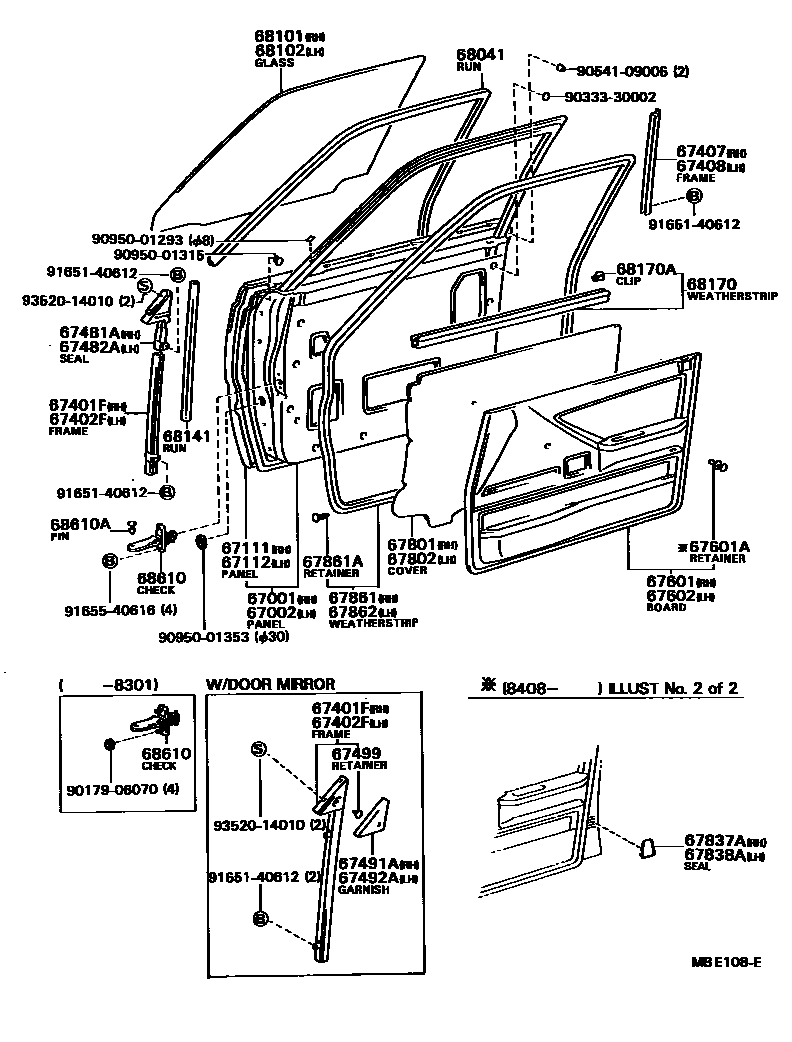

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16160iAL25..AV1198208-198408

main67001-16161iAL25198605-198801

main67001-16220iAL25..AV2198208-198408

main67001-16221iAL25..AV1; AL25..AV2198408-198605

RV-SPECIAL

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16120iAL25..AV1198208-198408

main67002-16121iAL25..AV1198408-198605

main67002-16180iAL25..AV2198208-198408

main67002-16181iAL25..AV1; AL25..AV2198408-198605

RV-SPECIAL

67111PANEL, FRONT DOOR, OUTER RH

main67111-16110iAL25..AV1198208-198508

main67111-16120iAL25..AV2198208-198508

67112PANEL, FRONT DOOR, OUTER LH

main67112-16090iAL25..AV1198208-198508

main67112-16100iAL25..AV2198208-198508

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-16040iAL25198208-198801

main67401-16050iAL25198305-198408

W/DOOR MIRROR

main67401-16070iAL25198408-198604

W/DOOR MIRROR

main67401-16080iAL25198604-198801

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-16040iAL25198208-198801

main67402-16050iAL25198305-198408

W/DOOR MIRROR

main67402-16070iAL25198408-198604

W/DOOR MIRROR

main67402-16080iAL25198604-198801

W/DOOR MIRROR

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16030iAL25198208-198801

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16030iAL25198208-198801

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16070iAL25198208-198801

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-16040iAL25198208-198801

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16030iAL25198408-198801

main67491-16040iAL25198305-198408

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16030iAL25198408-198801

main67492-16040iAL25198305-198408

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iAL25198305-198801

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-16400-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67610-16400-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67610-16420-01iAL25..6F..CBR198605-198801

AV1 SPECIAL,BLACK,BLACK,TRIM2#

main67610-16420-13iAL25..6F..CBR198408-198605

AV1 SPECIAL,GRAY,GRAY,TRIM1#

main67610-16530-03iAL25..AV2198408-198605

GRAY,GRAY,TRIM1#

main67610-16530-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67610-16570-03iAL25..AV1198408-198605

GRAY,GRAY,TRIM1#

main67610-16720-03iAL25..AV2198605-198801

GRAY,GRAY,TRIM2#

main67610-16720-05iAL25..AV2198605-198801

BEIGE,BEIGE,TRIM4#

main67610-16730-03iAL25..AV1198605-198801

GRAY,GRAY,TRIM2#

main67610-16740-03iAL25..AV1198605-198801

RV-SPECIAL,GRAY,GRAY,TRIM2#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020×22iAL25198408-198801

TYPE A

main67771-16020×22iAL25198208-198408

main67771-23010×2iAL25198408-198801

TYPE C

main67771-30060×2iAL25198408-198801

TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-16280-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67620-16280-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67620-16300-01iAL25..6F..CBR198605-198801

AV1 SPECIAL,BLACK,BLACK,TRIM2#

main67620-16300-13iAL25..6F..CBR198408-198605

AV1 SPECIAL,GRAY,GRAY,TRIM1#

main67620-16410-03iAL25..AV2198408-198605

GRAY,GRAY,TRIM1#

main67620-16410-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67620-16450-03iAL25..AV1198408-198605

GRAY,GRAY,TRIM1#

main67620-16600-03iAL25..AV2198605-198801

GRAY,GRAY,TRIM2#

main67620-16600-05iAL25..AV2198605-198801

BEIGE,BEIGE,TRIM4#

main67620-16610-03iAL25..AV1198605-198801

GRAY,GRAY,TRIM2#

main67620-16620-03iAL25..AV1198605-198801

RV-SPECIAL,GRAY,GRAY,TRIM2#

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-16070iAL25198208-198408

main67831-16080iAL25198408-198801

main67831-16090iAL25198304-198801

COLD SPEC

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-16090iAL25198304-198801

COLD SPEC

main67832-16070iAL25198208-198408

main67832-16080iAL25198408-198801

67837ASEAL, FRONT DOOR VENT, RH

main67837-16010iAL25198208-198801

COLD SPEC

67838ASEAL, FRONT DOOR VENT, LH

main67838-16010iAL25198208-198801

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16100iAL25198208-198408

COLD SPEC

main67861-16160iAL25198208-198801

main67861-16180iAL25198408-198801

COLD SPEC

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×40iAL25198208-198801

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16100iAL25198208-198408

COLD SPEC

main67862-16160iAL25198208-198801

main67862-16180iAL25198408-198801

COLD SPEC

68041RUN SUB-ASSY, FRONT DOOR GLASS

main68141-16050×2iAL25198208-198408

main68141-16060×2iAL25198305-198408

W/DOOR MIRROR

main68141-16120×2iAL25198408-198801

W/DOOR MIRROR

main68141-16140×2iAL25198408-198801

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16100iAL25198208-198801

main68111-16120iAL25198305-198801

main68111-16150iAL25..AV2198511-198605

WHITE LIMITED,*TEM,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16100iAL25198208-198801

main68112-16120iAL25198305-198801

main68112-16150iAL25..AV2198511-198605

WHITE LIMITED,*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68143-16020×2iAL25198208-198408

W/O DOOR MIRROR

main68143-16030×2iAL25198408-198801

W/O DOOR MIRROR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16060iAL25198208-198801

RH

main68170-16070iAL25198305-198801

RH,W/DOOR MIRROR

main68220-16050iAL25198208-198801

LH

main68220-16060iAL25198305-198801

LH,W/DOOR MIRROR

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×12iAL25198208-198801

68610CHECK ASSY, FRONT DOOR

main68610-16030×2iAL25198208-198801

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010×2iAL25198401-198507

main68617-22010×2iAL25198208-198401

main68617-90A00×2iAL25198507-198801

9017906070

main90179-06070

9033330002

main90333-30002

9054109006

main90541-09006

9095001293

main90950-01293

9095001315

main90950-01315

9095001353

main90950-01353

9165140612

main91651-40612

9165540616

main91655-40616

9352014010

main93520-14010

40 parts on this diagram · 2 diagrams in section
