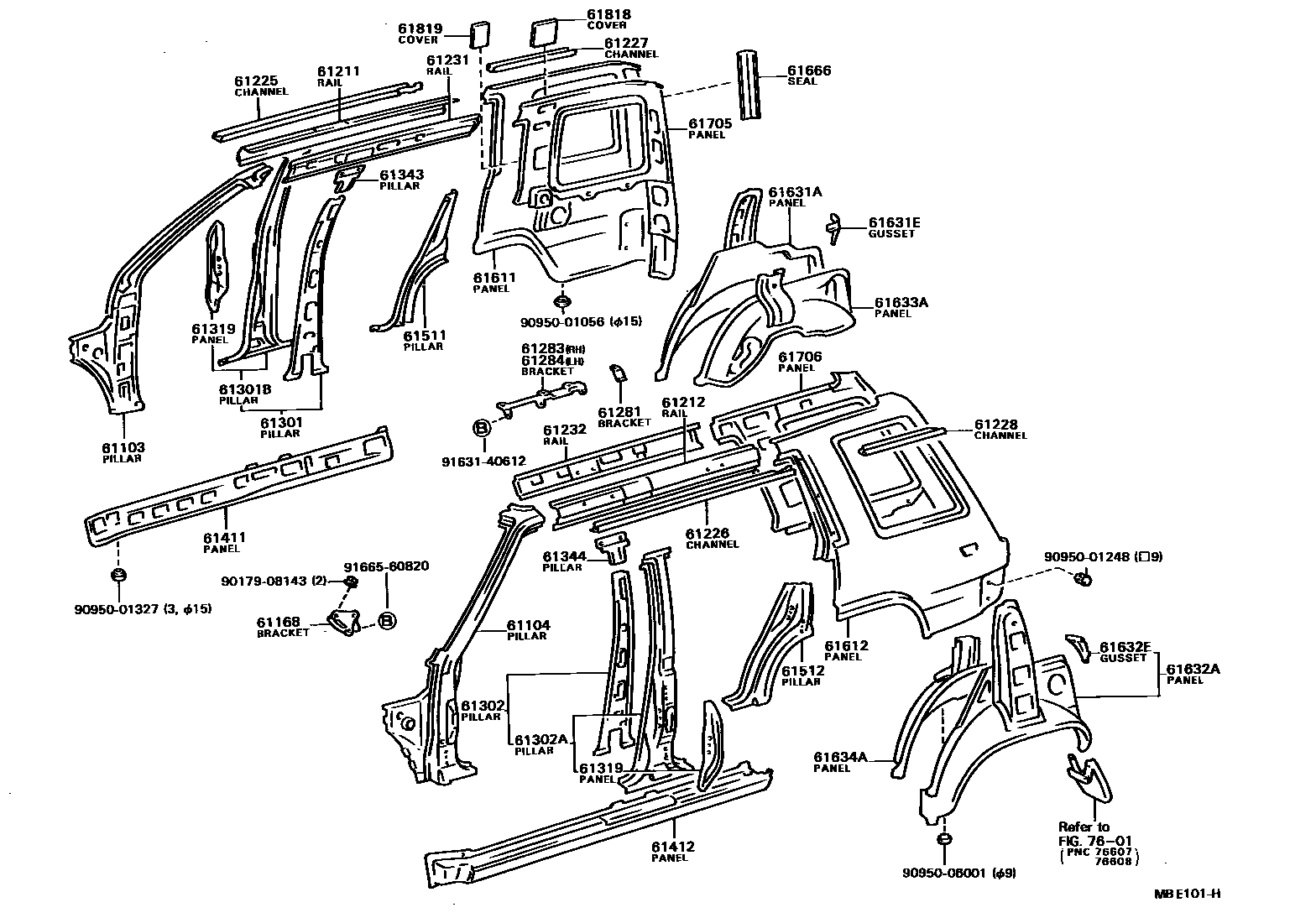

SIDE MEMBER
61103PILLAR SUB-ASSY, FRONT BODY, RH
W/SUN ROOF
61104PILLAR SUB-ASSY, FRONT BODY, LH
RV-SPECIAL,W/SUN ROOF
61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61225CHANNEL, ROOF DRIP, CENTER RH
61226CHANNEL, ROOF DRIP, CENTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61301BPILLAR, CENTER BODY, OUTER RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61302APILLAR, CENTER BODY, OUTER LH
61319PANEL, CENTER BODY PILLAR FINISH
RH
LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61666SEAL, QUARTER PANEL
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61818COVER, ROOF SIDE, INNER UPPER
61819COVER, ROOF SIDE, INNER LOWER
7601MUDGUARD & SPOILER
9017908143
main90179-08143
9095001056
main90950-01056
9095001248
main90950-01248
9095001327
main90950-01327
9095006001
main90950-06001
9163140612
main91631-40612
9166560820
main91665-60820
46 parts on this diagram · 1 diagram in section
