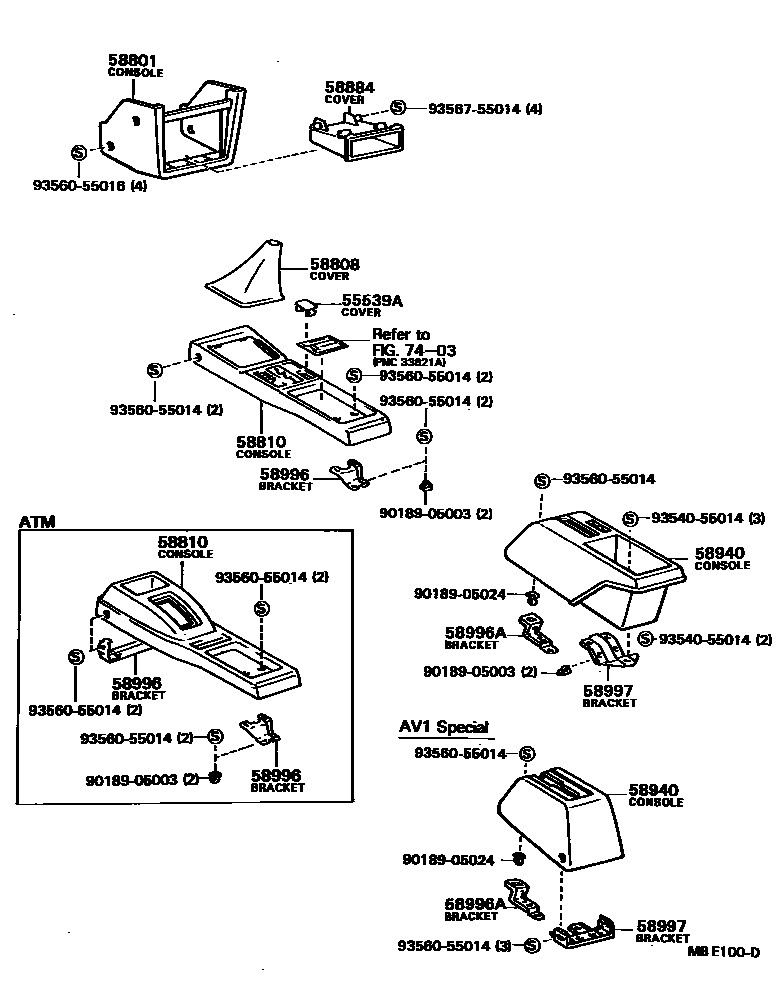

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58801CONSOLE SUB-ASSY, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
58810CONSOLE ASSY
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
58884COVER, STEREO OPENING
sub55521-16030
58940CONSOLE ASSY, REAR
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
FR
RR
RR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
AV1 SPECIAL
7403
9018905003
main90189-05003
9018905024
main90189-05024
9354055014
main93540-55014
9356055014
main93560-55014
9356055016
main93560-55016
9356755014
main93567-55014
16 parts on this diagram · 3 diagrams in section
