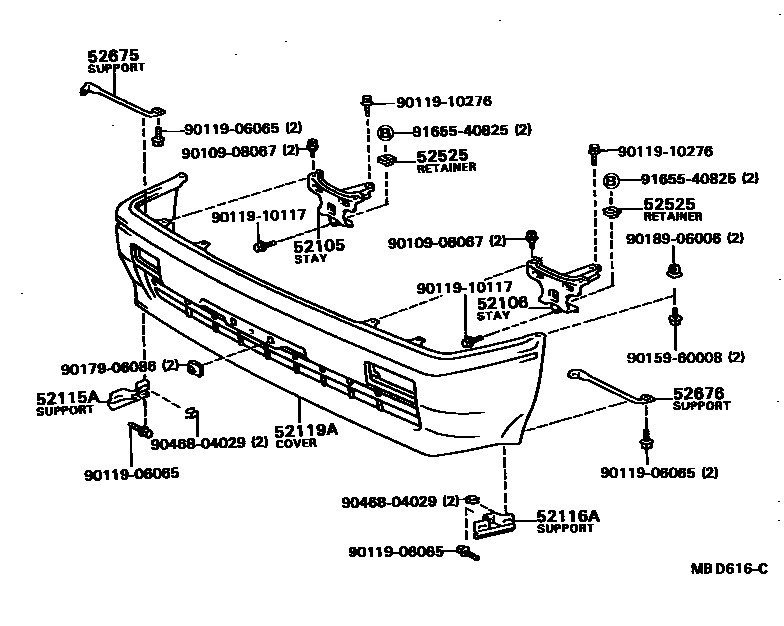

FRONT BUMPER & BUMPER STAY
52105STAY SUB-ASSY, FRONT BUMPER, RH
52106STAY SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
DARK GRAY,GRAY
OFF BLACK,GRAY
BLACK
BLUE-M,BLUE,2J6
DARK BROWN-M,BROWN,2R7
DARK GREEN,GREEN,2J9
WHITE LIMITED,WHITE,WHITE
BLUE-M,GRAYISH BLUE M,24B
BROWN-M,BROWN METALLIC,25B
DARK GREEN-M,PARK GREEN METALLIC,2T4
GREEN-M,GREEN METALLIC,2Y6 ,26B
BLACK
52525RETAINER, FRONT BUMPER, LOWER CENTER
52675SUPPORT, FRONT BUMPER LOWER SIDE, RH
52676SUPPORT, FRONT BUMPER LOWER SIDE, LH
9010908067
main90109-08067
9011906065
main90119-06065
9011910117
main90119-10117
9011910276
main90119-10276
9015960008
main90159-60008
9017906086
main90179-06086
9018906006
main90189-06006
9046804029
main90468-04029
9165540825
main91655-40825
17 parts on this diagram · 3 diagrams in section
