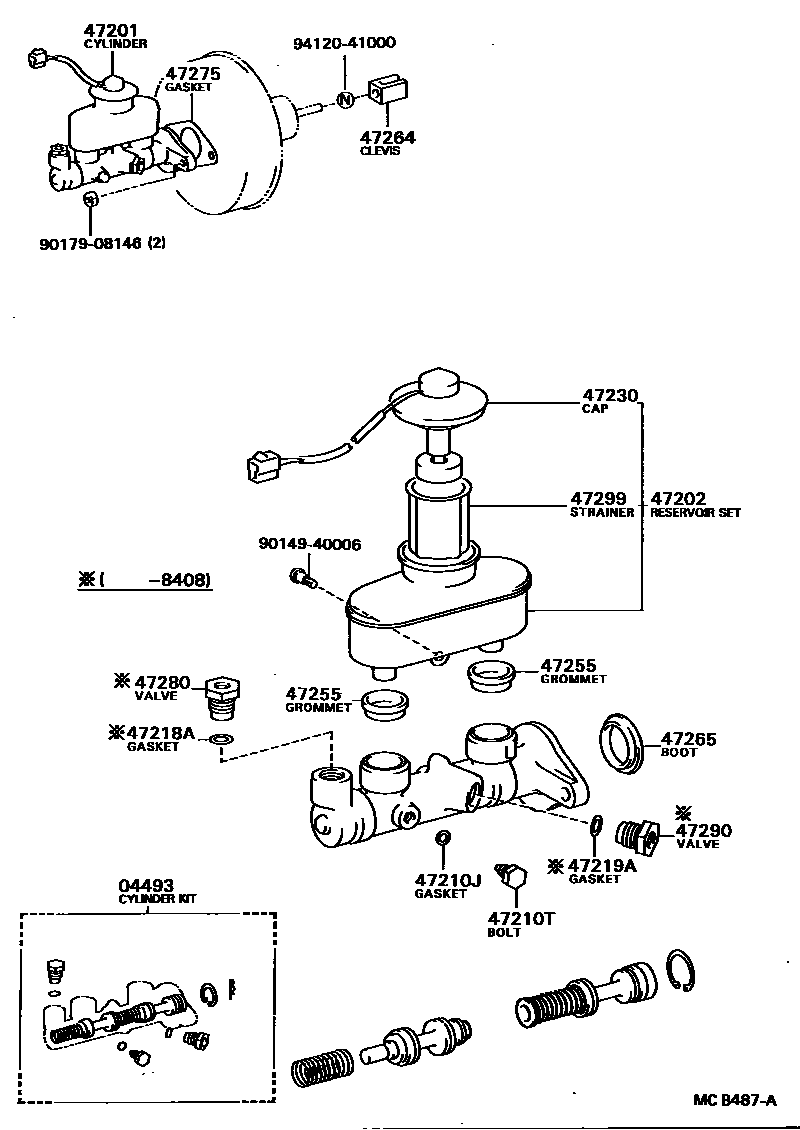

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-16020iAL25198208-198801

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16060iAL25198208-198408

sub47207-16020

sub84460-12021

main47201-16100iAL25198408-198801

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-16040iAL25198208-198801

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAL25198208-198801

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAL25198208-198801

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAL25198208-198408

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAL25198208-198408

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12021iAL25198208-198801

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAL25198208-198801

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAL25198208-198801

47265BOOT, MASTER CYLINDER

main47265-20050iAL25198208-198801

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAL25198208-198801

sub47275-26010

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-30030iAL25198208-198408

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47280-30030iAL25198208-198408

sub47280-14010

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAL25198208-198801

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

18 parts on this diagram · 1 diagram in section
