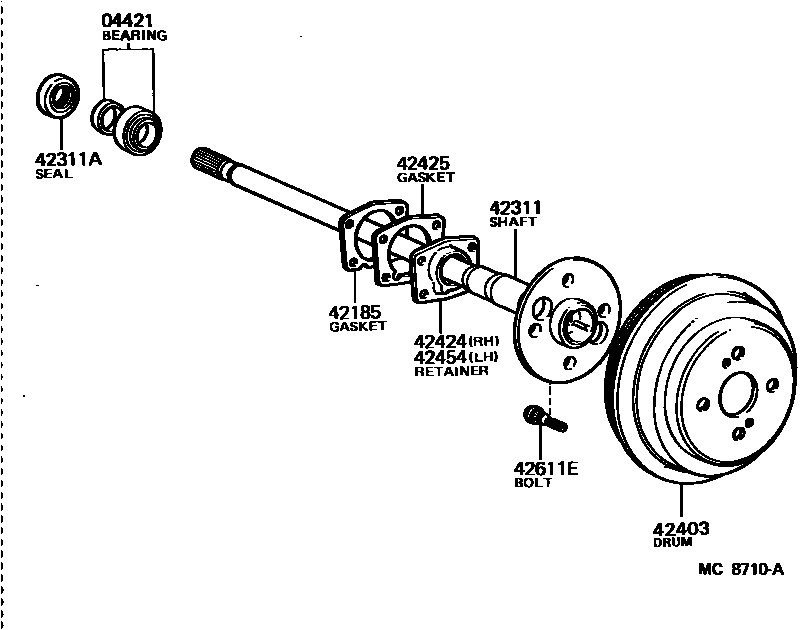

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2iAL25198208-198801

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iAL25198208-198801

42311SHAFT, REAR AXLE

main42311-16030×2iAL25198208-198801

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iAL25198208-198801

42403DRUM SUB-ASSY, REAR BRAKE

main42431-16030×2iAL25198208-198408

main42431-16031×2iAL25198408-198801

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010iAL25198208-198801

42425GASKET, REAR AXLE BEARING RETAINER

main42425-20010×2iAL25198208-198801

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010iAL25198208-198801

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAL25198208-198305

main90942-02047×8iAL25198305-198801

9 parts on this diagram · 1 diagram in section
